Yangchun Electric Motor - TP30-S Series
Couldn't load pickup availability
Brand: Taizhou Yangchun Electric Motor Co., Ltd.
Model: TP30-S Series

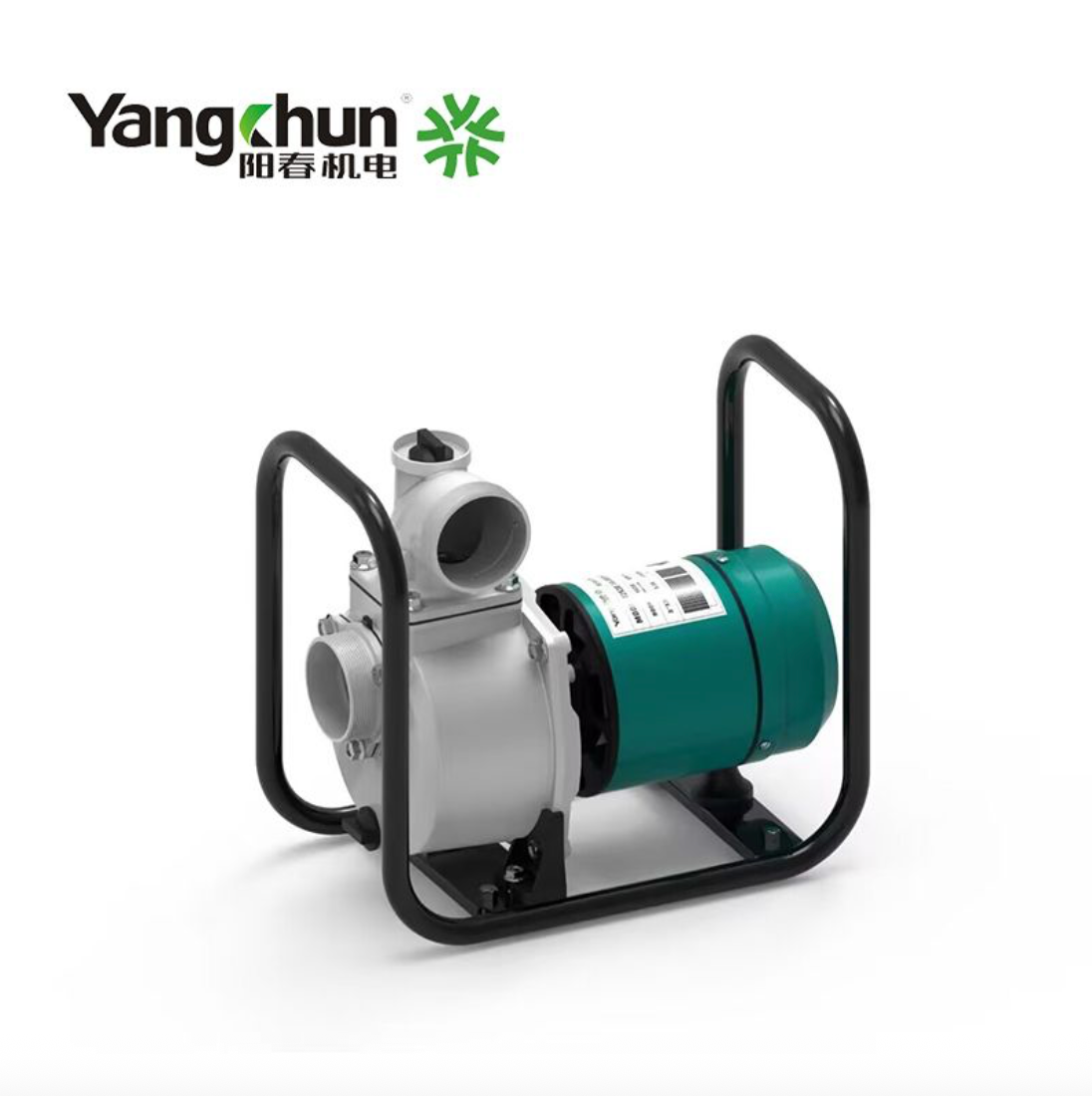

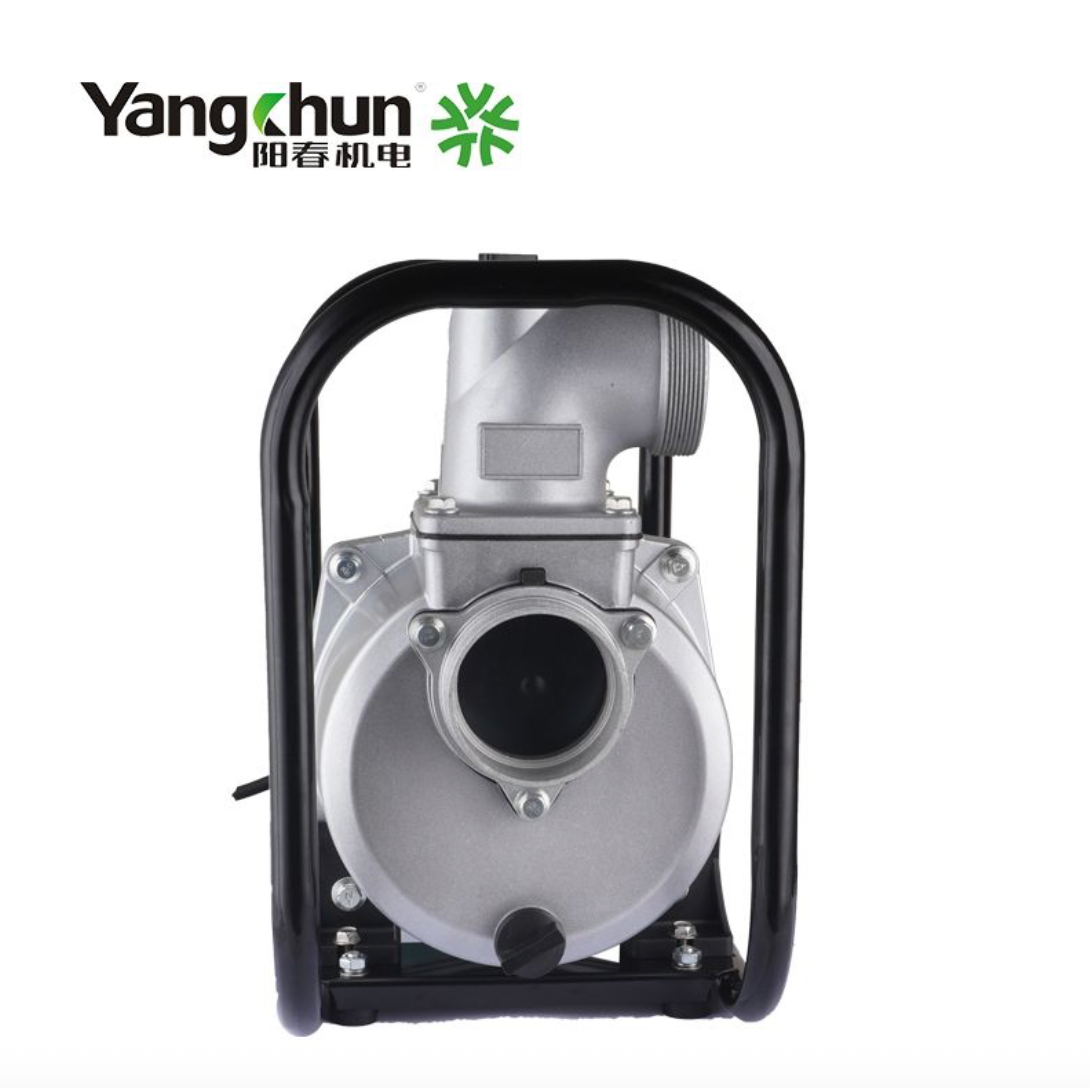

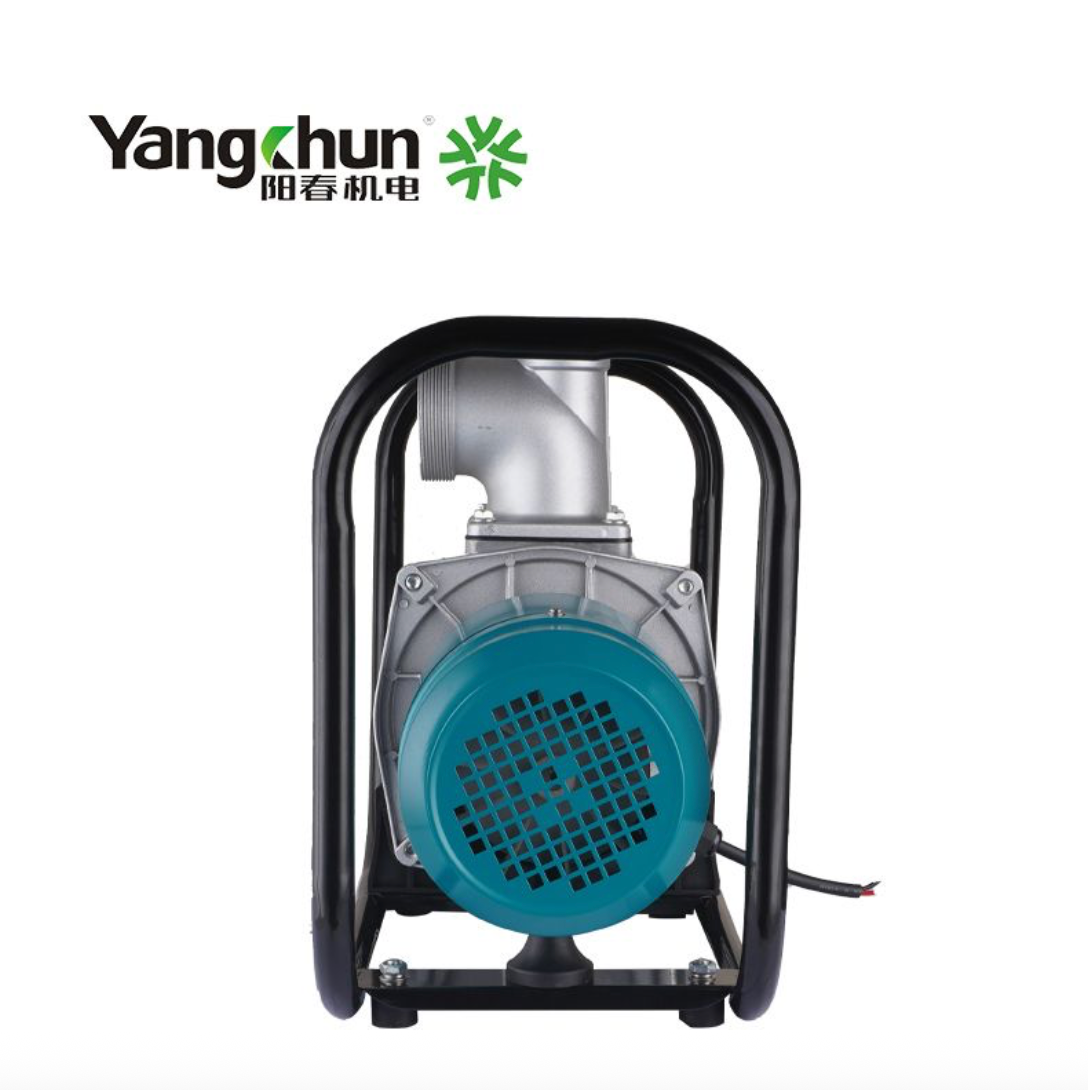

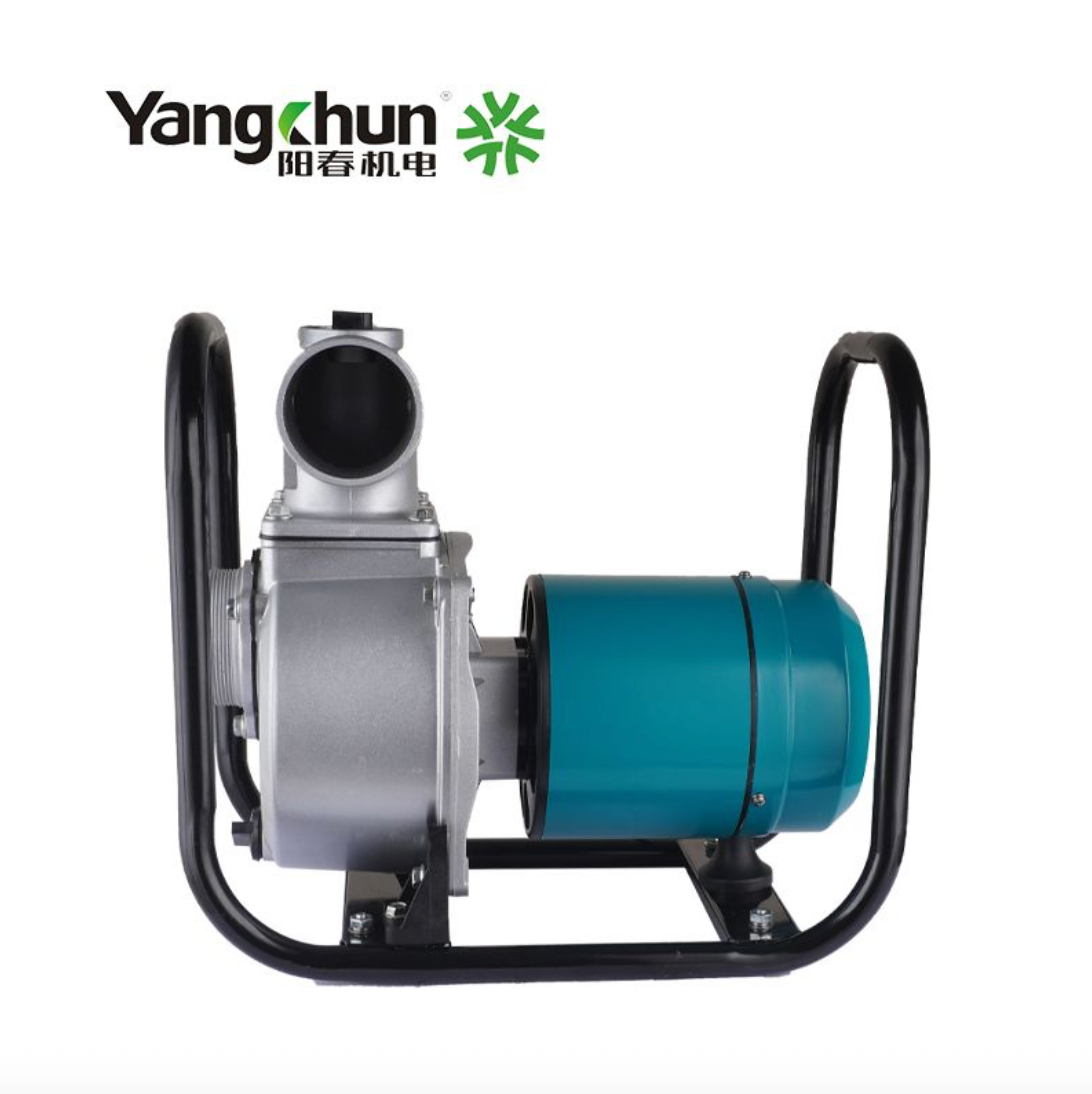

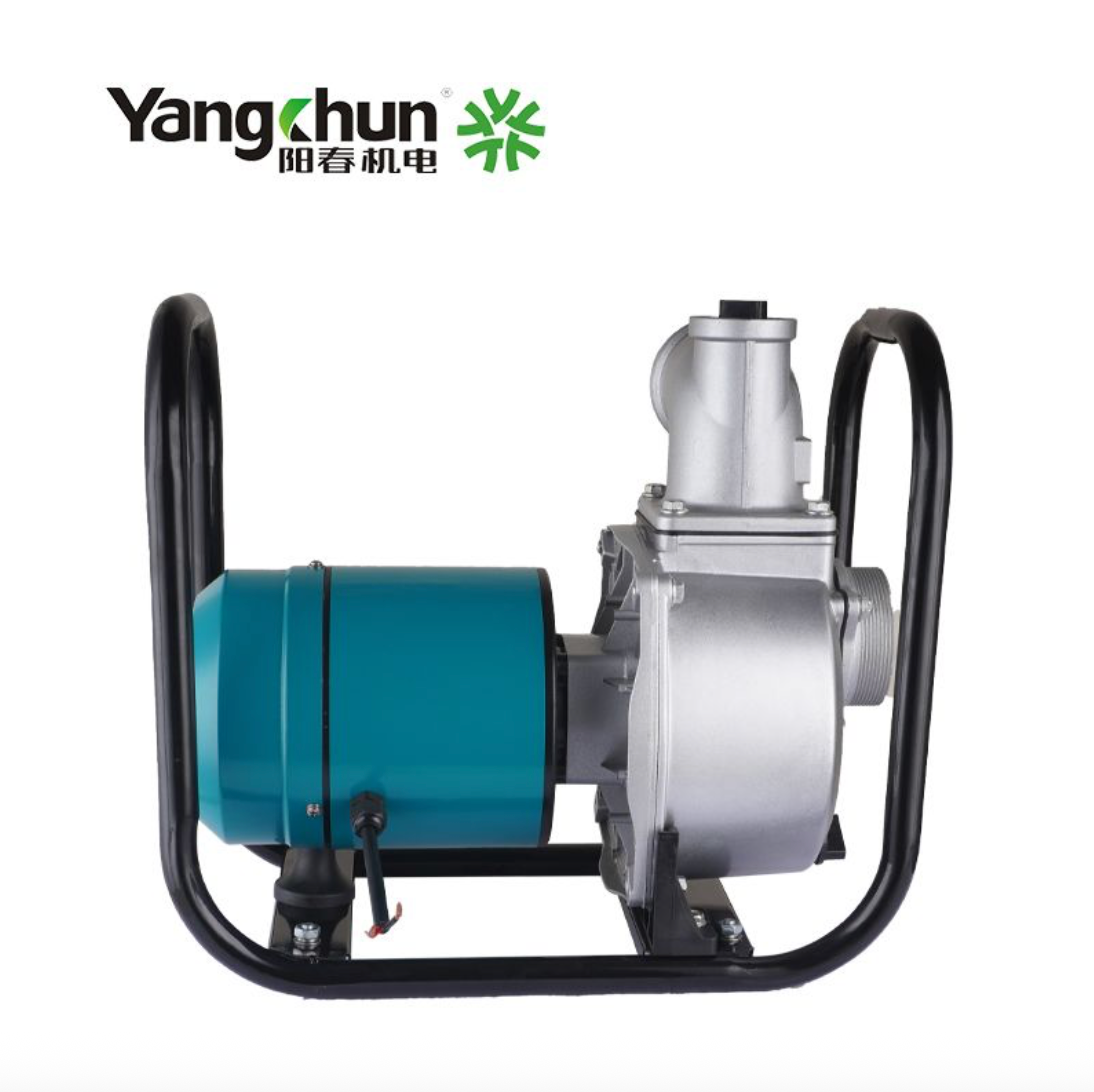

The TP30-S Series Solar Water Pump is a high-performance, energy-efficient solution designed for clean water transportation and irrigation. Powered by solar energy, this pump is ideal for areas without access to electricity, making it a reliable choice for domestic water supply, agricultural irrigation, and solar irrigation systems. Its advanced design incorporates permanent magnet brushless motors, self-priming functionality, and robust mechanical seals, ensuring durability and efficiency in diverse operating conditions.
---
* Minimum Order Quantity (MOQ) of 10 units *
Key Features
Advanced Solar-Powered Technology
- Permanent Magnet Brushless Motors: The motor's efficiency is 25% higher than traditional brushed motors, ensuring optimal energy utilization and reduced operational costs.
- Self-Priming Functionality: Equipped with a semi-open impeller, the pump can self-prime, making it suitable for applications where water sources are not directly accessible.
- Wide Operating Range: Capable of handling flow rates up to 500 L/min and delivering heads up to 17 meters, the TP30-S series is versatile for various water pumping needs.
Safe and Reliable Performance
- IP65 Protection Rating: Ensures resistance to dust and water ingress, making it suitable for outdoor use in harsh environments.
- Operating Temperature Range: Functions efficiently in temperatures ranging from -15°C to +60°C, ensuring reliability in extreme climates.
- Automatic Start/Stop Functionality: Equipped with a float switch for automatic operation, reducing manual intervention and improving convenience.
- Soft Start and Frequency Conversion: Protects the motor during startup and ensures smooth operation under varying loads.
User-Friendly Design
- LCD Display: Provides real-time information on the pump’s working status and fault codes, enabling easy monitoring and troubleshooting.
- Durable Construction: Features a single-end mechanical seal, a drive plate for the motor, and an "O" ring for the water pump housing, ensuring leak-proof performance and longevity.
- Optional Oil Filling: Designed with optional oil filling for improved lubrication and extended service life.
---
Product Specifications
Model Options:
- TP30-S900:
- Power: 1.2 HP (0.9 kW) - Maximum Head: 14 meters
- Maximum Flow Rate: 500 L/min (30 m³/h)
- TP30-S1200:
- Power: 1.6 HP (1.2 kW)
- Maximum Head: 17 meters
- Maximum Flow Rate: 500 L/min (30 m³/h)
- Inlet/Outlet Size: 3×3 inches
- Speed Range: 3000–3600 RPM
- NPSH (Net Positive Suction Head): 8 meters
- Operating Temperature Range:
15°C to +60°C
- Protection Rating: IP65
- Communication Interfaces: LCD display for status and fault codes
- Applications: Clean water or liquids with properties similar to water
---
Performance Highlights
-
Efficient Pumping: Delivers consistent performance across a wide range of flow rates and head heights.
- TP30-S900: Flow Rates: 14 m³/h at 10 meters head, reducing gradually to 0 at 14 meters head.
- TP30-S1200: Flow Rates: 17 m³/h at 10 meters head, reducing gradually to 0 at 17 meters head. - Energy Savings: The brushless motor design ensures higher efficiency, reducing energy consumption and operational costs.
---
Applications
- Domestic Use: Ideal for supplying clean water to homes, especially in off-grid areas such as grasslands, pastures, and rural communities.
- Agricultural Irrigation: Suitable for farmland irrigation, ensuring consistent water supply for crops.
- Solar Irrigation Systems: Perfect for solar-powered irrigation projects, promoting sustainable farming practices.
- Water Towers: Efficiently pumps water to elevated storage tanks for gravity-fed distribution systems.
---
Benefits
- High Efficiency: Advanced brushless motor technology ensures maximum energy conversion and minimal losses.
- Durability: Robust construction and IP65 protection rating ensure long-term reliability in challenging environments.
- Ease of Use: Automatic start/stop functionality and LCD display simplify operation and maintenance.
- Versatility: Suitable for a wide range of applications, from domestic water supply to large-scale agricultural irrigation.
- Environmentally Friendly: Powered entirely by solar energy, reducing reliance on fossil fuels and promoting sustainability.
---
Why Choose the TP30-S Series?
- Combines permanent magnet brushless motors, self-priming functionality, and advanced sealing technology for superior performance and durability.
- Backed by rigorous testing and an IP65 protection rating, ensuring safety, reliability, and compliance with global standards.
- Suitable for residential, agricultural, and industrial applications, providing flexibility and value.
- Compact and lightweight design makes it easy to install in remote locations.
---
Upgrade Your Water Pumping System
Invest in the TP30-S Series Solar Water Pump for a reliable, efficient, and eco-friendly water pumping solution.
Order now and let the power of the sun fuel your water needs with Taizhou Yangchun Electric Motor Co., Ltd.
---
