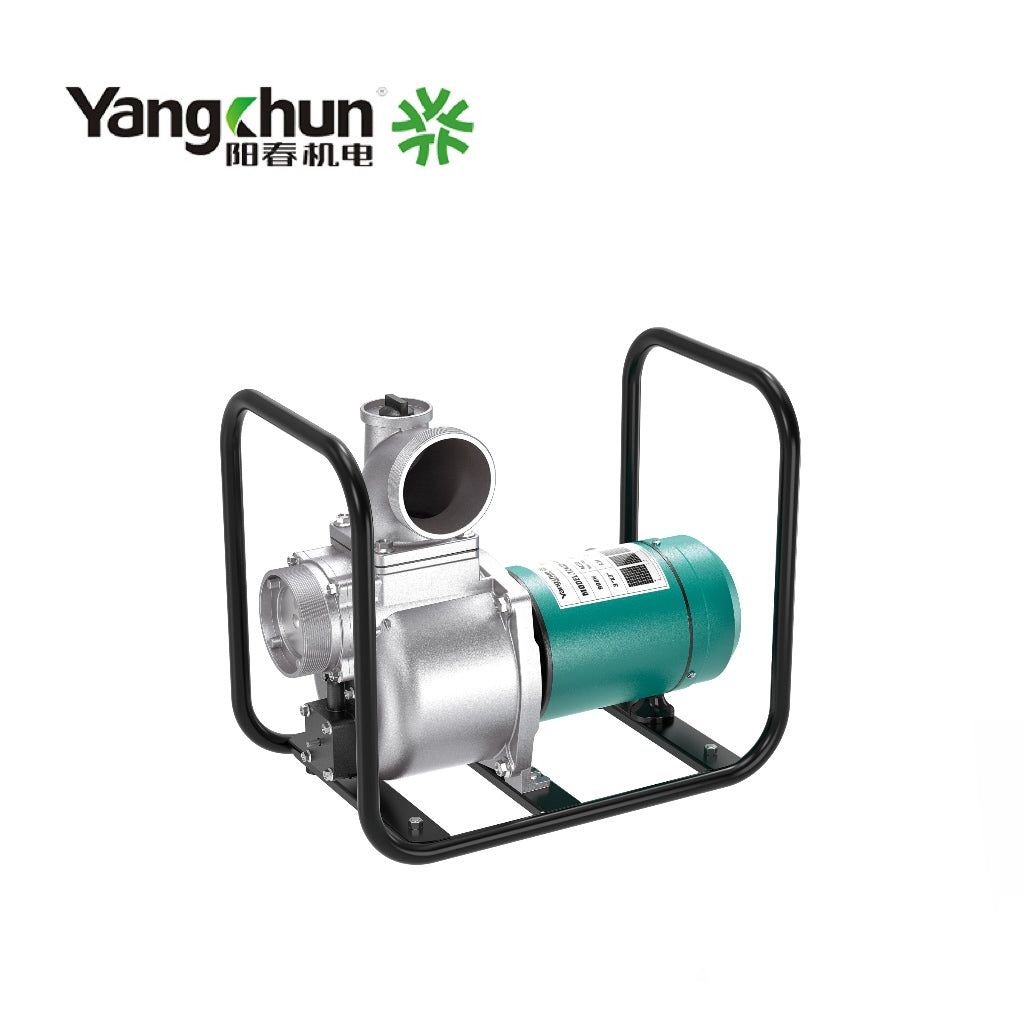

Yangchun Electric Motor Solar Water Pump Series - TP-S Series (TP30-S900 | TP30-S1200)
Couldn't load pickup availability
Yangchun Electric Motor Solar Water Pump Series
Model: TP-S Series (TP30-S900 | TP30-S1200)
---
* Minimum Order Quantity (MOQ) of 10 units *
Overview
The Yangchun Electric Motor TP-S Series Solar Water Pump is a high-performance solution designed for efficient and reliable water pumping in residential, agricultural, and industrial applications. Powered entirely by solar energy, these pumps are ideal for areas with abundant sunlight and limited access to grid electricity. Featuring permanent magnet brushless motors and semi-open impellers, the TP-S series combines cutting-edge technology, durability, and eco-friendly operation to meet diverse water supply needs.
Whether you're looking to irrigate fields, supply water for livestock, or provide clean drinking water, the Yangchun TP-S series ensures consistent performance even in remote locations.
---
Key Features
High Efficiency:
- Optimized for solar energy use, ensuring maximum water output with minimal energy consumption.
- Equipped with advanced MPPT controllers for sinusoidal starting and phase change.
Reliable Performance:
- Built with robust materials, including rust-proof and corrosion-resistant components, stainless steel screws, and permanent magnet rotors.
- Suitable for both shallow and deep wells, depending on the model.
Versatile Applications:
Ideal for irrigation systems, livestock watering, domestic water supply, and drainage systems.
Compact and Durable Design:
- Compact structure ensures easy installation and maintenance.
- Noiseless operation and pollution-free design make it environmentally friendly.
Optional Manual AC/DC Controller:
- Provides flexibility for hybrid power solutions when solar energy is insufficient.
---
Technical Specifications
General Specifications
Model Options:
- TP30-S900
- TP30-S1200
Flow Rate:
- TP30-S900: 500 L/min (30 m³/h)
- TP30-S1200: 500 L/min (30 m³/h)
Maximum Head (Lift):
- TP30-S900: 14m
- TP30-S1200: 17m
Solar Panel Voltage Range:
- TP30-S900: 30–42V
- TP30-S1200: 30–42V
Power Consumption:
- TP30-S900: 900W
- TP30-S1200: 1200W
Outlet Size:
All models: 3" (76mm)
Operating Temperature Range: -20°C to +60°C
---
Applications
- Agriculture: Ideal for irrigation systems and supplying water to crops and livestock.
- Residential Use: Suitable for household water supply, including drinking water and garden irrigation.
- Industrial Use: Perfect for drainage systems and water circulation in remote locations.
- Emergency Water Supply: Ensures reliable water access during power outages or in off-grid areas.
---
Why Choose the Yangchun Electric Motor TP-S Series?
- Eco-Friendly: Harnesses renewable solar energy, reducing reliance on fossil fuels.
- Cost-Effective: Low operating costs with no fuel or electricity expenses.
- Durability: Designed for long-term use with corrosion-resistant materials and robust construction.
- Versatility: Suitable for a wide range of applications, from small-scale irrigation to large-scale water supply systems.
---
Order Now
Upgrade your water supply system with the Yangchun Electric Motor TP-S Series Solar Water Pump and experience unparalleled efficiency, reliability, and sustainability. For inquiries and orders, contact SOLAR.ID in Jakarta, Indonesia.
---
From SOLAR.ID of Jakarta, Indonesia
Professional Installation Available all over Indonesia
Professional solar panel installation ensures safety, efficiency, and compliance with warranties and regulations. Experts optimize performance, handle permits, and prevent damage, saving you time and maximizing energy output for long-term savings.
