Lithium Valley Technology - LVE-W15.36Da

Brand: Lithium Valley Technology
Model: LVE-W15.36Da

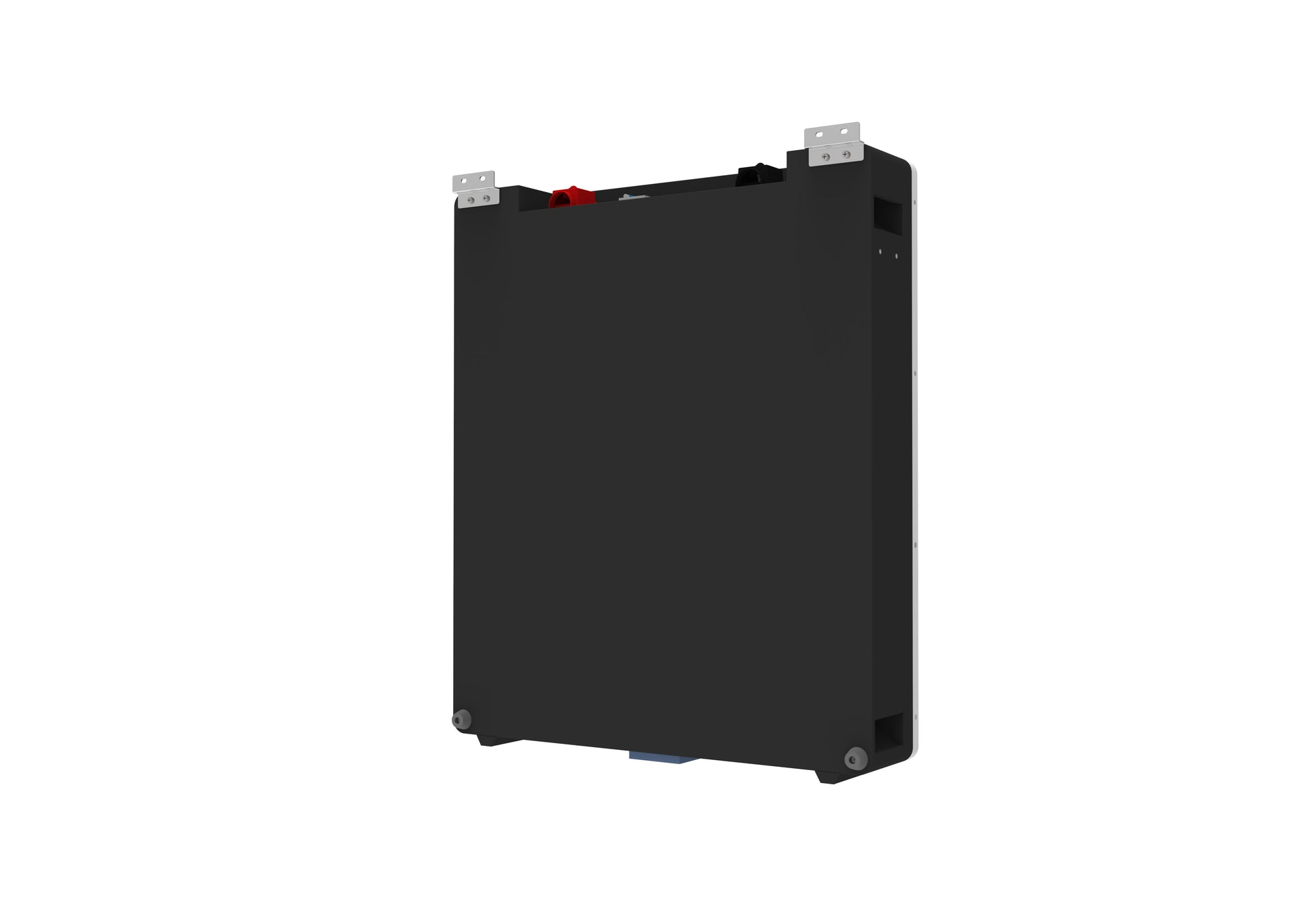

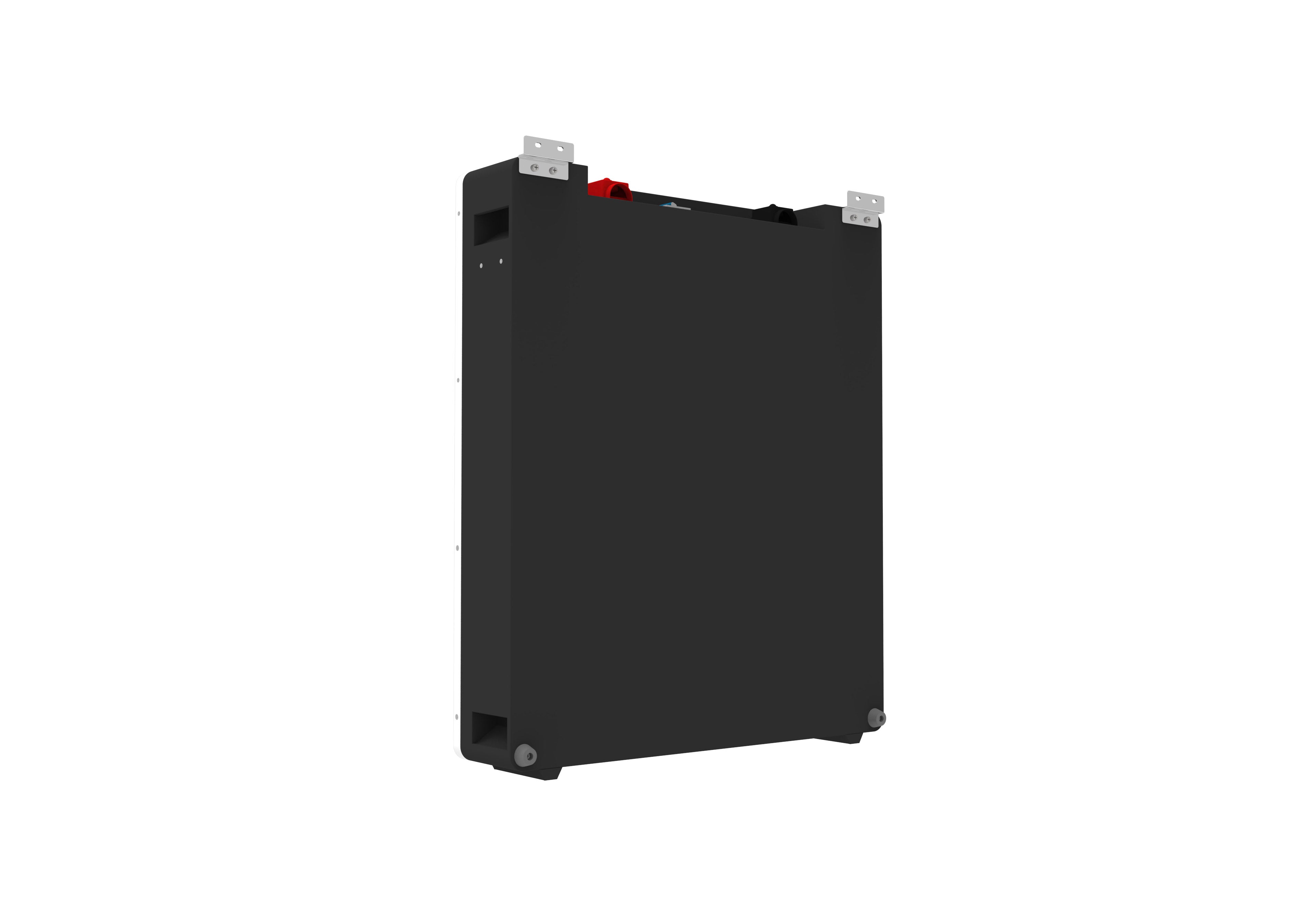

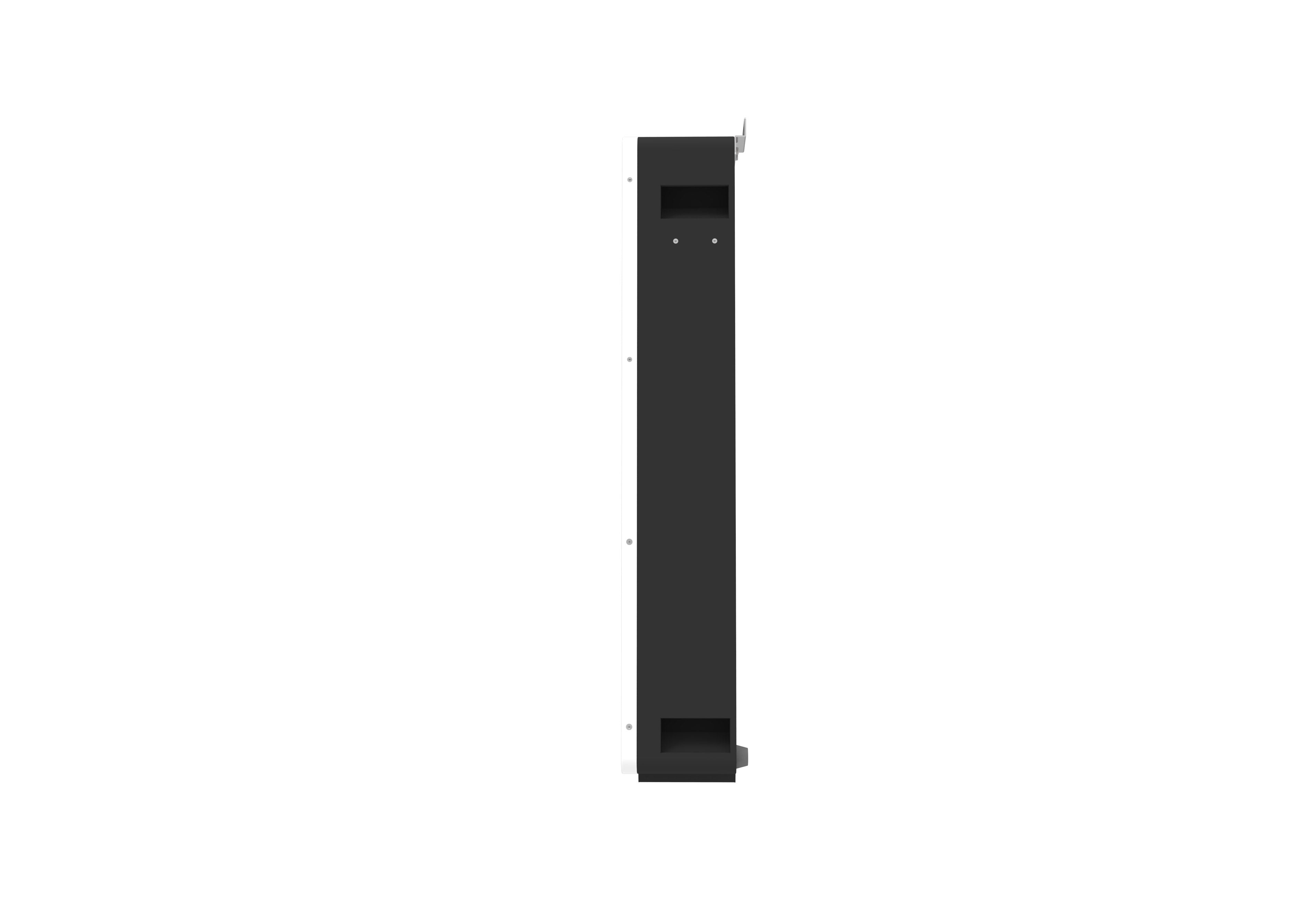

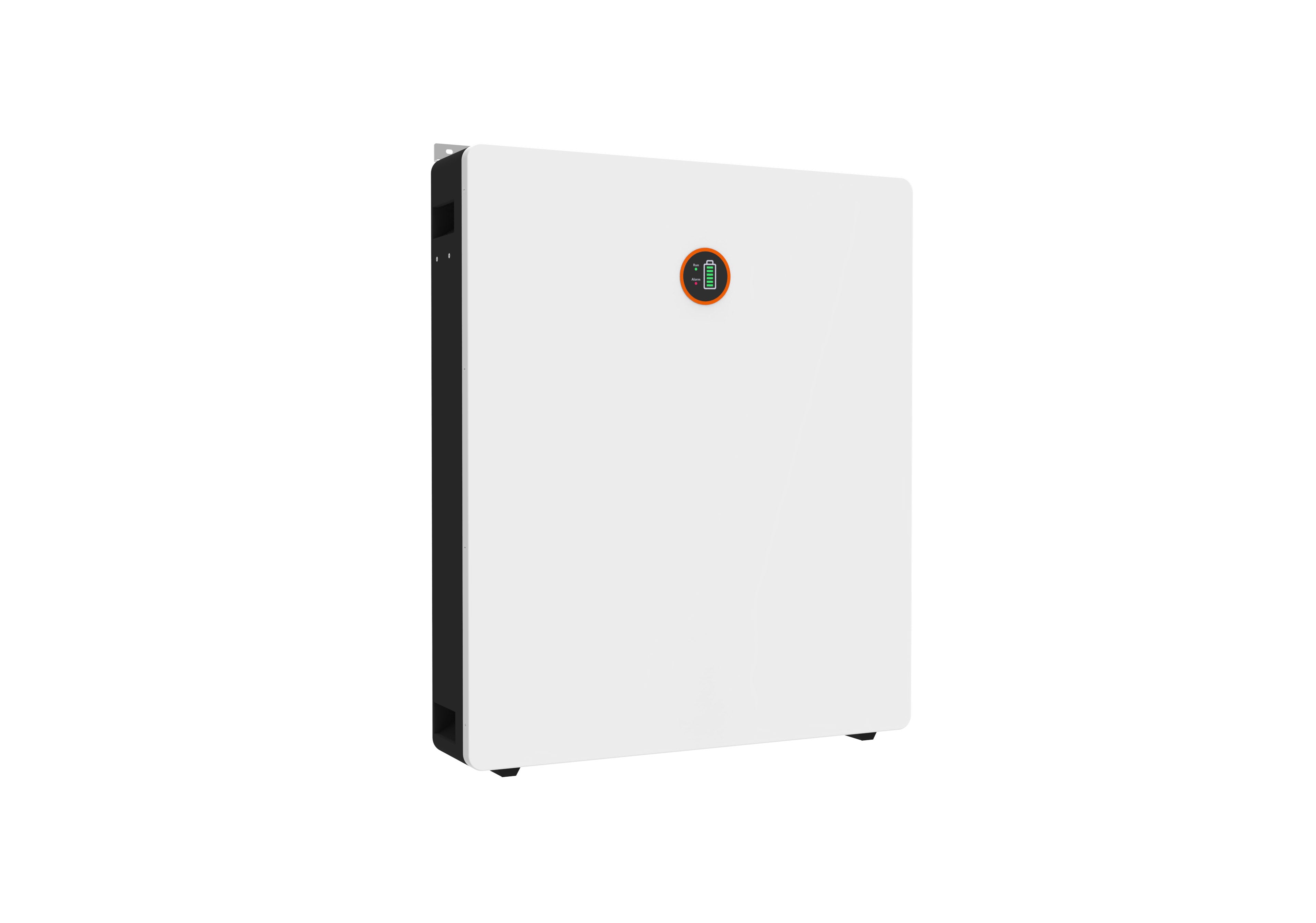

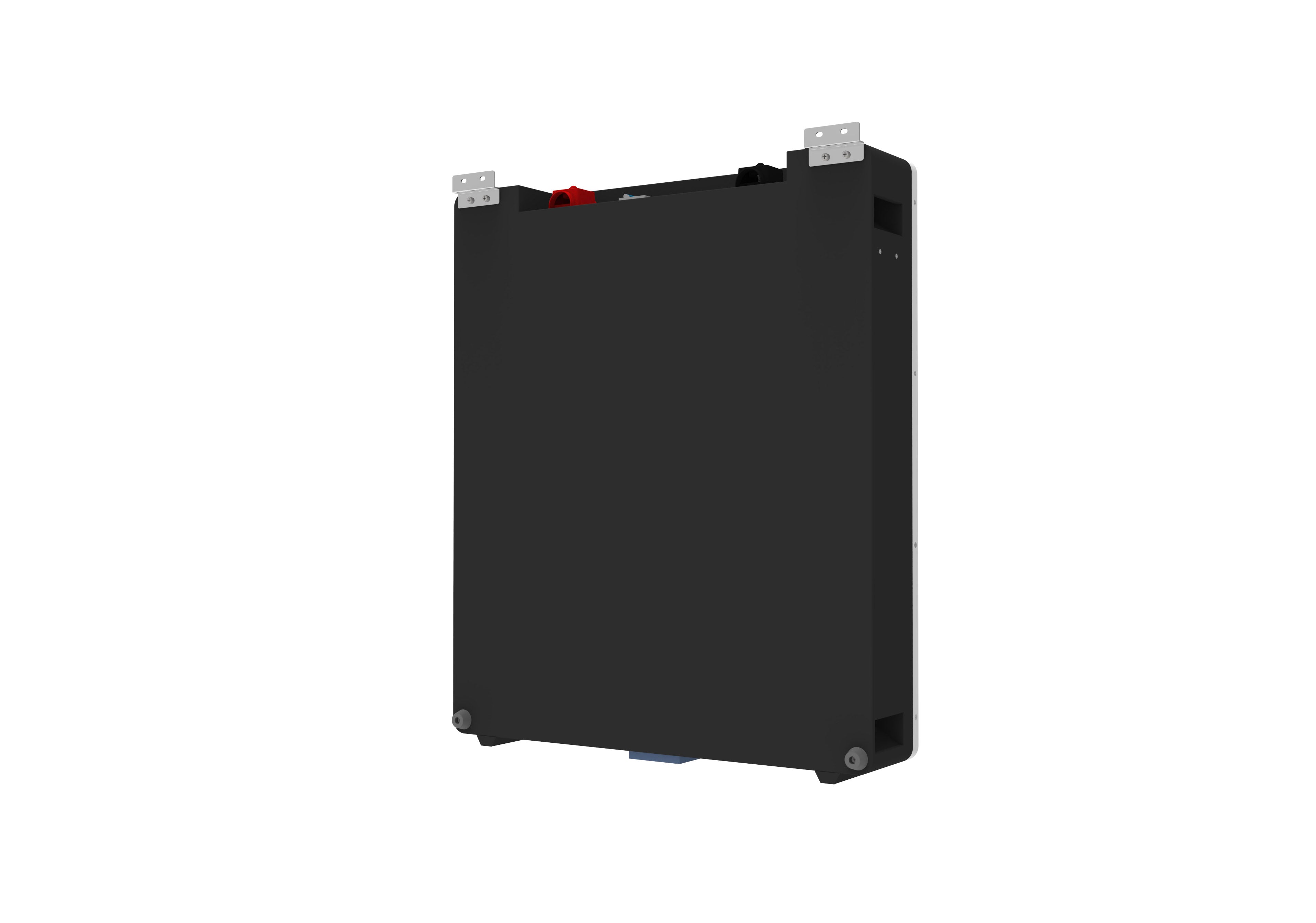

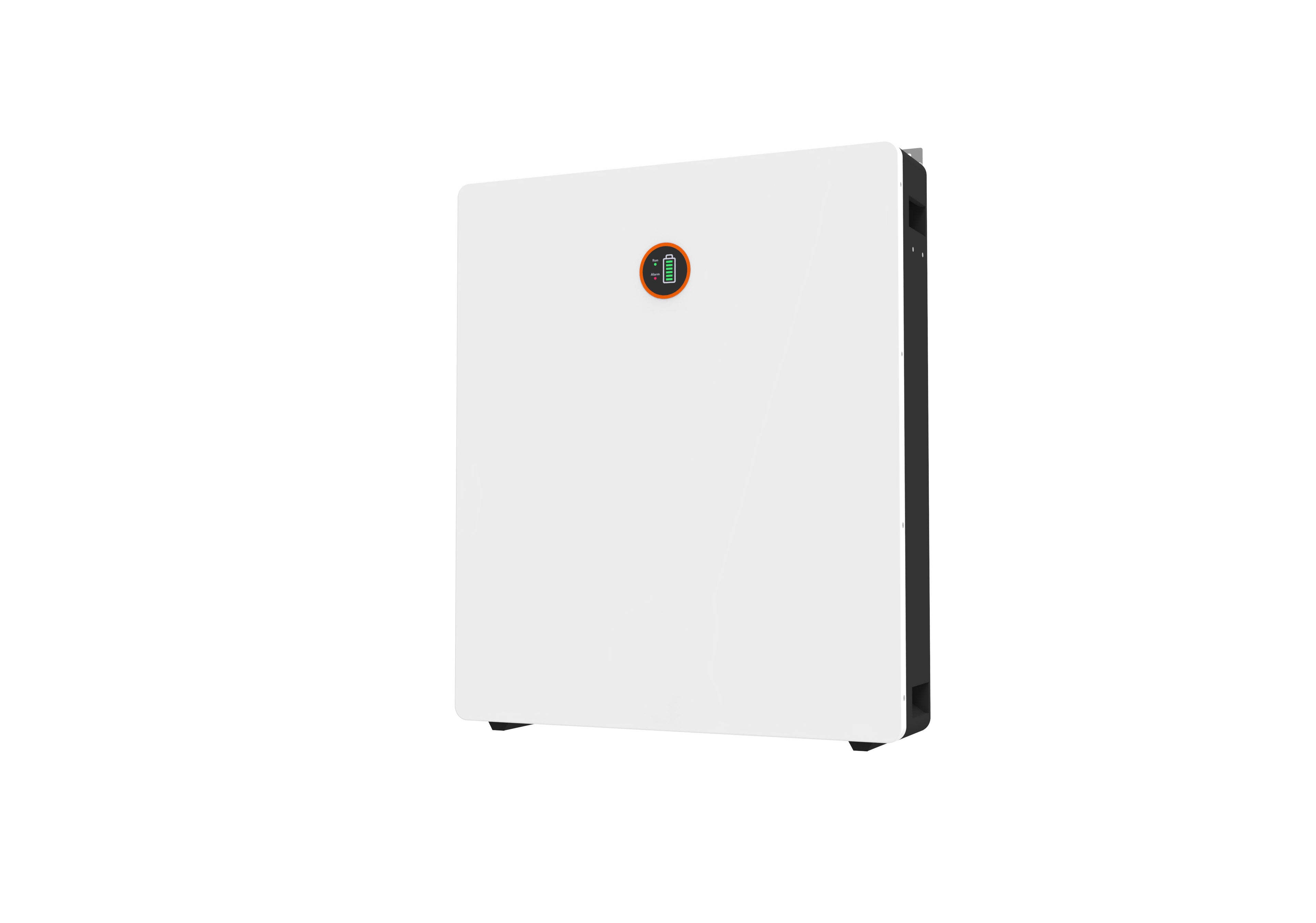

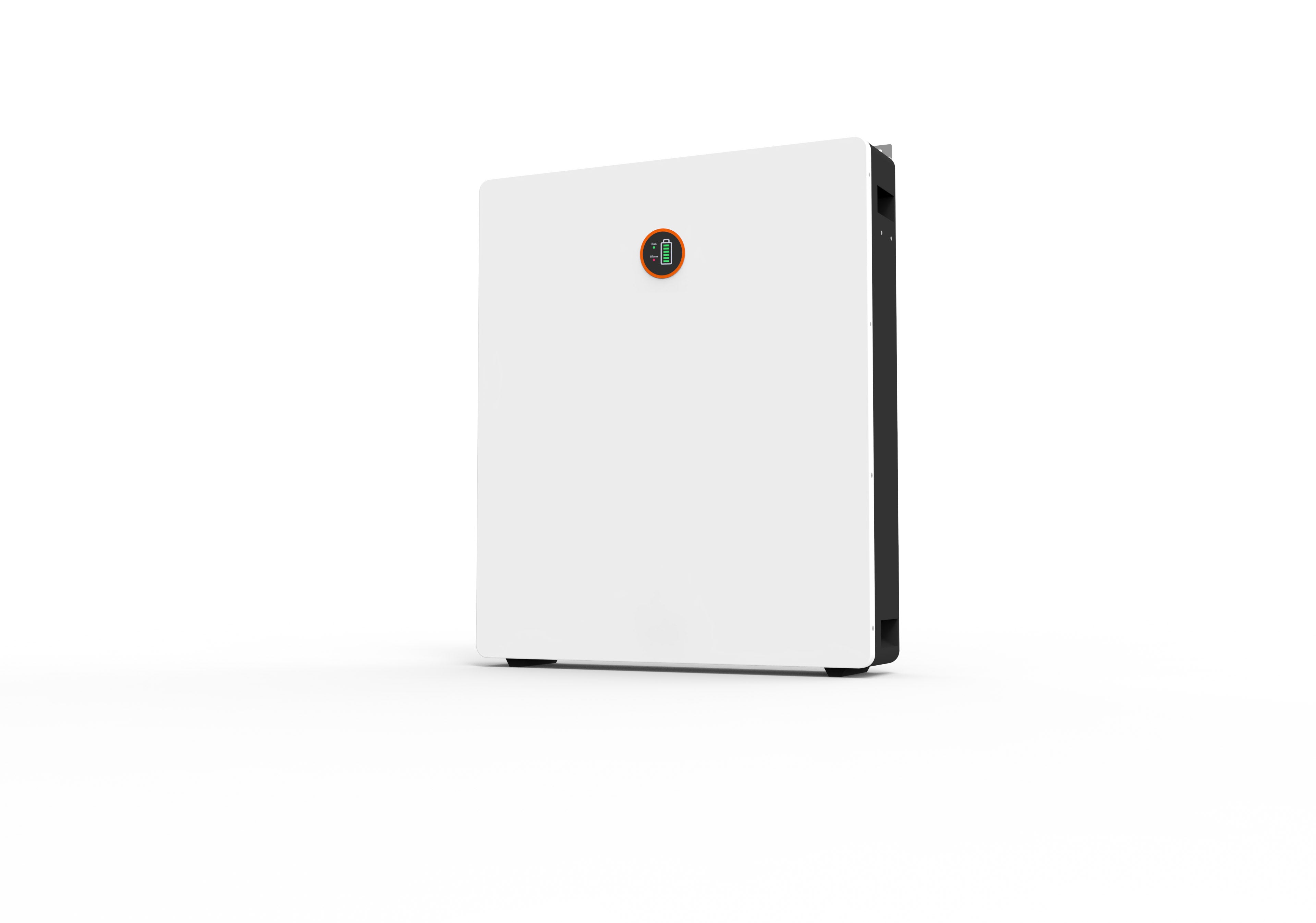

The Lithium Valley Technology LVE-W15.36Da is a high-capacity, wall-mounted lithium iron phosphate (LiFePO4) battery designed for residential and commercial energy storage. With an impressive capacity of 15.36kWh (51.2V, 300Ah), this sleek and compact battery offers a reliable, efficient, and scalable solution for solar energy storage, backup power, and off-grid systems. Its advanced safety features, long lifecycle, and compatibility with various inverters make it an ideal choice for modern homes and businesses seeking energy independence.

---

* Minimum Order Quantity (MOQ) of 10 units *

Key Features

Advanced Energy Storage Technology - High-Quality LiFePO4 Cells: Ensures superior safety, long cycle life (up to 8000 cycles at 80% Depth of Discharge), and environmental sustainability.
- High Energy Density: Delivers 15.36kWh of energy in a compact design (660mm x 820mm x 140mm), making it space-efficient and versatile.
- Expandable Capacity: Supports up to 15 units in parallel, allowing for scalable energy storage solutions tailored to your needs.

Safe and Reliable Performance

- Built-in Fire Safety: Equipped with advanced safeguards such as overcharge, over-discharge, short circuit, and thermal protection.
- Wide Operating Temperature Range:
  - Charge Temperature: 0°C to 55°C
  - Discharge Temperature: -20°C to 60°C
- Protection Rating: IP21 ensures resistance to dust and water ingress, making it suitable for indoor installations.

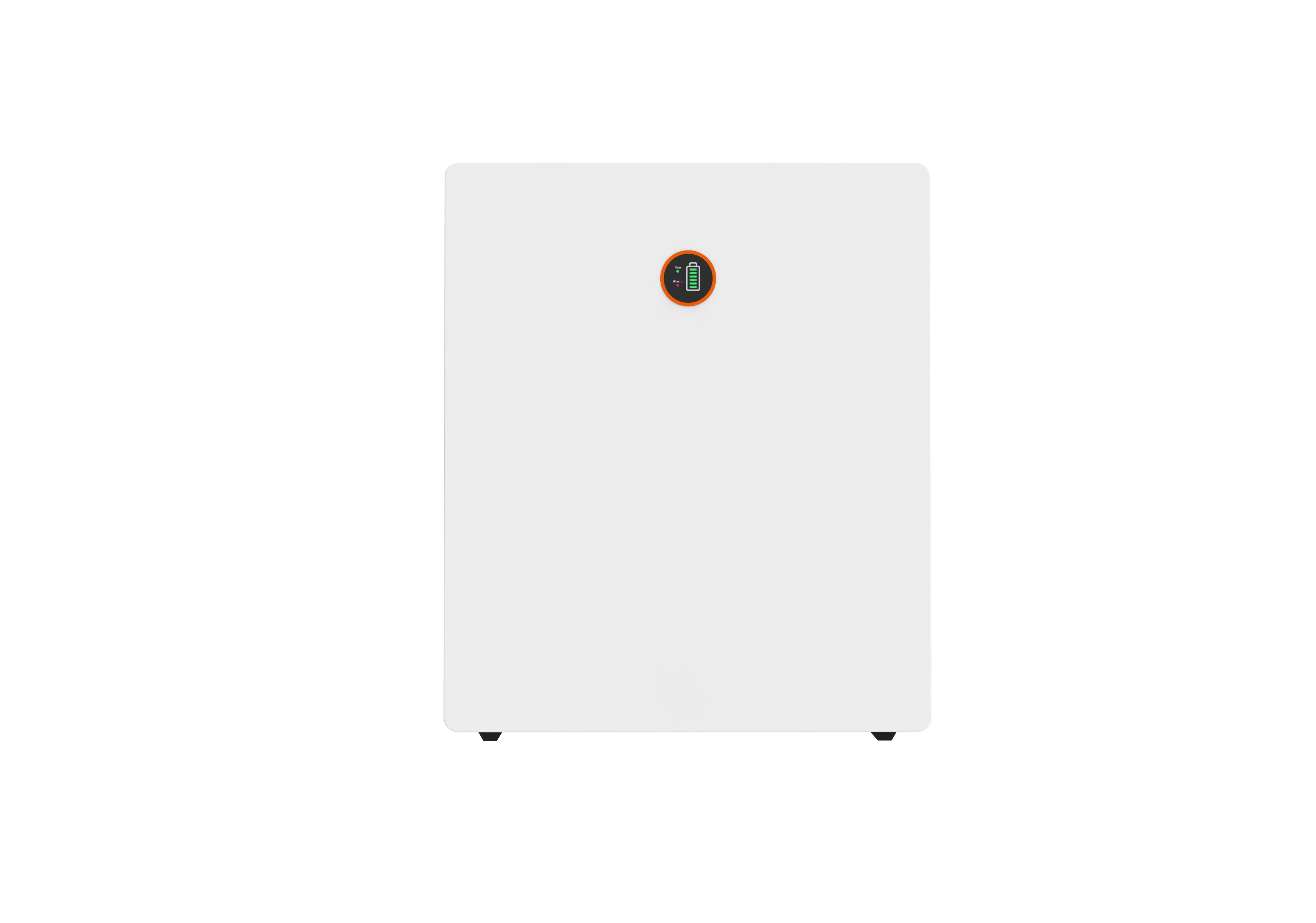

User-Friendly Design - LED Display: Provides real-time information on State of Charge (SOC) and battery status, ensuring easy monitoring.

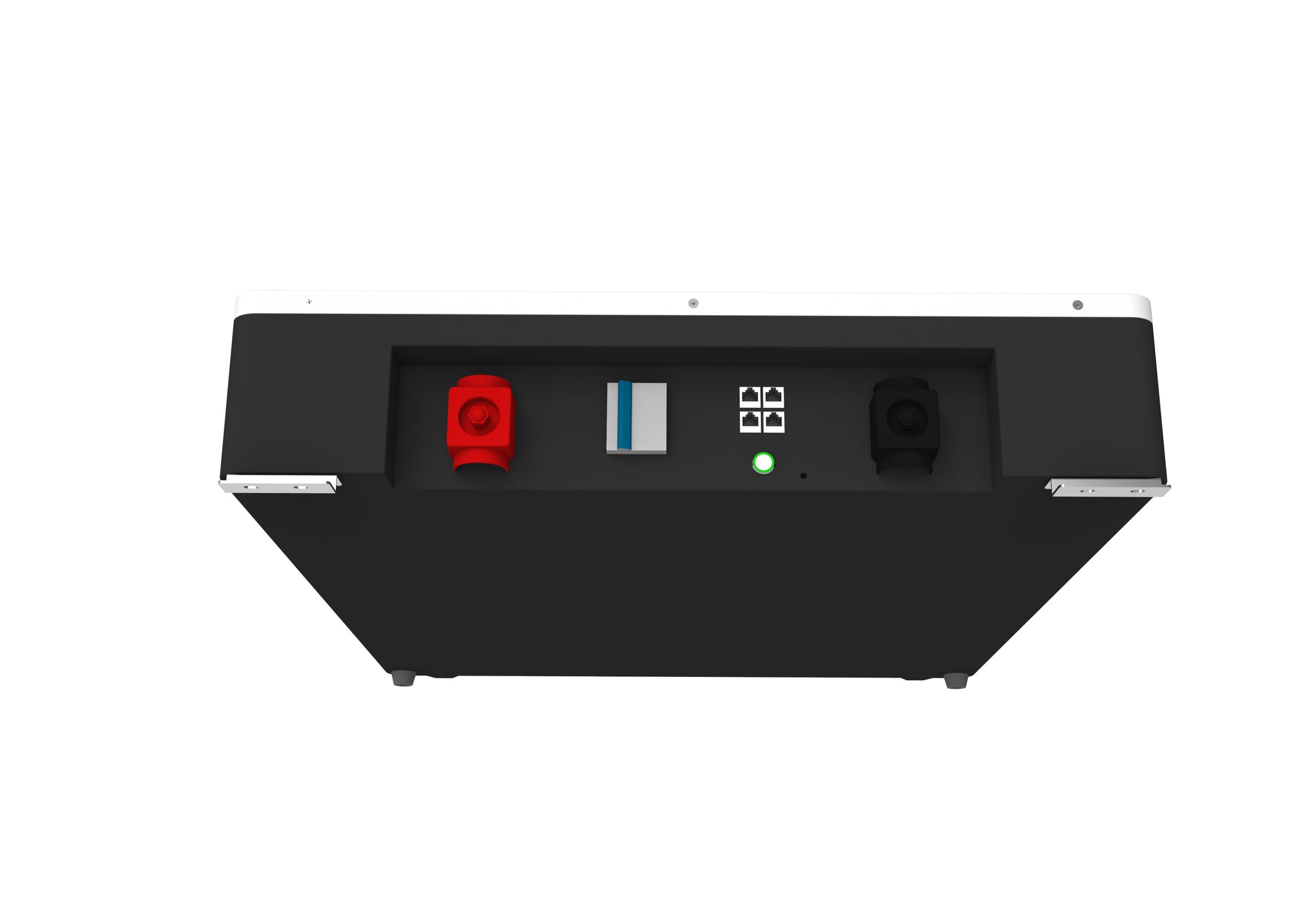

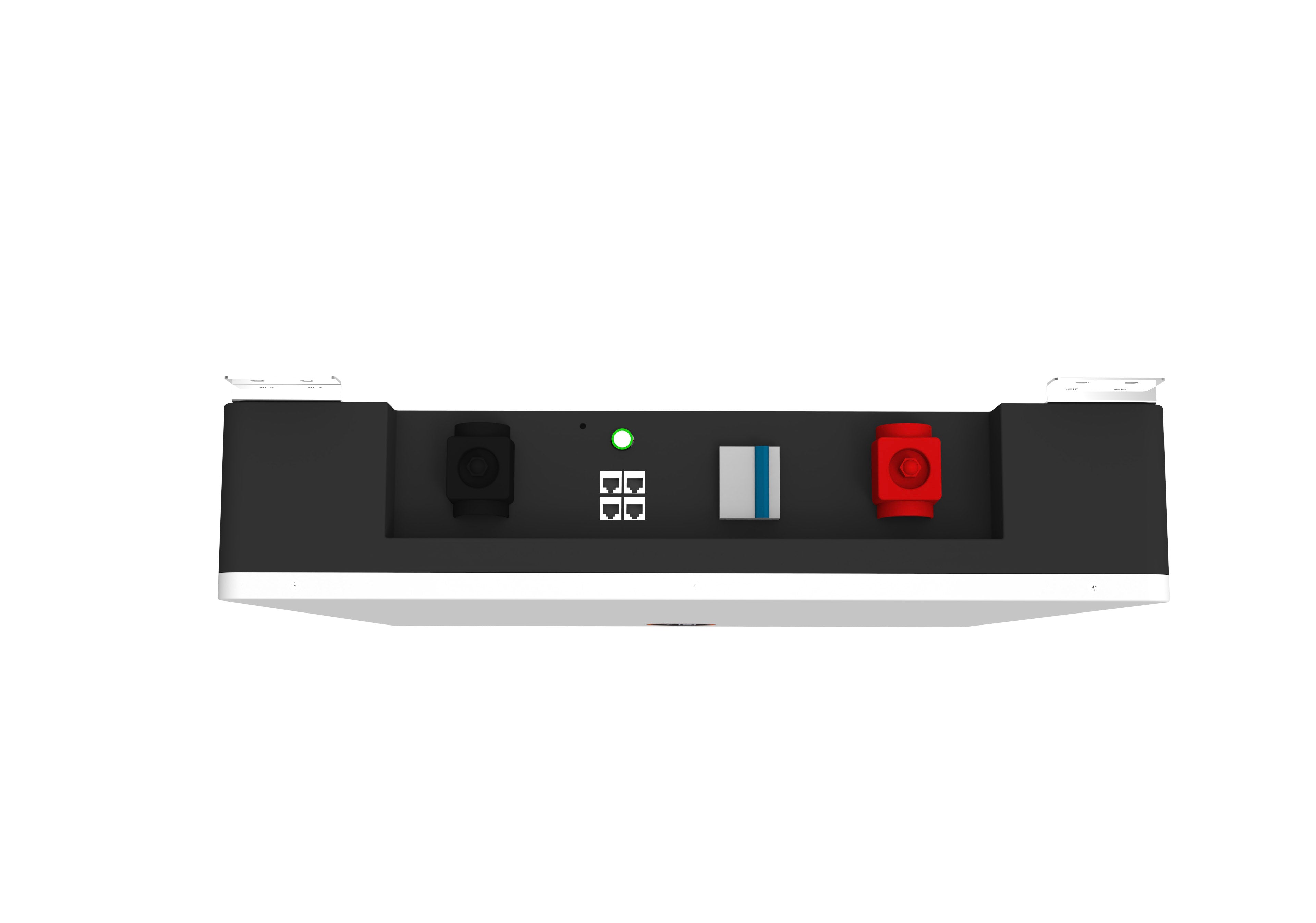

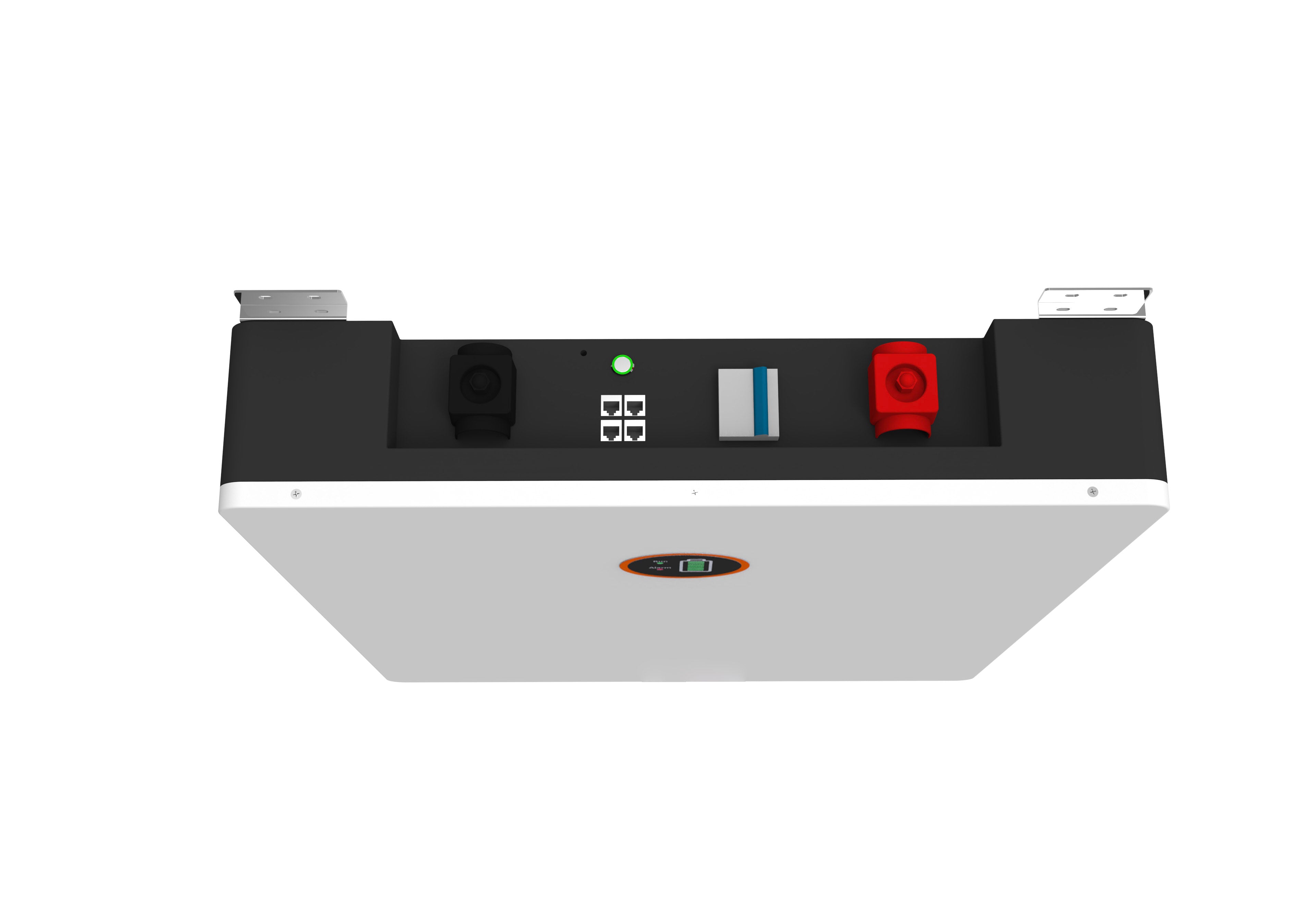

- Quick Installation: Features plug-and-play terminals (+/-) and RS485 parallel connection for seamless integration into existing solar systems.
- Natural Cooling: Designed for efficient heat dissipation without the need for additional cooling systems.

---

Product Specifications

• Model Number: LVE-W15.36Da
  - Nominal Voltage: 51.2V
  - Rated Capacity: 300Ah
  - Energy Storage: 15.36kWh
  - Dimensions: 660mm x 820mm x 140mm
  - Weight: 120.77kg
  - Charging Cut-off Voltage: 56.16V
  - Discharge Cut-off Voltage: 45.6V
  - Recommended Charge/Discharge Current: 100A
  - Maximum Continuous Charge/Discharge Current: 200A
  - Instantaneous Discharge Current: 400A (3 seconds)
  - Communication Interfaces: RS232, CAN, RS485
  - Cooling Method: Natural convection
  - Storage Environment:
    - Short-term (up to 3 months): 20°C – 45°C (50% SOC)
    - Long-term (over 3 months): 25°C ± 3°C, Humidity: 65% ± 20% RH
  - Certifications: CB, IEC62619, UL1973, UL9540A, UKCA, CE-EMC, CE-GPSD, EN62619, UN38.3, MSDS

---

Applications

• Residential Use: Ideal for home solar energy storage systems, providing reliable backup power and reducing reliance on the grid.
  - Commercial Use: Suitable for businesses, offices, and industrial facilities requiring scalable energy storage solutions.
  - Off-Grid Installations: Perfect for remote locations where access to the grid is limited or unavailable.
  - Emergency Backup Power: Ensures uninterrupted power supply during grid outages, supporting critical appliances and devices.

---

Benefits

• High Efficiency: Advanced LiFePO4 cells ensure maximum energy storage and minimal losses.
  - Scalability: Supports up to 15 units in parallel, allowing for flexible capacity expansion to meet growing energy demands.
  - Durability: With a lifecycle of 8000 cycles at 80% DOD, this battery offers long-term reliability and reduced maintenance costs.
  - Safety: Certified by multiple international standards, ensuring compliance with rigorous safety regulations.
  - Easy Integration: Quick plug-and-play design simplifies installation and reduces setup time.

---

Why Choose the Lithium Valley Technology LVE-W15.36Da?

• Cutting-Edge Technology:  Combines LiFePO4 cells, natural cooling, and advanced communication interfaces for superior performance and durability.
  - Certified Quality: Backed by certifications such as CB, UL, CE, and UN38.3, ensuring safety, reliability, and compliance with global standards.
  - Versatile Applications: Suitable for residential, commercial, off-grid, and emergency backup projects, providing flexibility and value.
  - Compact and Lightweight: Sleek wall-mount design makes it easy to install in homes, offices, or commercial spaces.

---

Upgrade Your Energy Storage System

Invest in the Lithium Valley Technology LVE-W15.36Da for a reliable, efficient, and eco-friendly energy storage solution.

Order now and take the first step toward sustainable, energy-independent living with Lithium Valley Technology.

---

From SOLAR.ID of Jakarta, Indonesia
