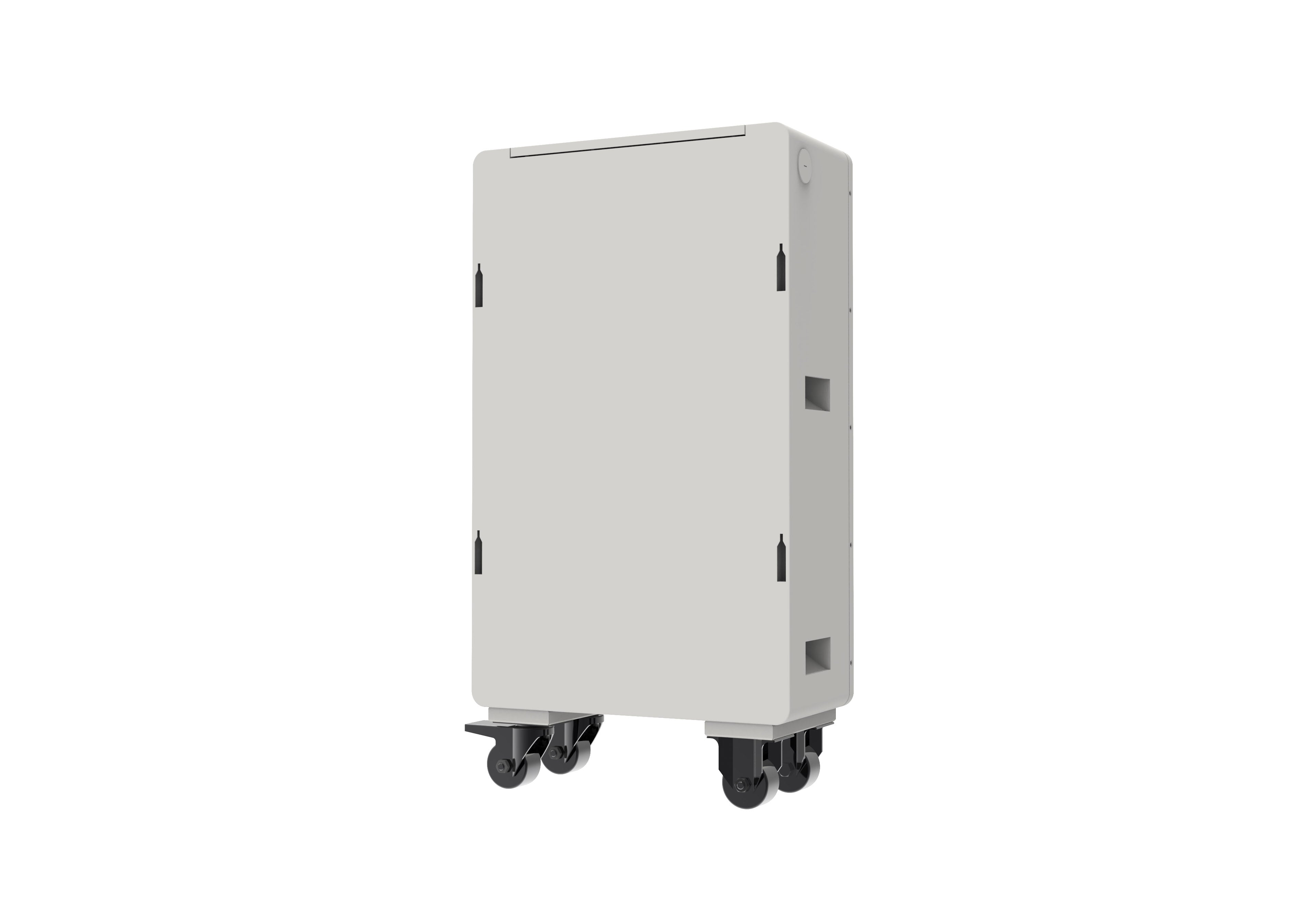

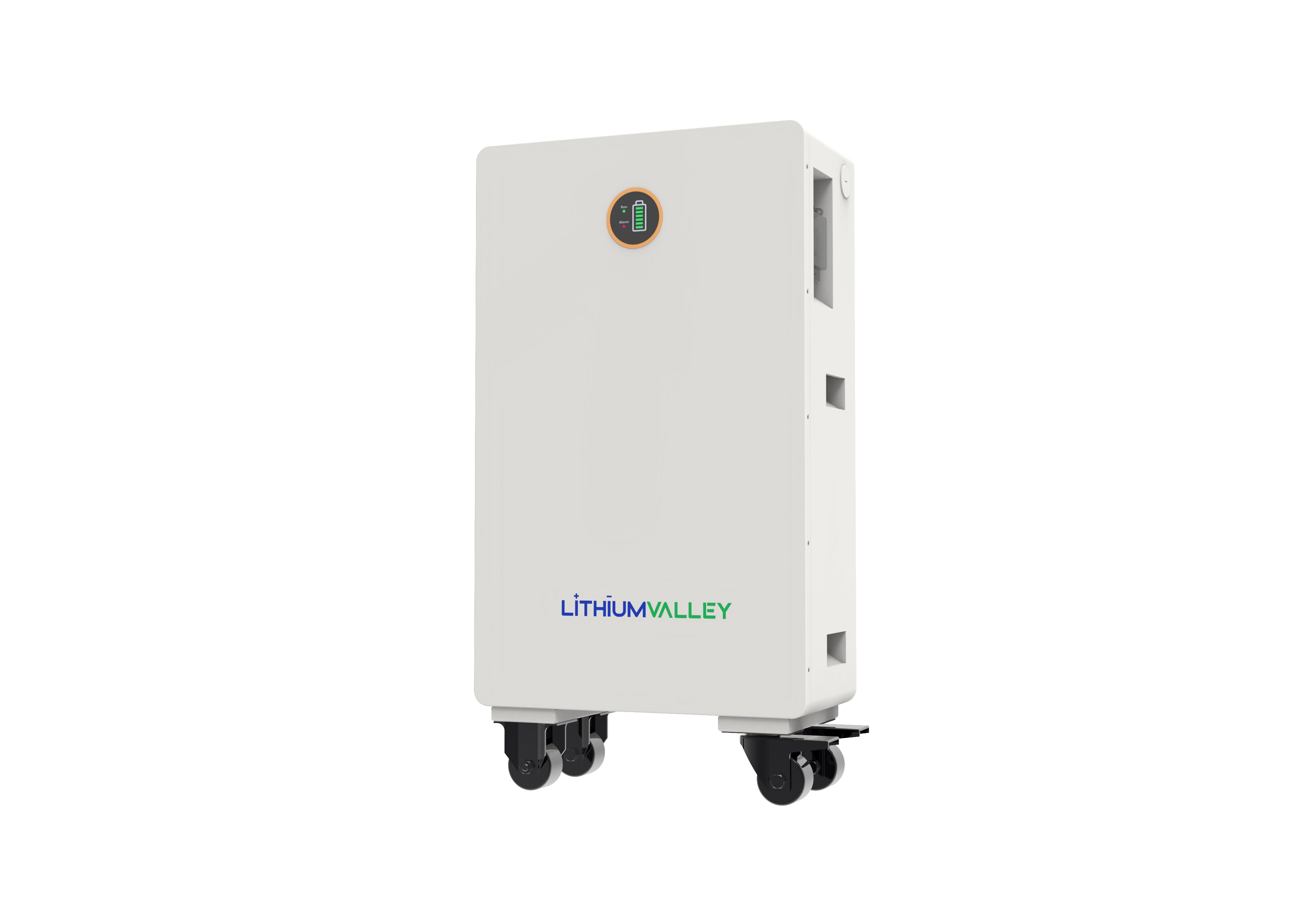

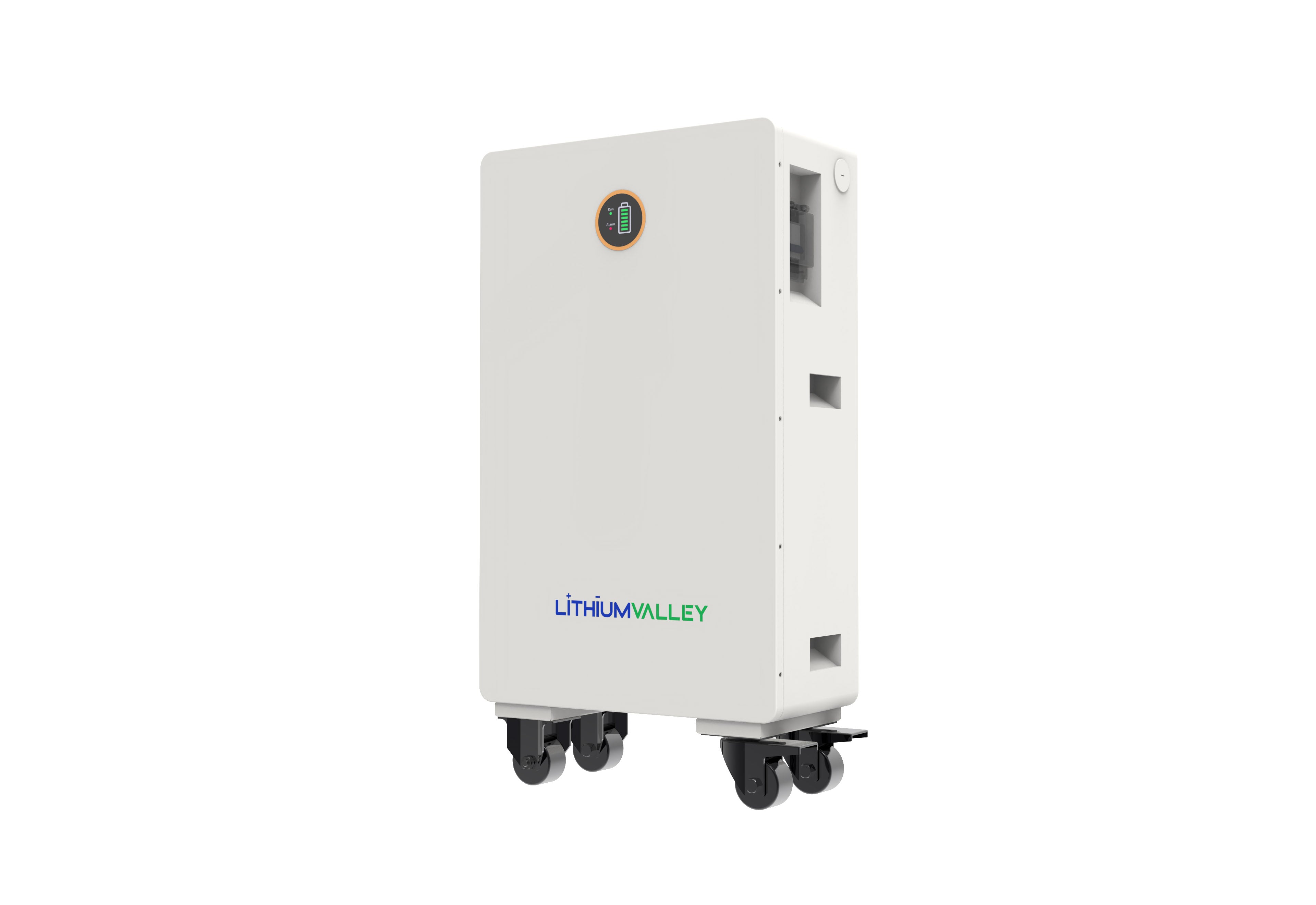

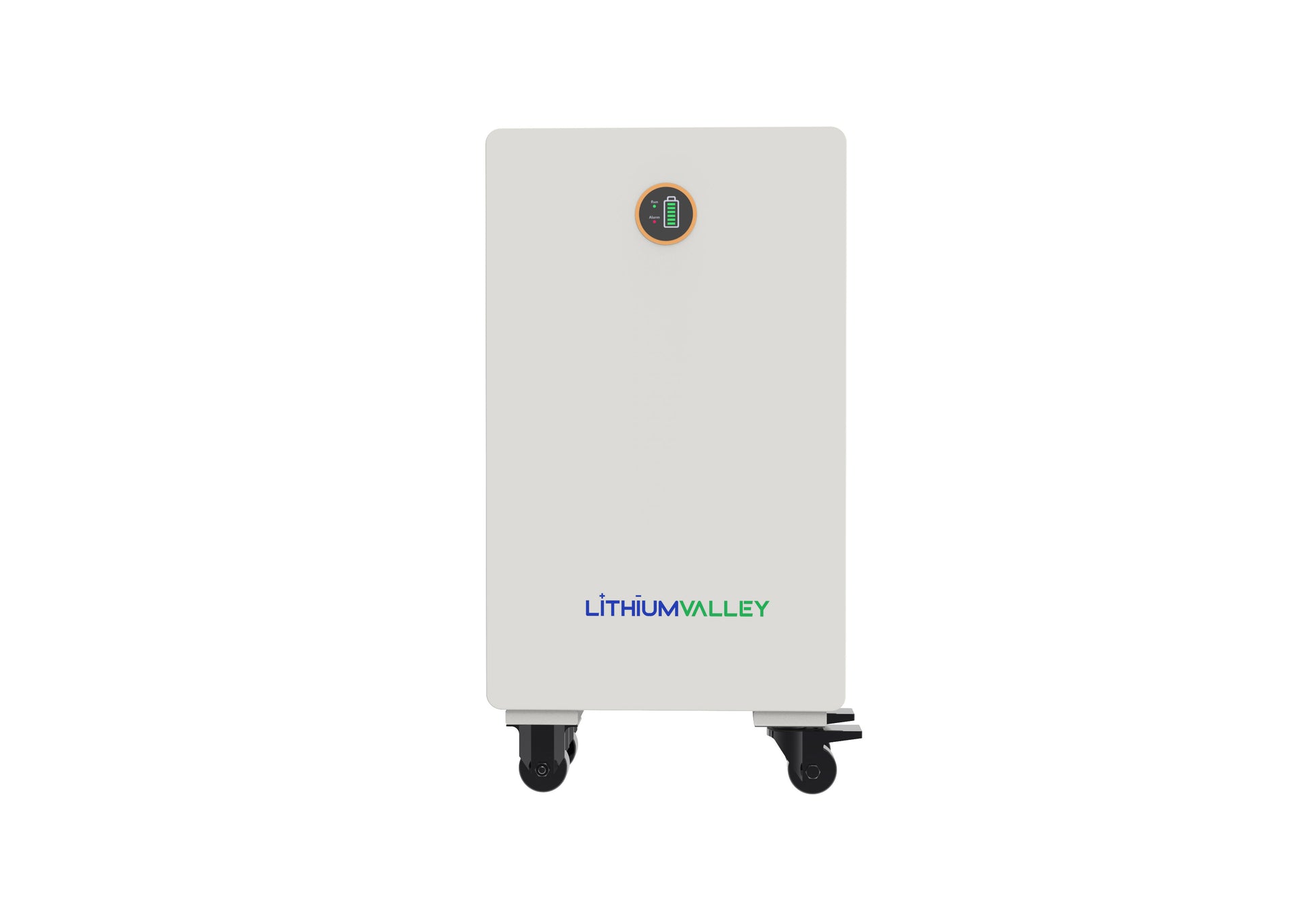

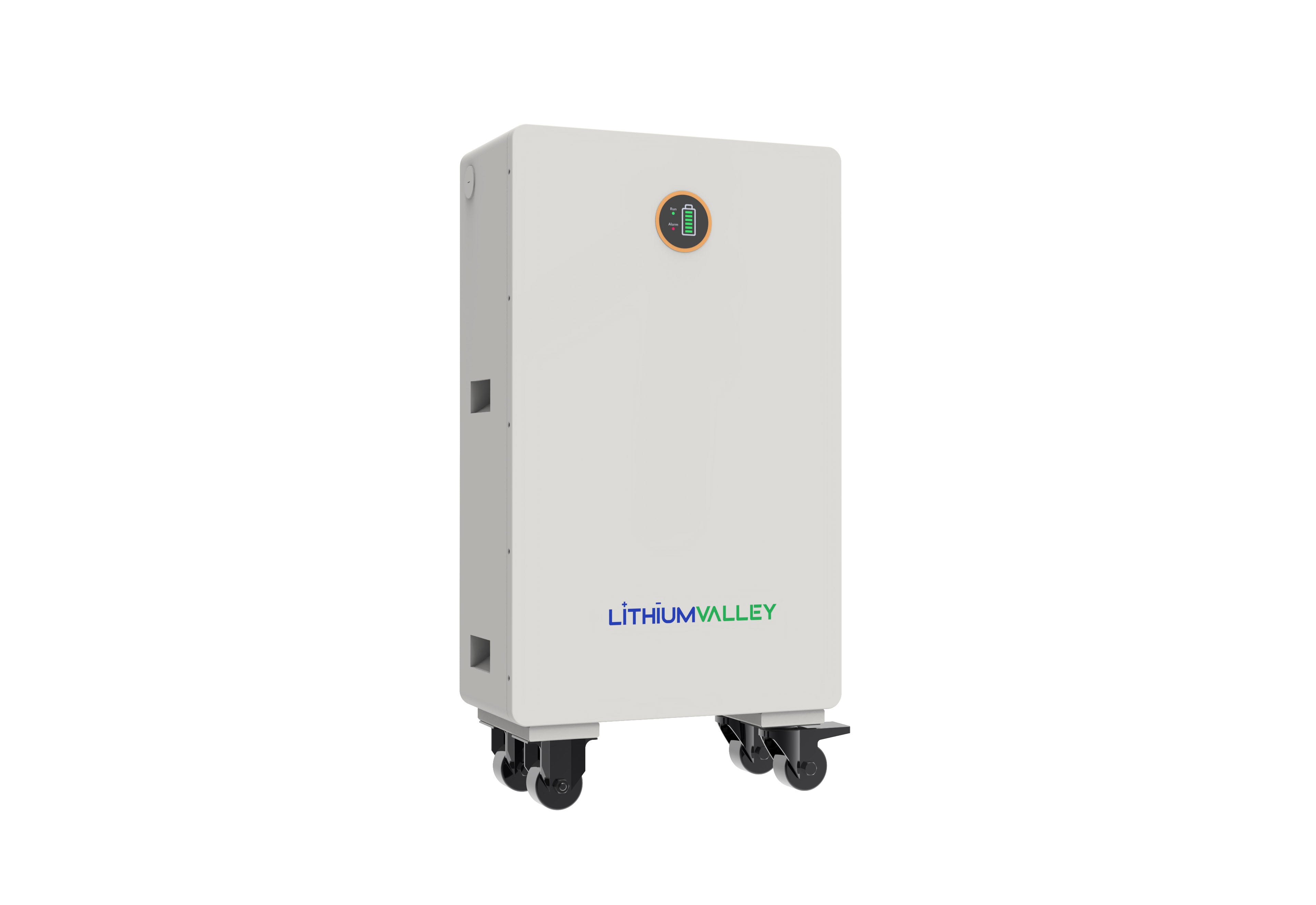

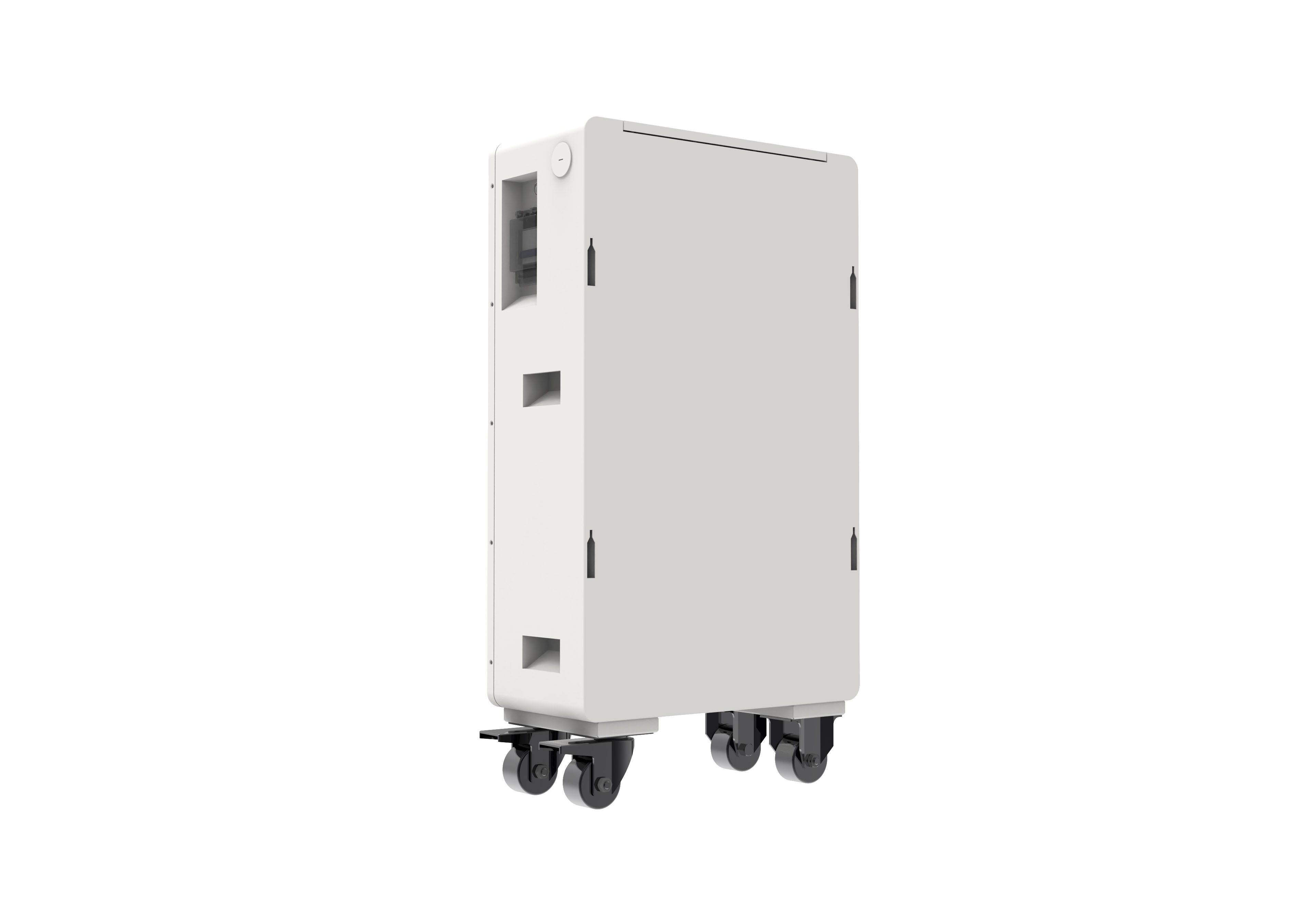

Lithium Valley Technology - LVE-W10-5A

Brand: Lithium Valley Technology
Model: LVE-W10-5A

The Lithium Valley Technology LVE-W10-5A is a high-capacity, intelligent lithium iron phosphate (LiFePO4) battery designed for residential solar energy storage. With an impressive capacity of 10.24kWh (51.2V, 200Ah), this wall-mountable battery offers a reliable, scalable, and safe solution for home energy storage, backup power, and off-grid systems. Its advanced Battery Management System (BMS), optional mobile app control, and all-weather durability make it an ideal choice for modern homes seeking energy independence and flexibility.

---

* Minimum Order Quantity (MOQ) of 10 units *

Key Features

Advanced Energy Storage Technology
- High-Quality LiFePO4 Cells: Ensures superior safety, long cycle life (up to 8000 cycles at 80% Depth of Discharge), and environmental sustainability.
- High Energy Density: Delivers 10.24kWh of energy in a compact design (780mm x 470mm x 227mm), making it space-efficient and versatile.
- Expandable Capacity: Supports up to 20 units in parallel, allowing for scalable energy storage solutions with a maximum system capacity of 204kWh.

Safe and Reliable Performance
- Built-in Fire Safety: Equipped with a hot aerosol fire extinguishing device, ensuring maximum safety in case of emergencies.
- Wide Operating Temperature Range:
  - Charge Temperature:
    - With heating function: -20°C to 55°C
    - Without heating function: 0°C to 55°C
  - Discharge Temperature: -20°C to 60°C
- Protection Mechanisms: Advanced safeguards include overcharge, over-discharge, short circuit, thermal protection, and IP65-rated weatherproofing for outdoor eaves installation.

Intelligent Battery Management System (BMS) - Real-Time Monitoring and Optimization: The advanced BMS monitors and optimizes battery performance, extending its service life and enabling remote control via a mobile app.
- Firmware Updates: Supports firmware updates via built-in Bluetooth Low Energy (BLE), ensuring compatibility with future technologies.
- LED Display: Provides real-time information on State of Charge (SOC), battery status, and other critical parameters.

---

Product Specifications

• Model Number: LVE-W10-5A
  - Nominal Voltage: 51.2V
  - Rated Capacity: 200Ah
  - Energy Storage: 10.24kWh
  - Dimensions (excluding wheels): 780mm x 470mm x 227mm
  - Weight: 96.6kg (excluding wheels)
  - Operating Voltage Range: 44.8V – 57.6V
  - Recommended Charge/Discharge Current: 100A
  - Maximum Continuous Charge/Discharge Current: 200A
  - Peak Discharge Current: 250A (10 seconds)
  - Cycle Life: 8000 cycles at 80% DOD (Depth of Discharge)
  - Cooling Method: Natural convection
  - Protection Rating: IP65 (all-weather use)
  - Communication Interfaces: CAN, RS485, RS232, BLE (Bluetooth Low Energy)
  - Storage Environment:
    - Short-term (up to 3 months): 20°C – 45°C (50% SOC)
    - Long-term (over 3 months): 25°C ± 3°C, Humidity: 65% ± 20% RH
  - Certifications: UN38.3, MSDS, TCAR, CB, CE-EMC

---

Applications

• Residential Use: Ideal for home solar energy storage systems, providing reliable backup power and reducing reliance on the grid.
  - Emergency Backup Power: Serves as a power bank during grid outages, supporting critical appliances and devices.
  - Off-Grid Installations: Perfect for remote locations where access to the grid is limited or unavailable.
  - Multi-Scenario Use: Optional detachable wheels enable mobile energy storage functionality, adapting to various scenarios such as outdoor events or temporary setups.

---

Benefits

• High Efficiency: Advanced LiFePO4 cells ensure maximum energy storage and minimal losses, with a conversion efficiency of 99%.
  - Scalability: Supports up to 20 units in parallel, allowing for flexible capacity expansion to meet growing energy demands.
  - Durability: Rated for 8000 cycles at 80% DOD, this battery offers long-term reliability and reduced maintenance costs.
  - Safety: Certified by multiple international standards, including UN38.3, CB, and CE-EMC, ensuring compliance with rigorous safety regulations.
  - Easy Installation: Wall-mountable or floor-standing design simplifies installation, while optional wheels provide mobility for multi-scenario use.

---

Why Choose the Lithium Valley Technology LVE-W10-5A?

• Cutting-Edge Technology: Combines LiFePO4 cells, intelligent BMS, and IP65-rated weatherproofing for superior performance and durability.
  - Certified Quality: Backed by certifications such as UN38.3, CB, and CE-EMC, ensuring safety, reliability, and compliance with global standards.
  - Versatile Applications: Suitable for residential, emergency backup, off-grid, and mobile energy storage projects, providing flexibility and value.
  - Compact and Lightweight: Sleek wall-mount design makes it easy to install in homes, offices, or commercial spaces.

---

Upgrade Your Energy Storage System

Invest in the Lithium Valley Technology LVE-W10-5A for a reliable, efficient, and eco-friendly energy storage solution.

Order now and take the first step toward sustainable, energy-independent living with Lithium Valley Technology.

---

From SOLAR.ID of Jakarta, Indonesia

LVE-W10-5A  Product Datasheet
