KNYEE ENERGY - ZC-W51100

Brand: KNYEE ENERGY
Model: ZC-W51100

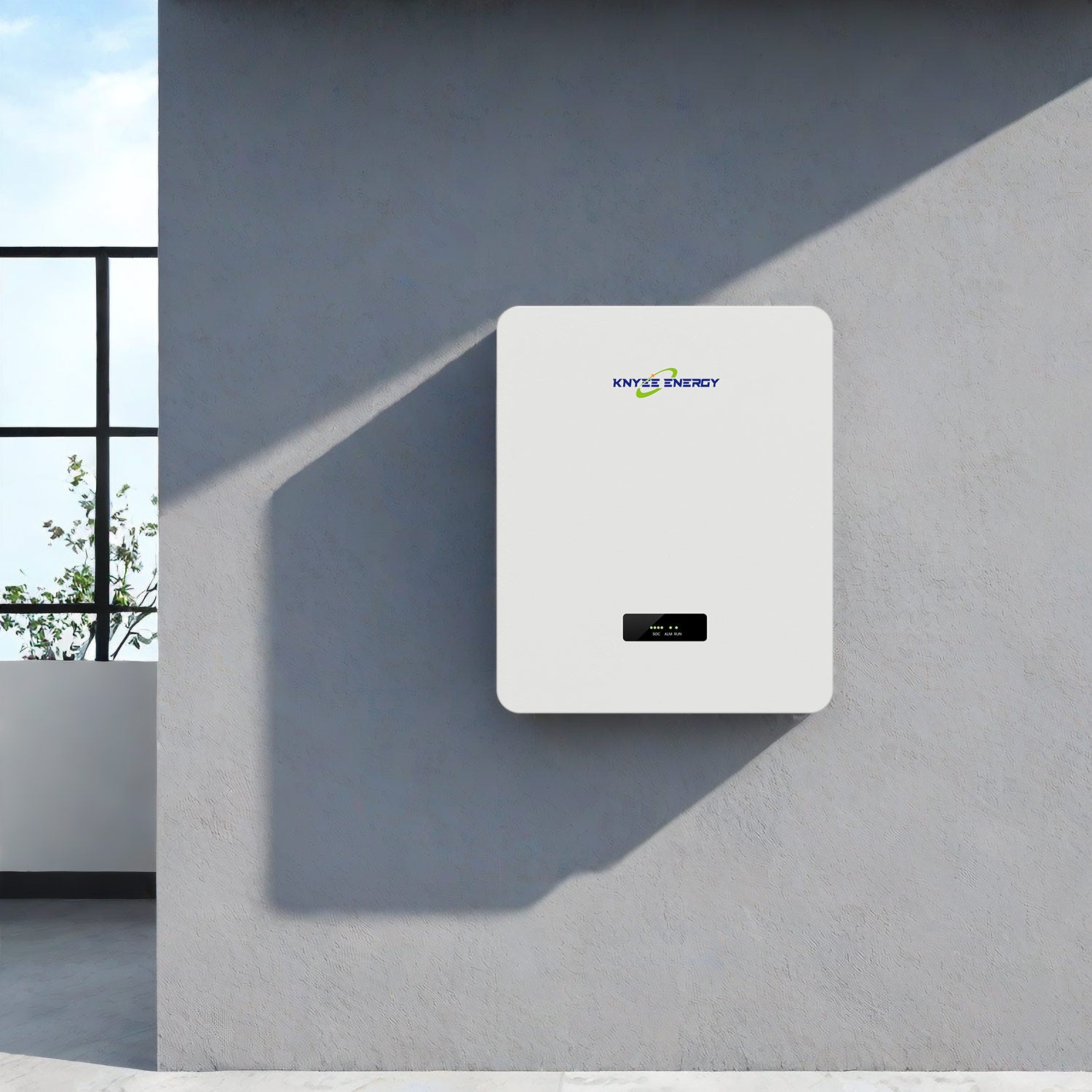

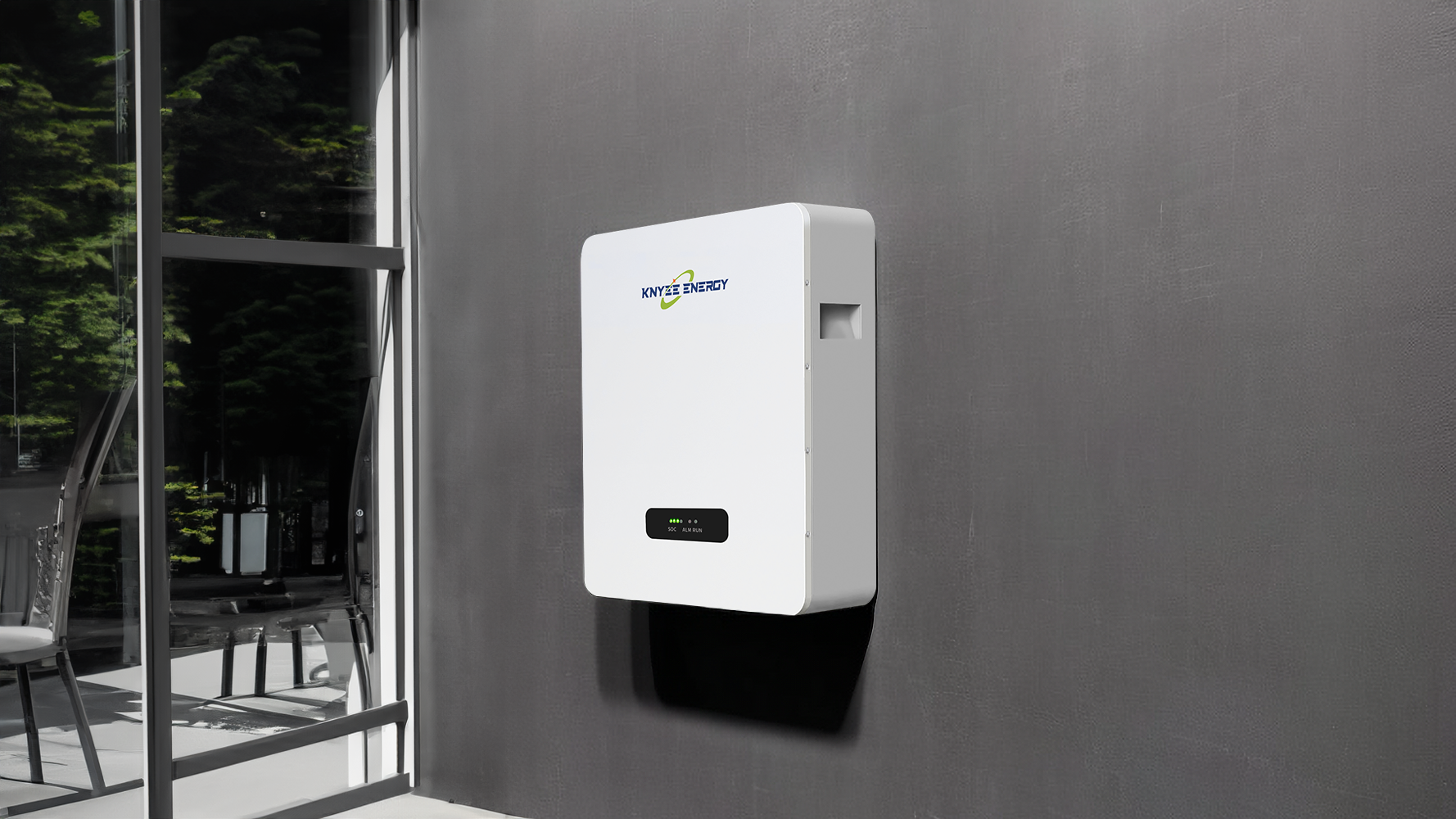

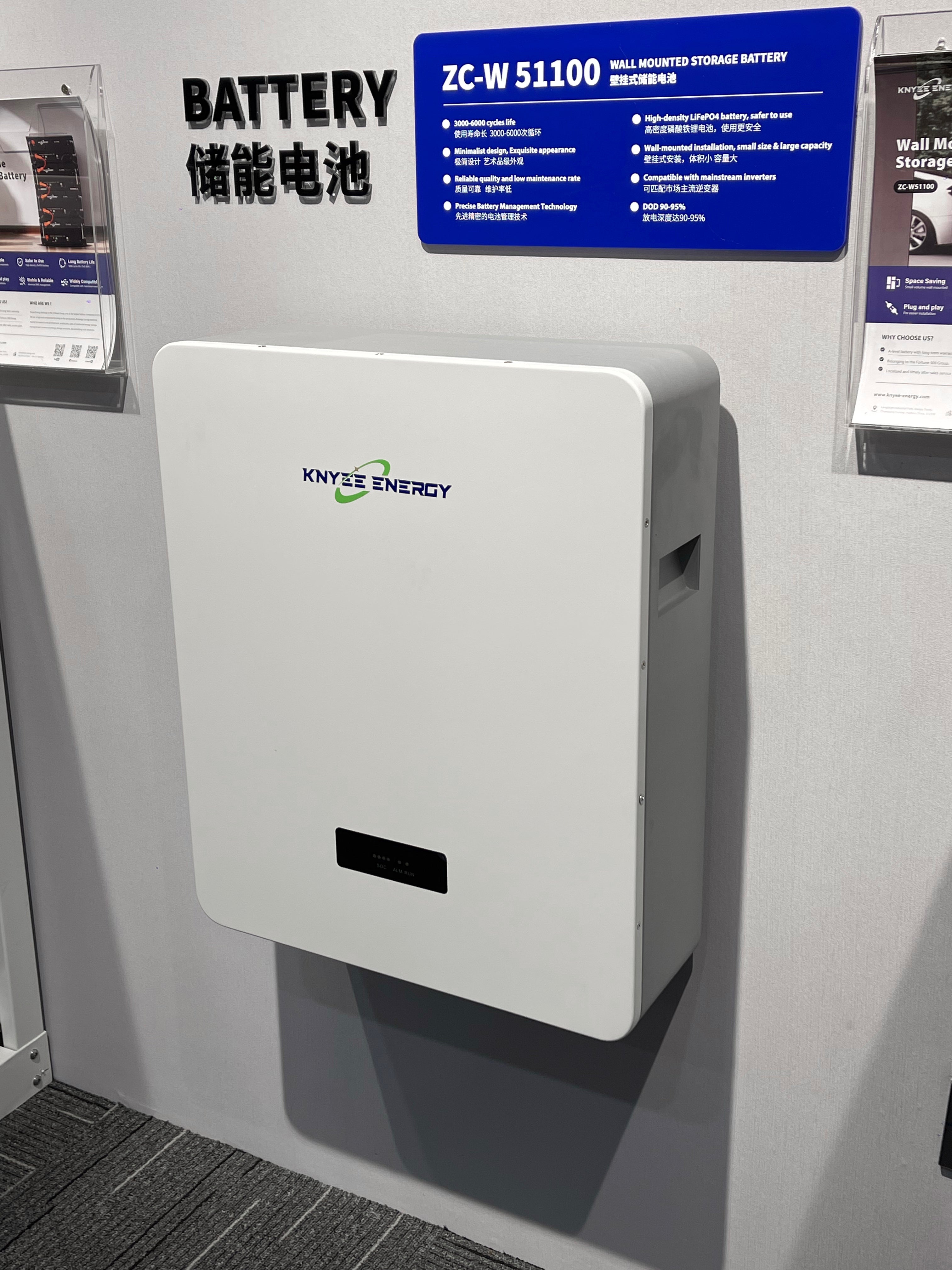

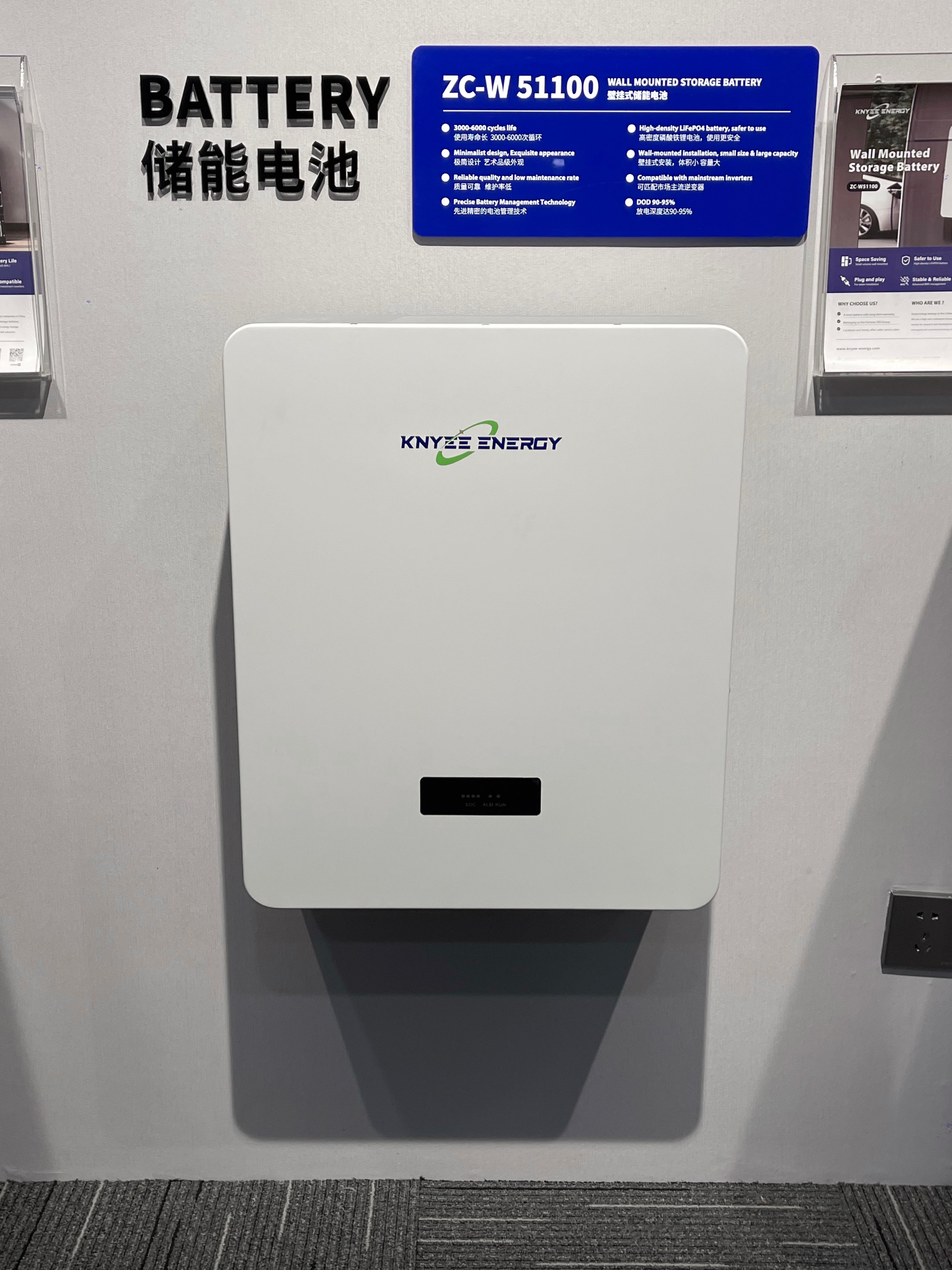

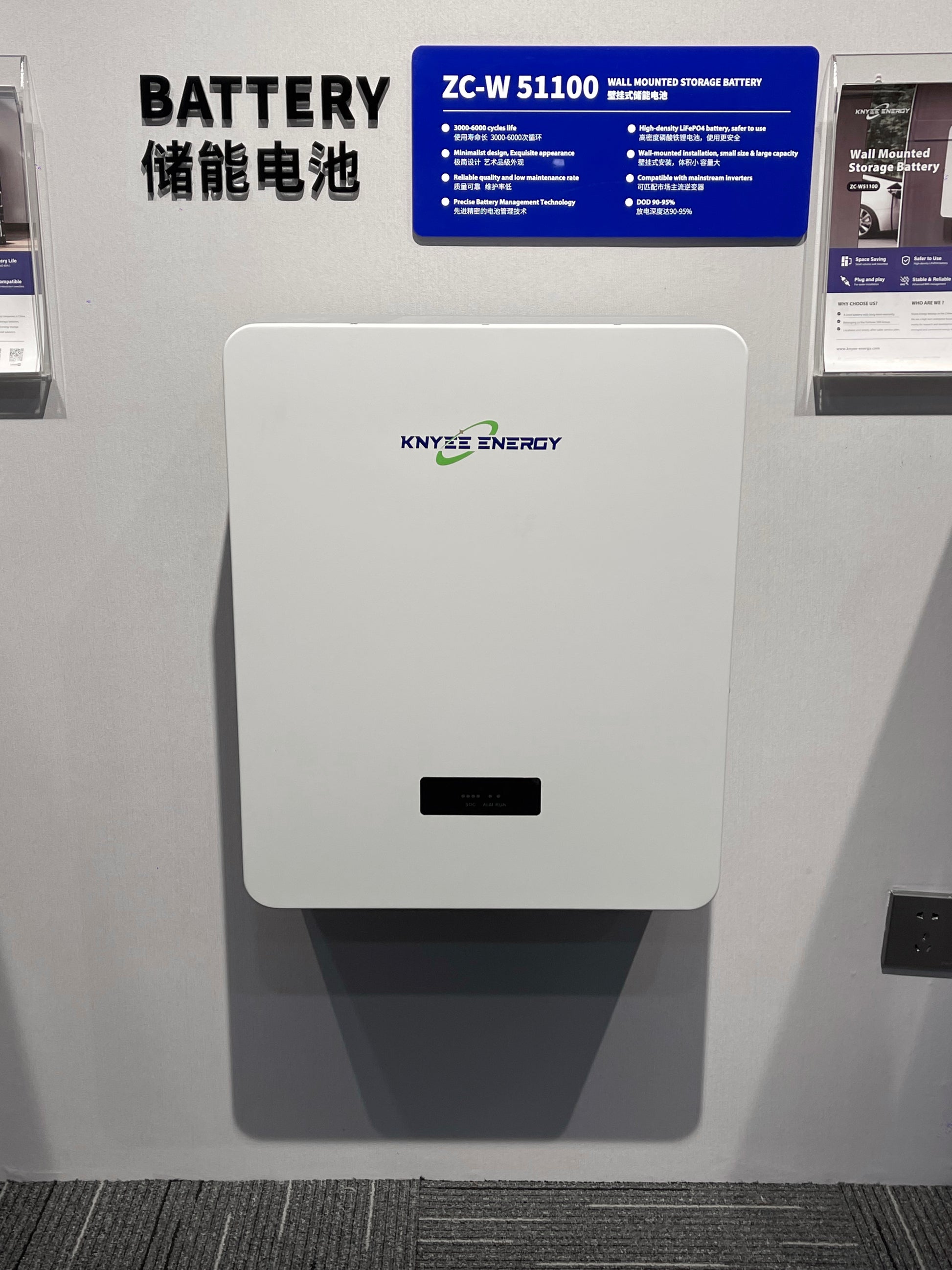

The KNYEE ENERGY ZC-W51100 Wall-Mounted Storage Battery is a high-performance lithium iron phosphate (LiFePO4) battery designed for residential and commercial energy storage applications. With a nominal capacity of 100Ah and a rated energy storage of 5.12kWh, this compact and reliable battery offers exceptional safety, longevity, and compatibility with mainstream inverters. Its advanced BMS management, space-saving design, and expandable configuration make it an ideal solution for solar energy storage, backup power systems, and off-grid installations.

---

* Minimum Order Quantity (MOQ) of 5 units *

Key Features

Advanced Energy Storage Technology

• High-Quality LiFePO4 Cells: Ensures superior safety, long cycle life (6000 cycles at 80% Depth of Discharge), and environmental sustainability.
• Compact Design: Small volume wall-mounted design saves space while delivering reliable energy storage.
• Expandable Capacity: Supports up to 15 units in parallel, enabling scalable energy storage solutions tailored to specific needs.

Safe and Reliable Performance

• Built-in Fire Safety: Equipped with advanced safeguards such as overcharge, over-discharge, short circuit, and thermal protection.
• Wide Operating Temperature Range: Operates efficiently in temperatures ranging from -20°C to 60°C (discharge) and 0°C to 55°C (charge).
• Protection Rating: IP20 ensures resistance to dust and water ingress, making it suitable for indoor use.

User-Friendly Design

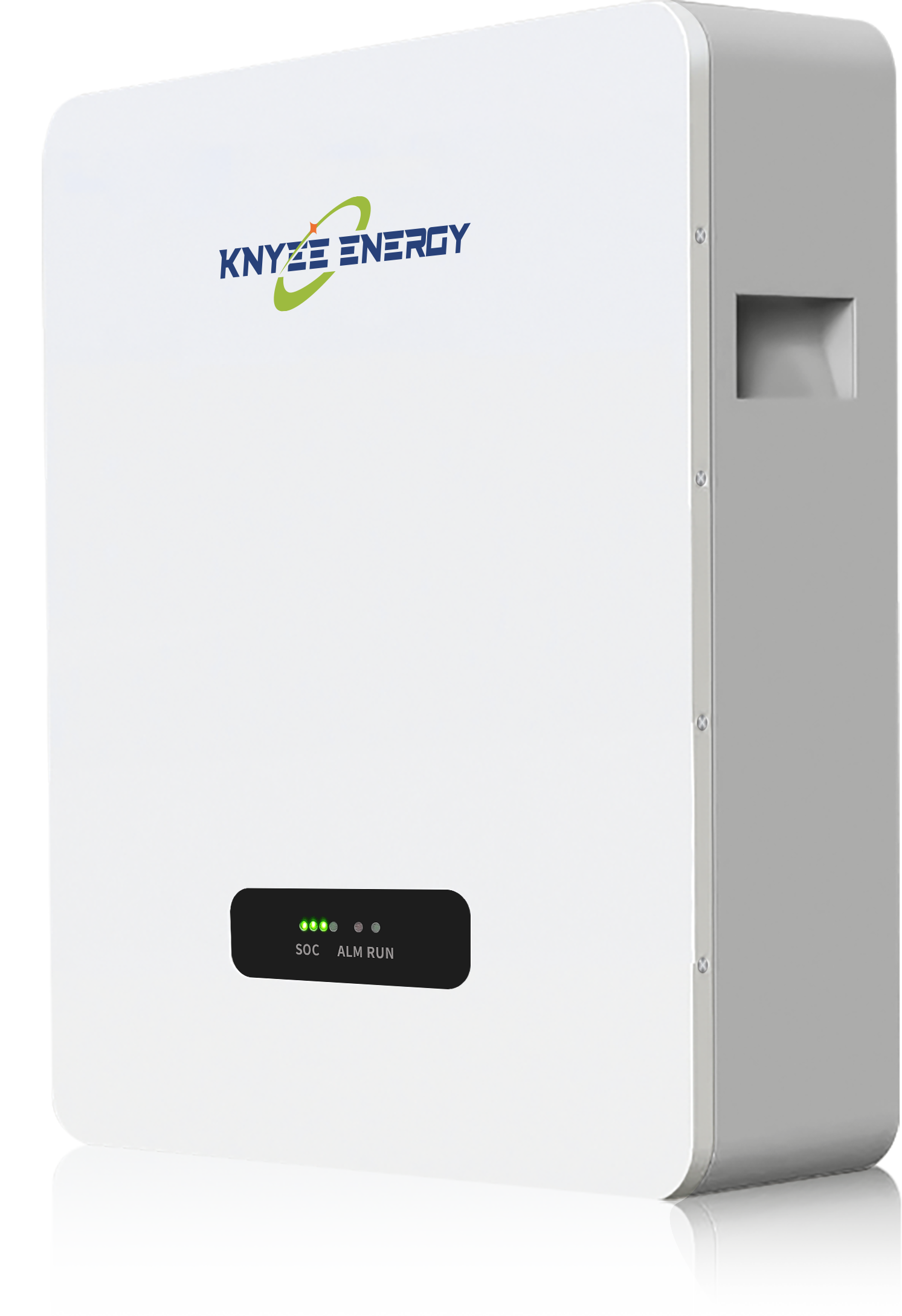

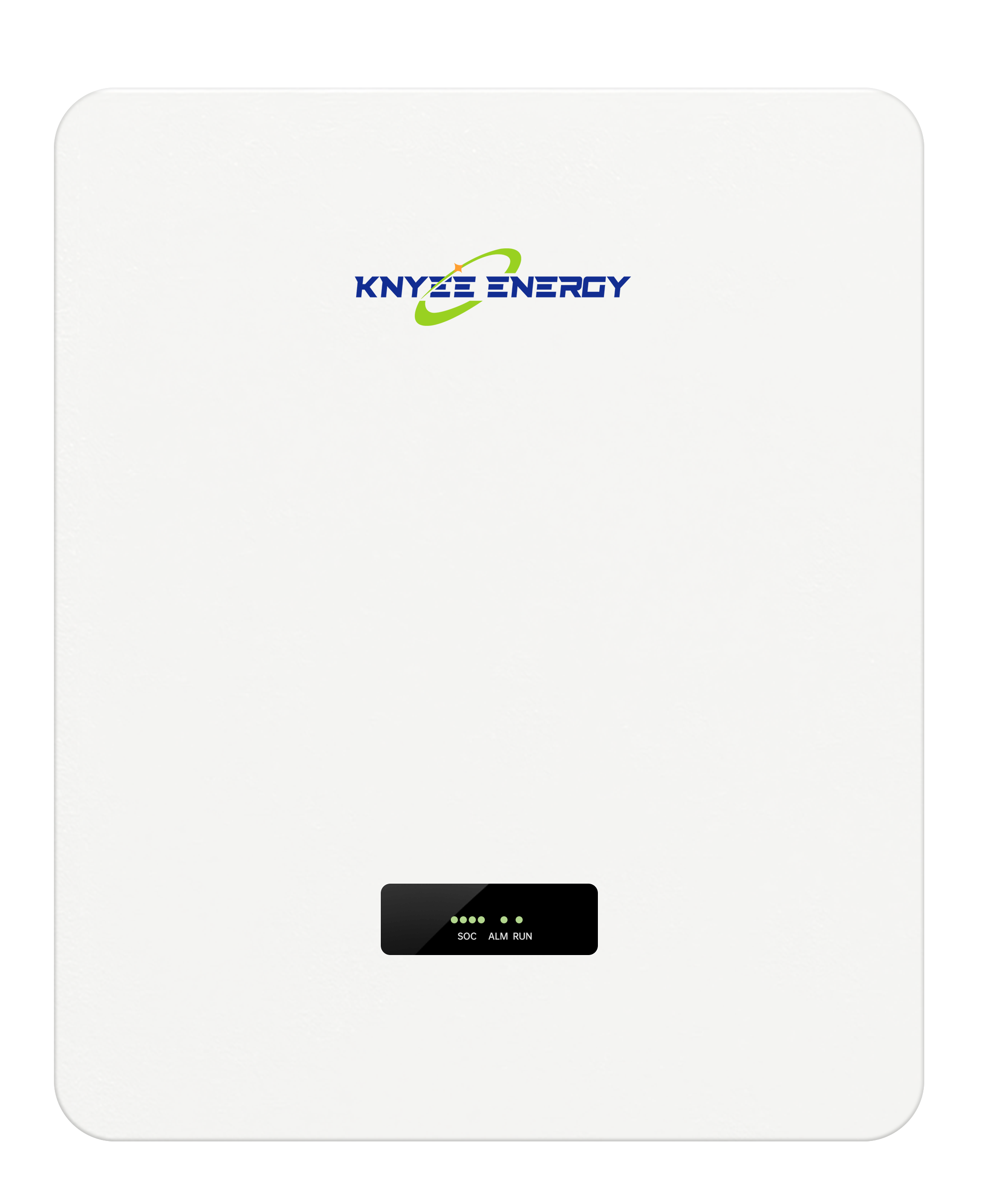

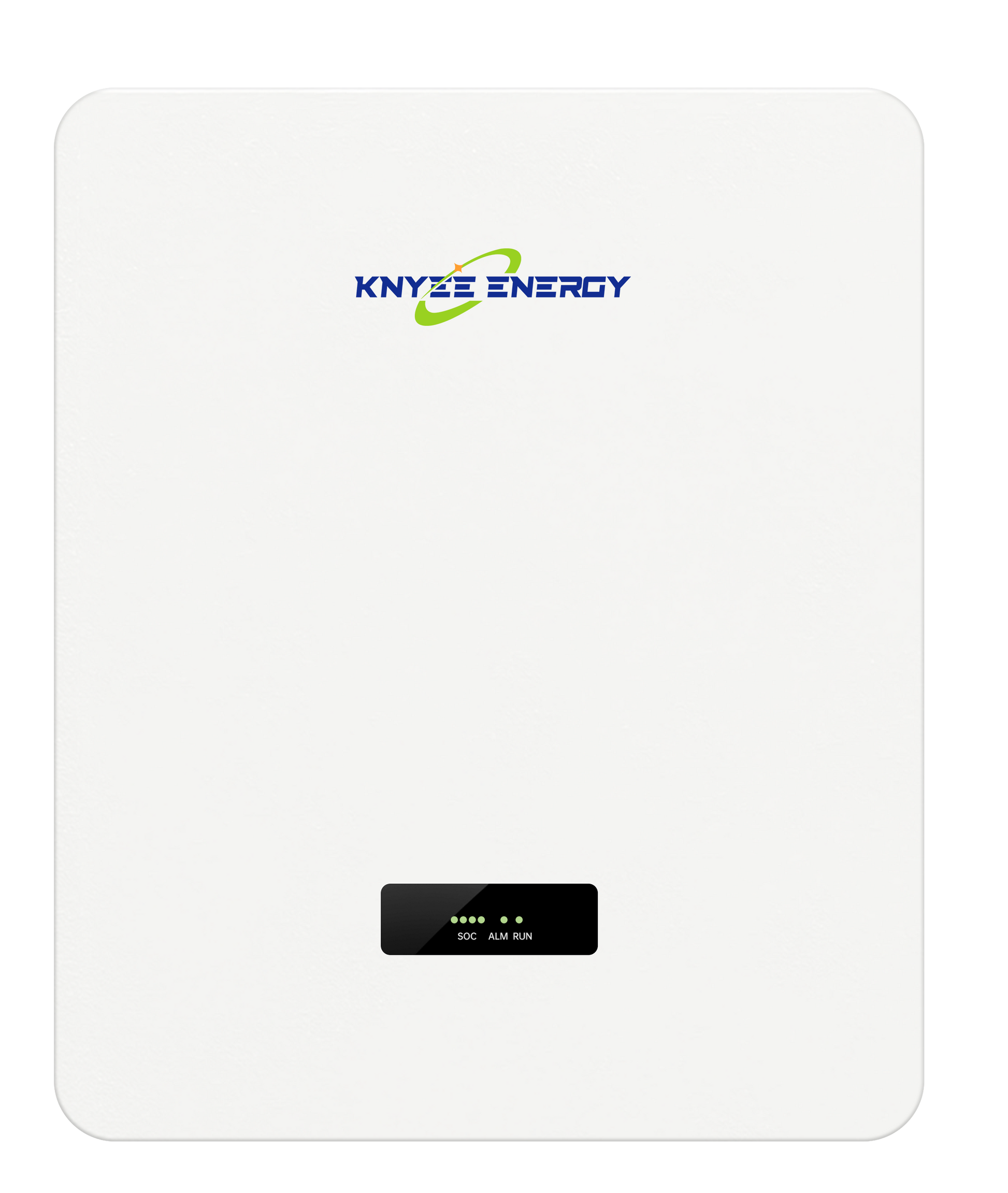

• LED Display: Provides real-time information on State of Charge (SOC) and battery status, ensuring easy monitoring.
• Advanced BMS Management: Monitors and optimizes battery performance in real-time, extends service life, and enables communication via protocols (CAN/RS485/RS232).
• Plug-and-Play Installation: Designed for quick and easy setup, with seamless integration into existing solar systems.

Additional Features

• Corrosion-Resistant Materials: Durable shell made of high-quality sheet metal ensures long-term reliability.
• Self-Discharge Rate: Less than 2% per month, ensuring the battery retains its charge during periods of inactivity.

---

Product Specifications

• Nominal Voltage: 51.2V DC
• Voltage Range: 44V–58.4V
• Nominal Capacity: 100Ah
• Rated Capacity: 5.12kWh
• Cycle Life: 6000 cycles @ 80% DOD
• Dimensions: 580mm x 480mm x 160mm
• Weight: 50kg (net) / 56.5kg (gross)
• Shell Material: Sheet Metal
• Protection Rating: IP20

Charging Parameters

• Recommended Charging Current: 50A
• Max. Charging Current: 100A
• Recommended Charging Voltage: 58V
• Max. Charging Voltage: 58.4V

Discharging Parameters

• Recommended Discharging Current: 50A
• Max. Discharging Current: 100A
• Recommended Discharge Cut-off Voltage: 44V
• Battery Cut-off Voltage: 43.2V
• Battery Recovery Voltage: 48V

Environmental Specifications

• Operating Temperature Range:
• Charge: 0°C to 55°C
• Discharge: -20°C to 60°C
• Storage Temperature Range: -20°C to 45°C
• Humidity: 5%–95% (non-condensing)

Certifications

• Safety Certification: CE
• Transportation Safety Certification: UN38.3, Class 9

---

Applications

• Residential Use: Ideal for home energy storage systems, providing reliable backup power and reducing reliance on the grid.
• Commercial Use: Suitable for enterprises, offices, and industrial facilities requiring scalable energy storage solutions.
• Off-Grid Installation: Perfect for remote areas where grid access is restricted or unavailable.
• Emergency Backup Power: Ensures uninterrupted power supply during grid outages, supporting critical appliances and devices.

---

Benefits

• High Efficiency: Advanced LiFePO4 cells ensure maximum energy storage and minimal losses.
• Durability: With a lifecycle of 6000 cycles at 80% DOD, this battery offers long-term reliability and reduced maintenance costs.
• Safety: Corrosion-resistant materials, advanced BMS management, and temperature-controlled heat dissipation ensure safe operation.
• Scalability: Expandable design allows for flexible capacity expansion to meet growing energy demands.
• Versatility: Compatible with mainstream inverters and suitable for various applications, including residential, commercial, and off-grid use.

---

Why Choose the KNYEE ENERGY ZC-W51100?

• Combines LiFePO4 cells, space-saving design, and advanced BMS control for superior performance and durability.
• Backed by rigorous testing and certifications such as CE, UN38.3, and Class 9, ensuring safety, reliability, and compliance with global standards.
• Suitable for residential, commercial, and off-grid applications, providing flexibility and value.
• Compact and lightweight design makes it easy to install and transport.

---

Upgrade Your Energy Storage System

Invest in the KNYEE ENERGY ZC-W51100 Wall-Mounted Storage Battery for a reliable, efficient, and eco-friendly energy storage solution.

Order now and experience the next generation of energy storage technology with KNYEE ENERGY.

---

From SOLAR.ID of Jakarta, Indonesia


KNYEE ENERGY - ZC-W51100 Data Sheet
