KNYEE ENERGY - KNY51200
Contact for Price. Pricing varies based on the number of units and current market rates. For a personalized quote tailored to your project, please reach out to us!
Couldn't load pickup availability
Brand: KNYEE ENERGY
Model: KNY51200

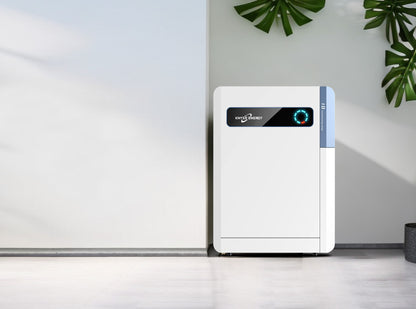

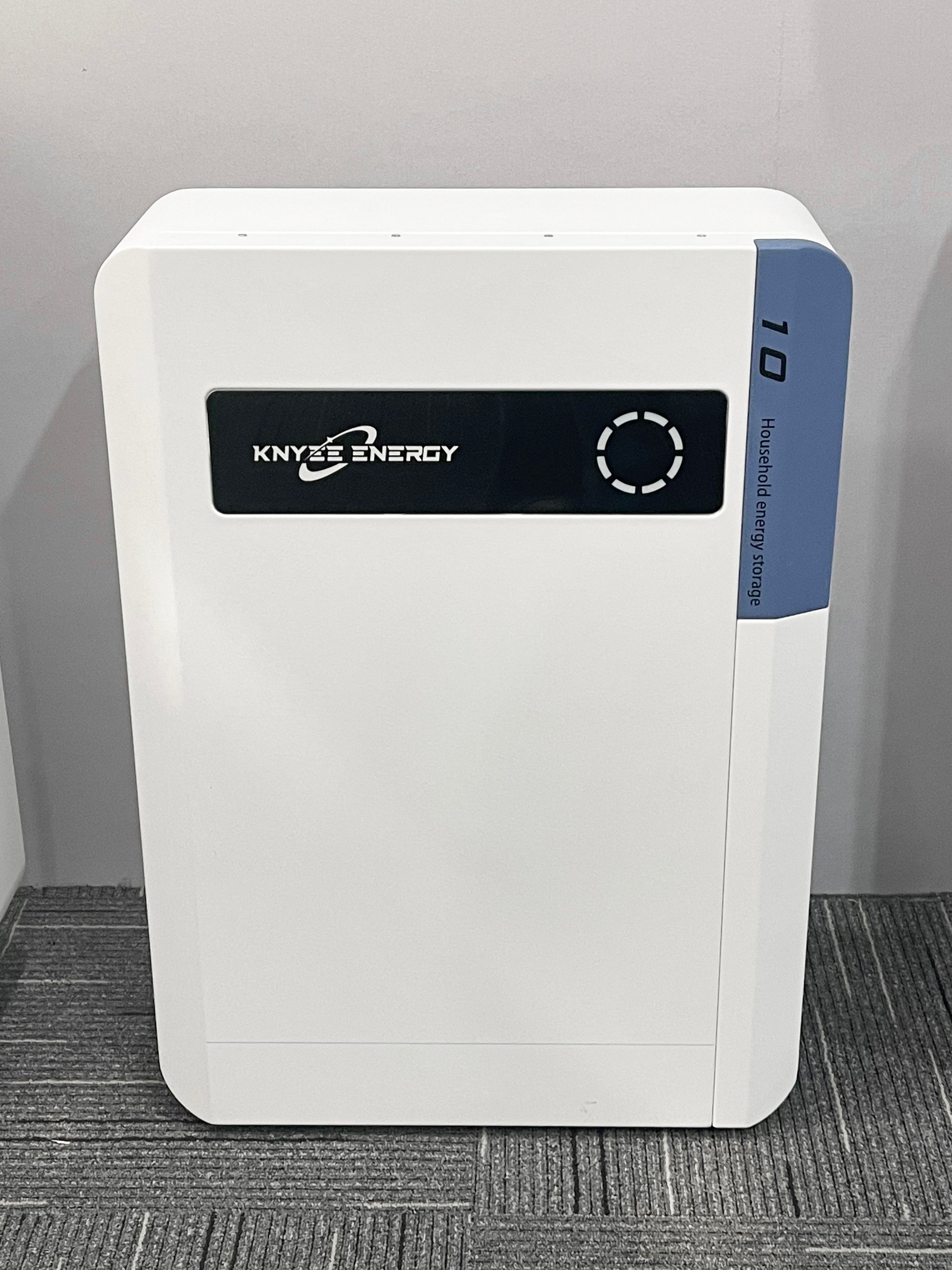

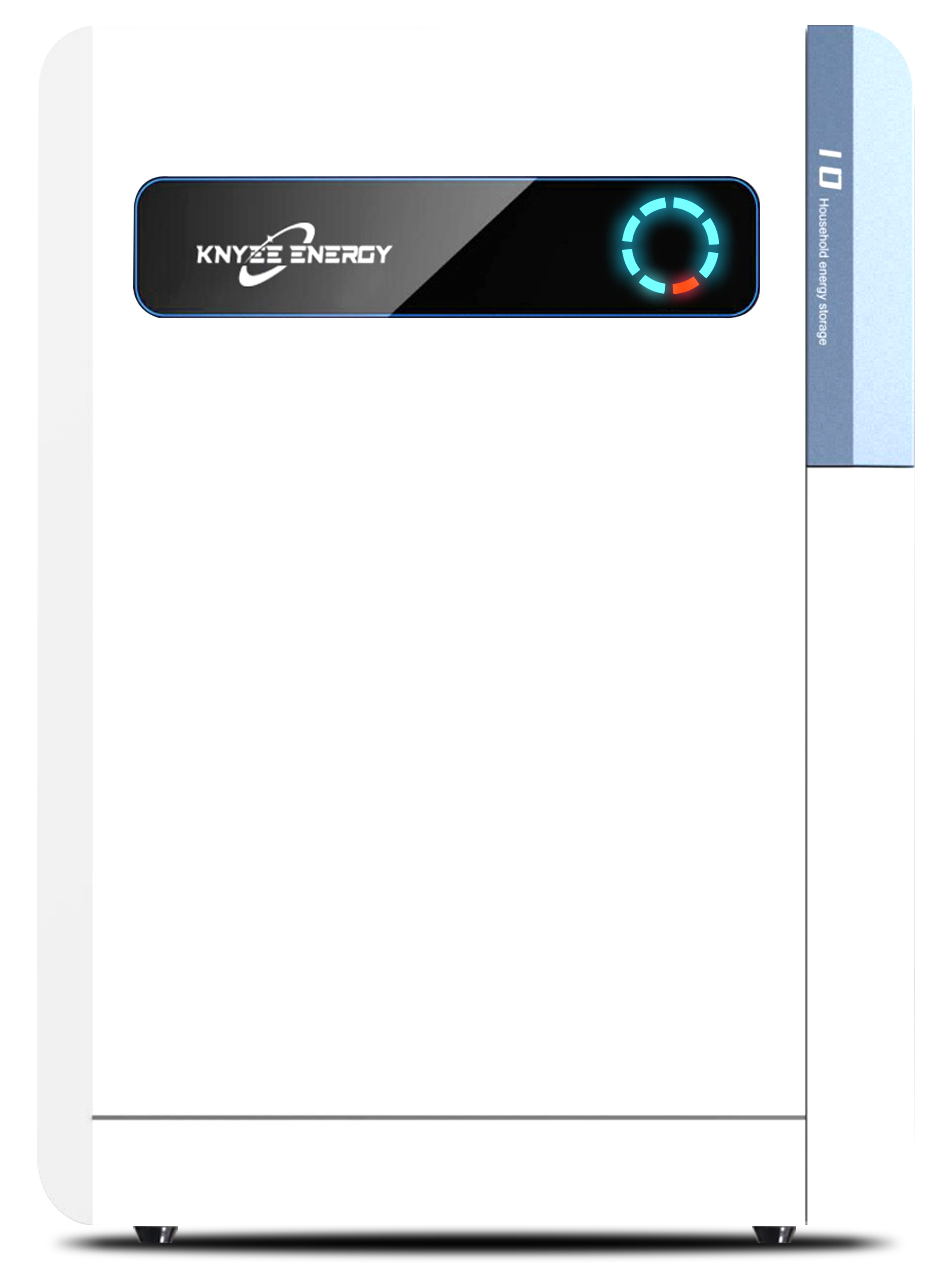

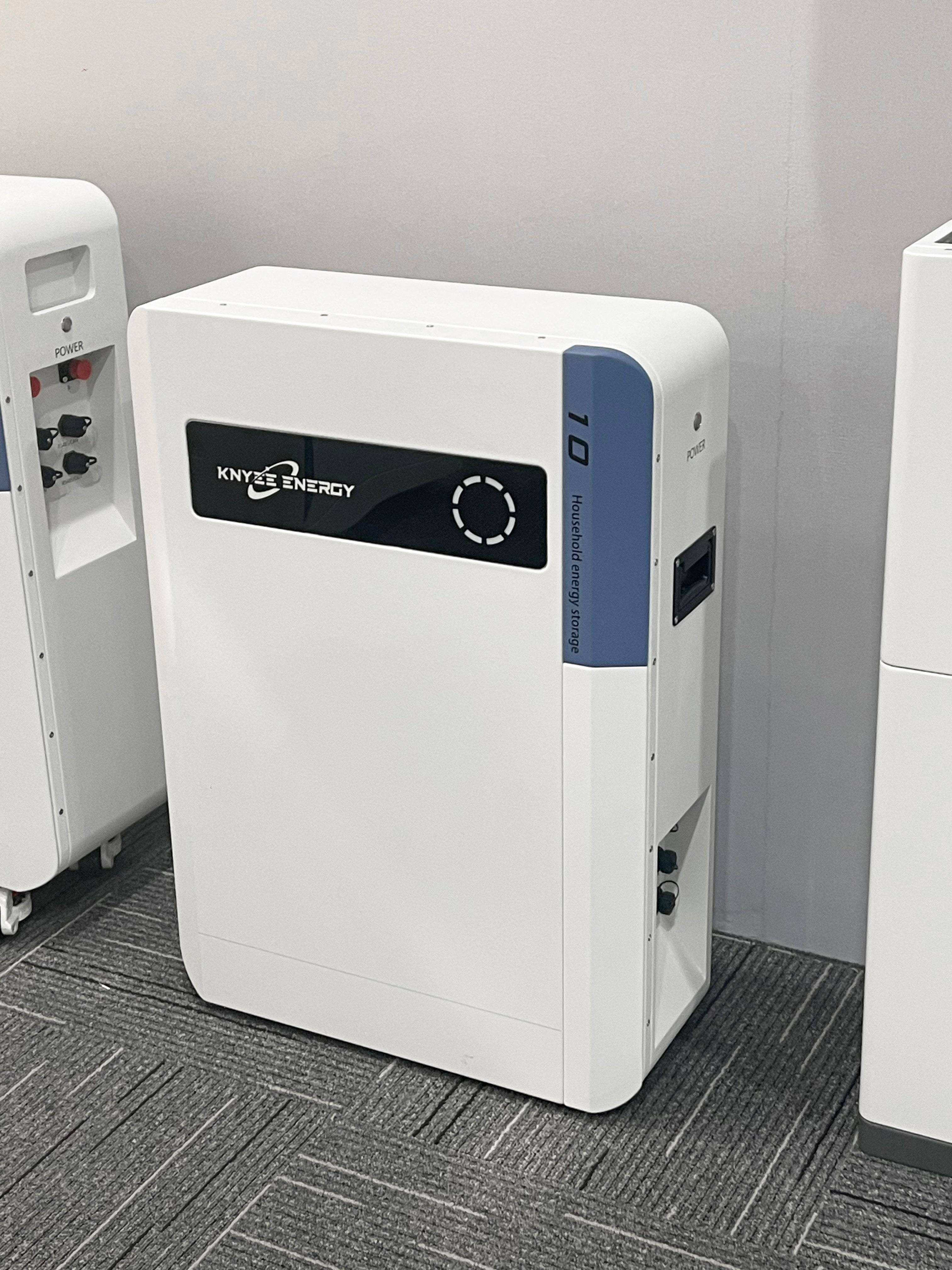

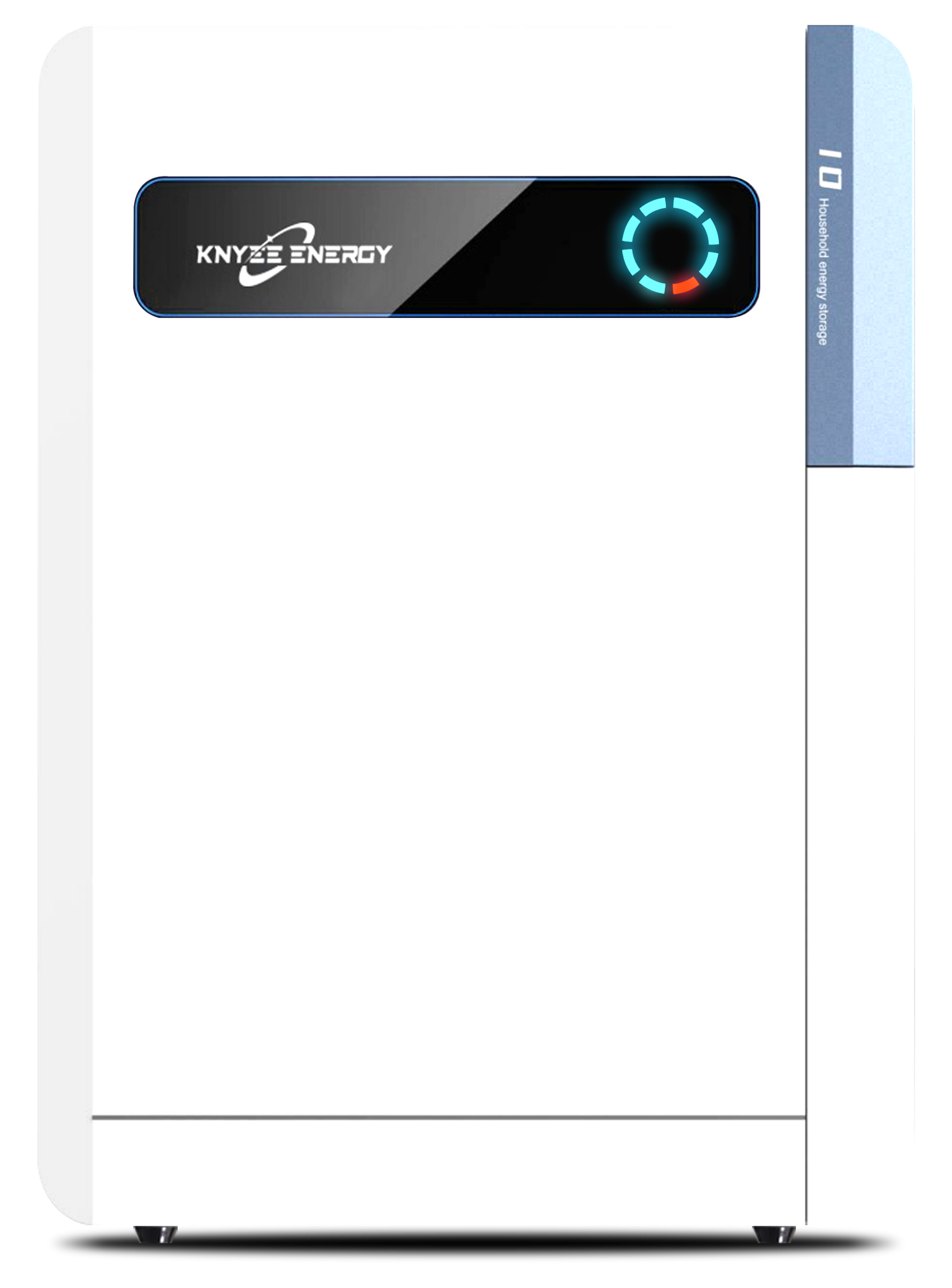

The KNYEE ENERGY KNY51200 Floor Type Energy Storage Battery is a high-capacity lithium iron phosphate (LiFePO4) battery designed for residential, commercial, and industrial energy storage applications. With a nominal capacity of 200Ah and a rated energy storage of 10.24kWh, this robust battery offers exceptional safety, longevity, and compatibility with mainstream inverters. Its advanced BMS management, IP65 protection rating, and expandable design make it an ideal solution for solar energy storage, backup power systems, and off-grid installations.
---
Key Features
Advanced Energy Storage Technology
- High-Quality LiFePO4 Cells: Ensures superior safety, long cycle life (6000 cycles at 80% Depth of Discharge), and environmental sustainability.
- Expandable Capacity: Supports up to 15 units in parallel enabling scalable energy storage solutions tailored to specific needs.
- Plug-and-Play Design: Simplifies installation and integration into existing solar systems.
Safe and Reliable Performance
- Built-in Fire Safety: Equipped with advanced safeguards such as overcharge, over-discharge, short circuit, and thermal protection.
- Wide Operating Temperature Range: Operates efficiently in temperatures ranging from -20°C to 60°C (discharge) and 0°C to 55°C (charge).
- Protection Rating: IP65 ensures resistance to dust and water ingress, making it suitable for both indoor and outdoor use.
User-Friendly Design
- LED Display: Provides real-time information on State of Charge (SOC) and battery status, ensuring easy monitoring.
- Advanced BMS Management: Monitors and optimizes battery performance in real-time, extends service life, and enables communication via protocols (CAN/RS485/RS232).
- Floor-Mount Installation: Designed for efficient space utilization and easy setup in residential or commercial environments.
Additional Features
- Corrosion-Resistant Materials: Durable shell made of high-quality sheet metal ensures long-term reliability.
- Self-Discharge Rate: Less than 2% per month, ensuring the battery retains its charge during periods of inactivity.
---
Product Specifications
- Nominal Voltage: 51.2V DC
- Voltage Range: 44V–58.4V
- Nominal Capacity: 200Ah
- Rated Capacity: 10.24kWh
- Cycle Life: 6000 cycles @ 80% DOD
- Dimensions: 800mm x 580mm x 220mm
- Weight: 101kg (net) / 120kg (gross)
- Shell Material: Sheet Metal
- Protection Rating: IP65
Charging Parameters
- Recommended Charging Current: 100A
- Max. Charging Current: 200A
- Recommended Charging Voltage: 58V
- Max. Charging Voltage: 58.4V
Discharging Parameters
- Recommended Discharging Current: 100A
- Max. Discharging Current: 200A
- Recommended Discharge Cut-off Voltage: 44V
- Battery Cut-off Voltage: 43.2V
- Battery Recovery Voltage: 48V
Environmental Specifications
- Operating Temperature Range:
- Charge: 0°C to 55°C
- Discharge: -20°C to 60°C
- Storage Temperature Range: -20°C to 45°C
- Humidity: 5%–95% (non-condensing)
Certifications
- Safety Certification: CE
- Transportation Safety Certification: UN38.3, Class 9
---
Applications
- Residential Use: Ideal for home energy storage systems, providing reliable backup power and reducing reliance on the grid.
- Commercial Use: Suitable for enterprises, offices, and industrial facilities requiring scalable energy storage solutions.
- Off-Grid Installation: Perfect for remote areas where grid access is restricted or unavailable.
- Emergency Backup Power: Ensures uninterrupted power supply during grid outages, supporting critical appliances and devices.
---
Benefits
- High Efficiency: Advanced LiFePO4 cells ensure maximum energy storage and minimal losses.
- Durability: With a lifecycle of 6000 cycles at 80% DOD, this battery offers long-term reliability and reduced maintenance costs.
- Safety: Corrosion-resistant materials, advanced BMS management, and temperature-controlled heat dissipation ensure safe operation.
- Scalability: Expandable design allows for flexible capacity expansion to meet growing energy demands.
- Versatility: Compatible with mainstream inverters and suitable for various applications, including residential, commercial, and off-grid use.
---
Why Choose the KNYEE ENERGY KNY51200?
- Combines LiFePO4 cells, expandable design, and advanced BMS control for superior performance and durability.
- Backed by rigorous testing and certifications such as CE, UN38.3, and Class 9, ensuring safety, reliability, and compliance with global standards.
- Suitable for residential, commercial, and off-grid applications, providing flexibility and value.
- Compact and lightweight design makes it easy to install and transport.
---
Upgrade Your Energy Storage System
Invest in the KNYEE ENERGY KNY51200 Floor Type Energy Storage Battery for a reliable, efficient, and eco-friendly energy storage solution.
Order now and experience the next generation of energy storage technology with KNYEE ENERGY.
---
From SOLAR.ID of Jakarta, Indonesia
Professional Installation Available all over Indonesia
Professional solar panel installation ensures safety, efficiency, and compliance with warranties and regulations. Experts optimize performance, handle permits, and prevent damage, saving you time and maximizing energy output for long-term savings.
