KNYEE ENERGY - KNY24150

Brand: KNYEE ENERGY
Model: KNY24150

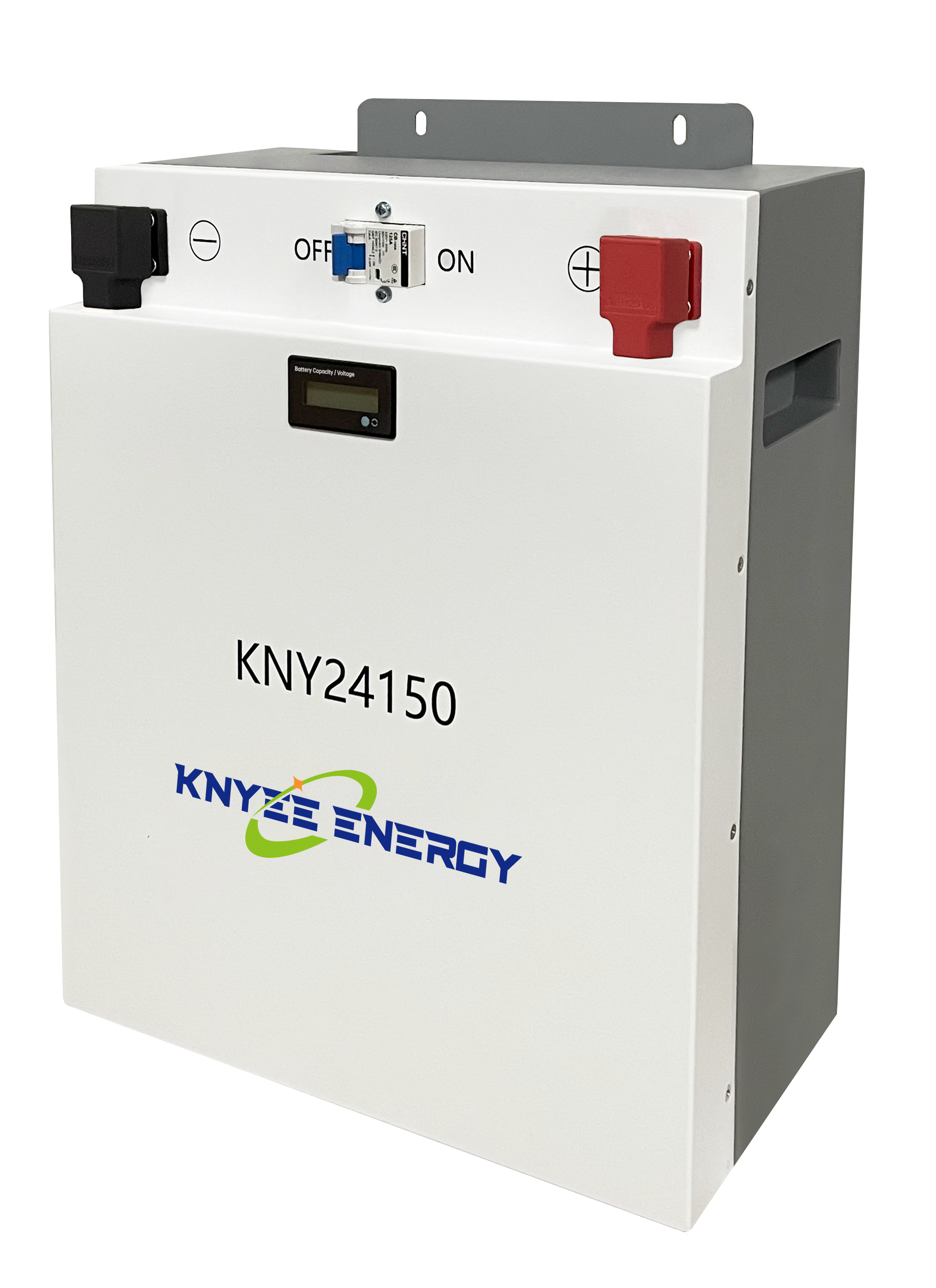

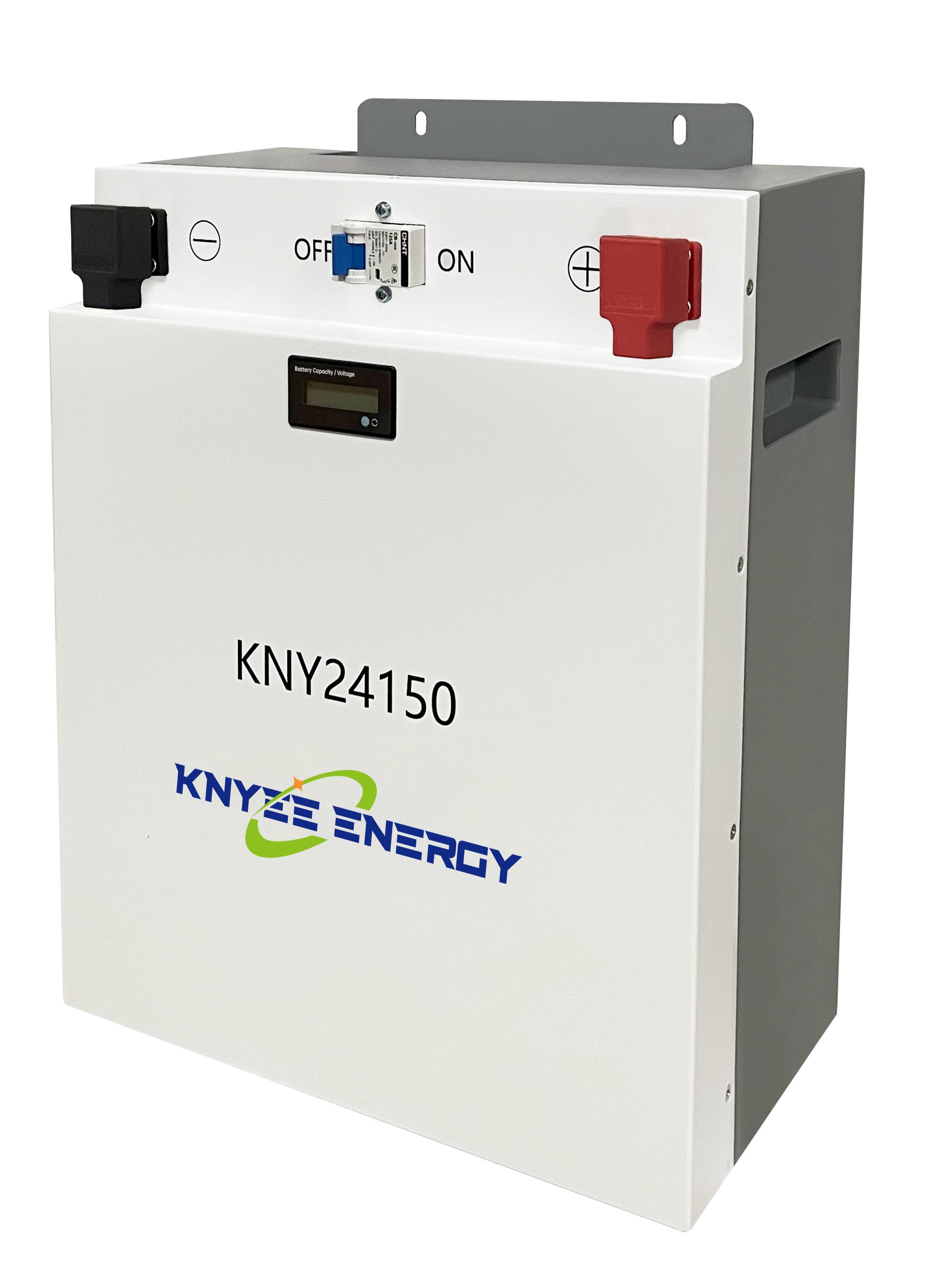

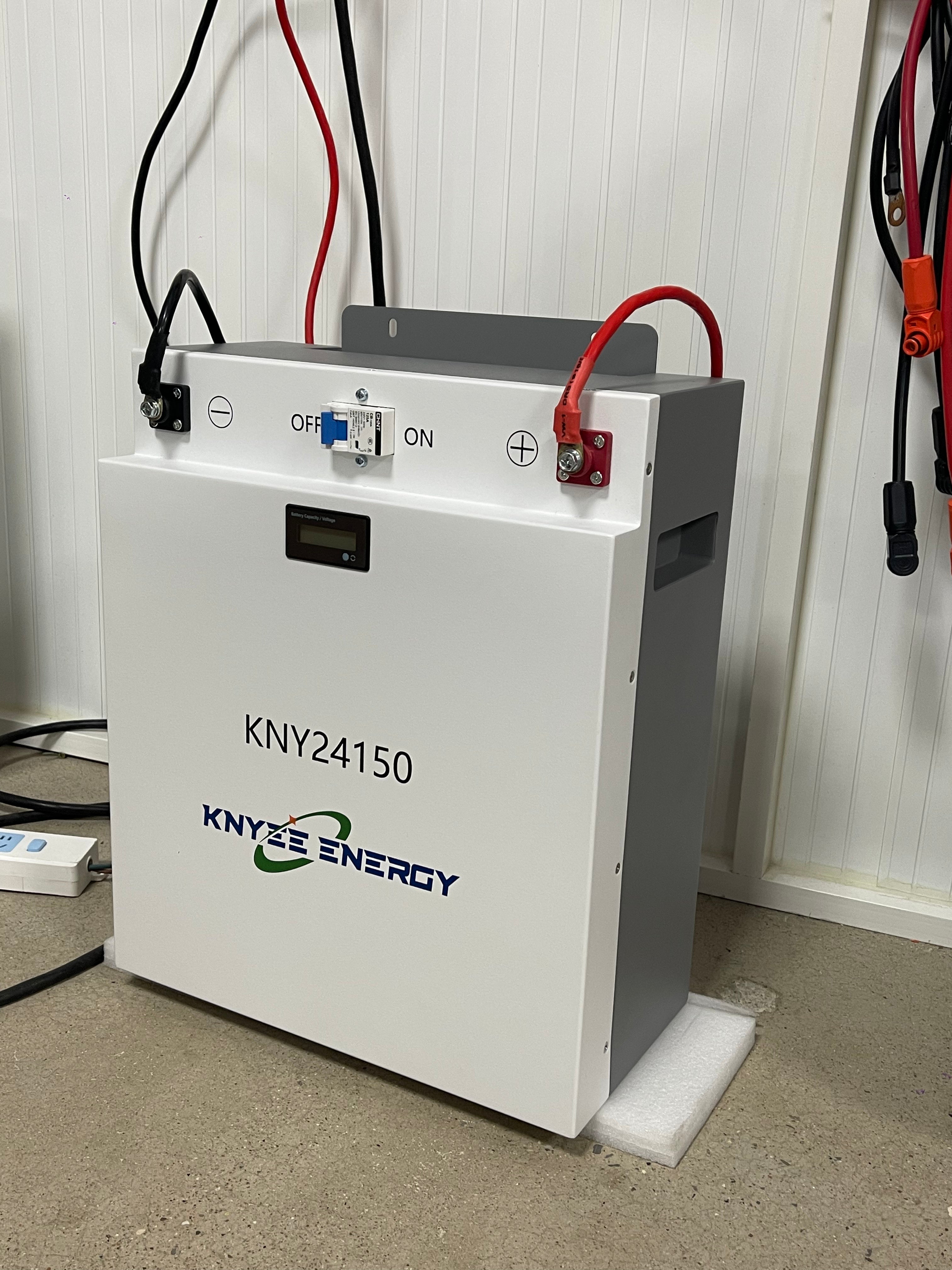

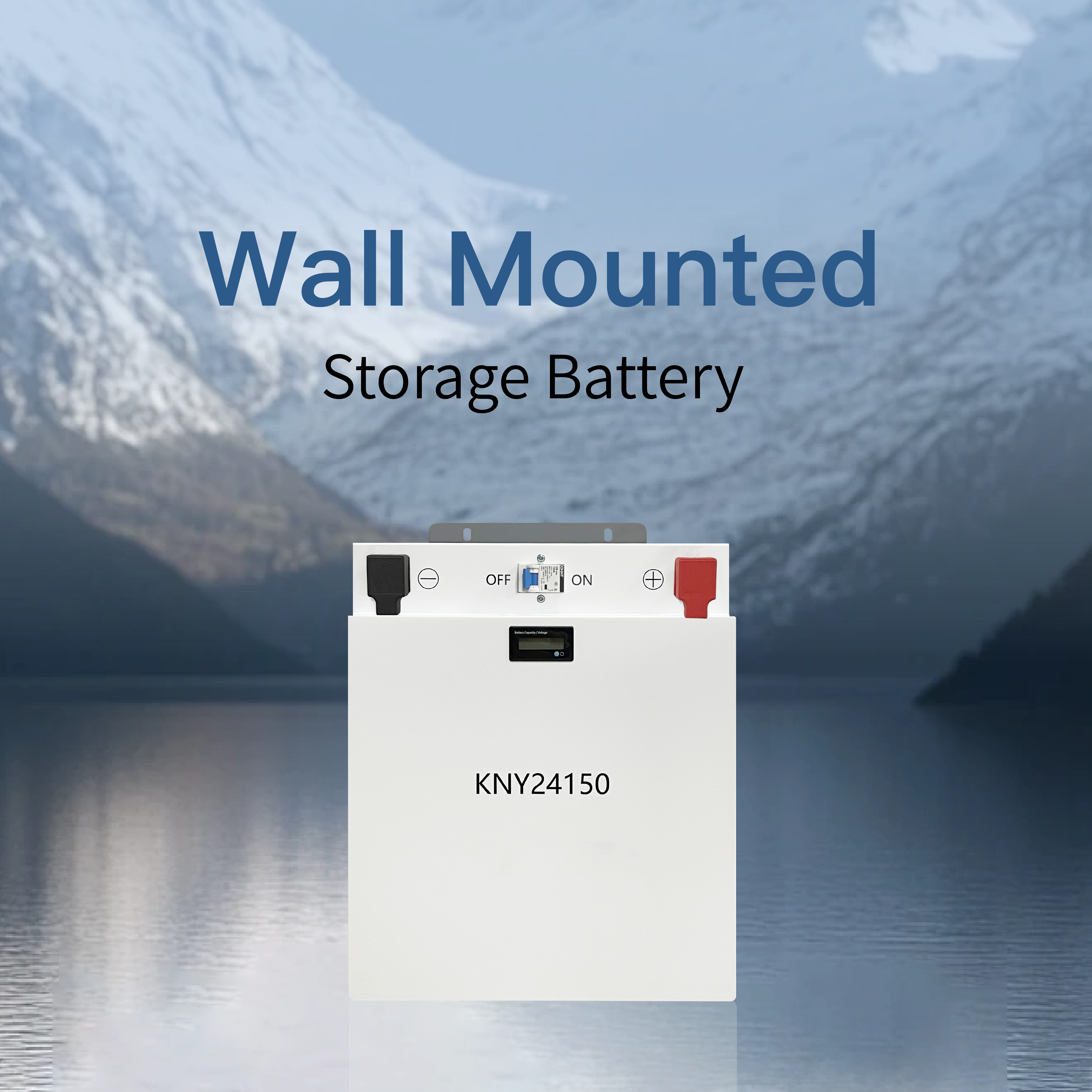

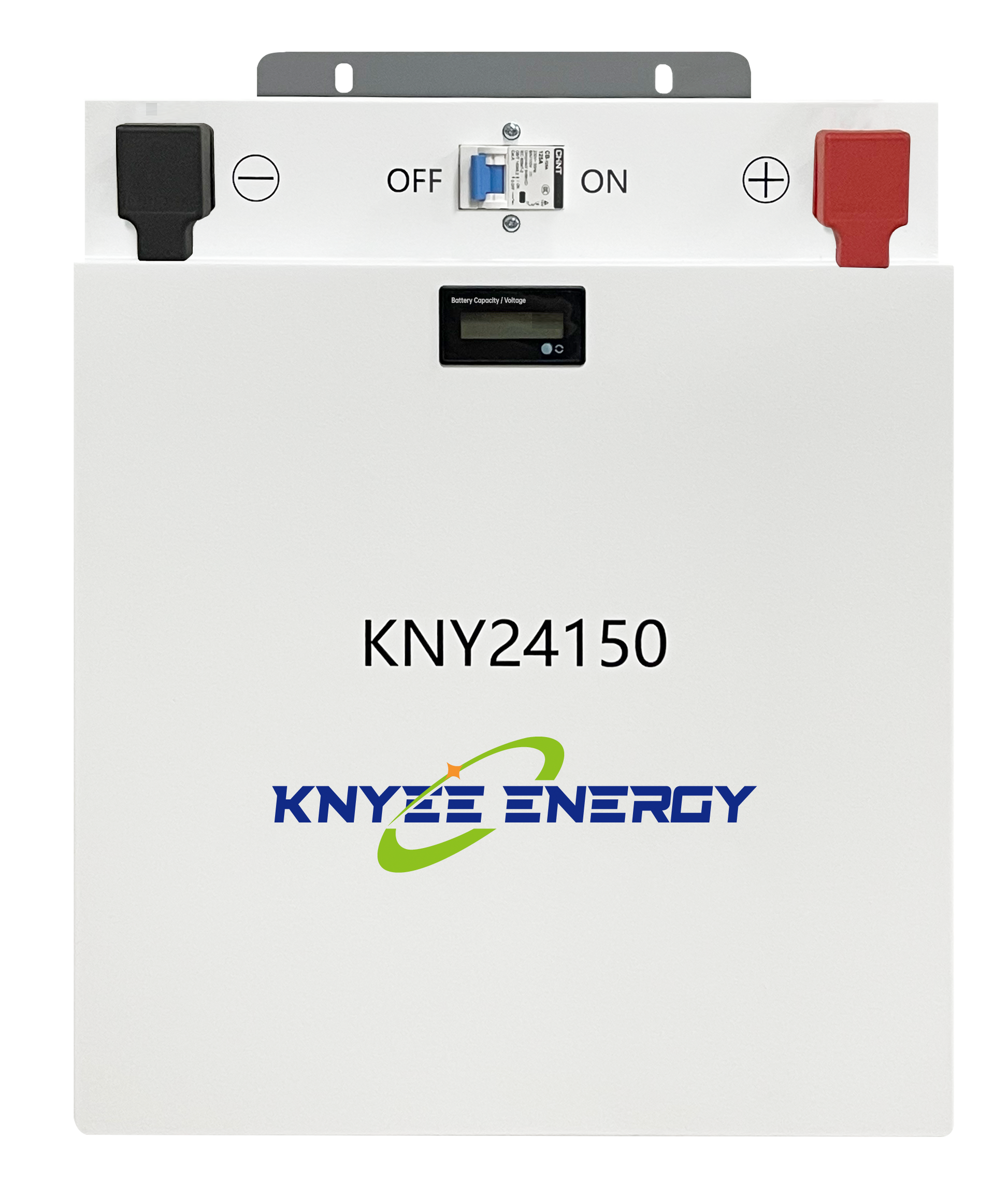

The KNYEE ENERGY KNY24150 Portable Storage Battery is a versatile and reliable energy storage solution designed for residential, recreational, and commercial use. With a capacity of 3.84kWh (25.6V, 150Ah), this portable lithium iron phosphate (LiFePO4) battery offers exceptional safety, longevity, and compatibility with mainstream inverters. Its compact design, advanced BMS management, and corrosion-resistant materials make it ideal for home use, RVs, marine applications, outdoor camping, and more.

---

* Minimum Order Quantity (MOQ) of 5 units *

Key Features

Advanced Energy Storage Technology

• High-Quality LiFePO4 Cells: Ensures superior safety, long cycle life (4000 cycles at 90% Depth of Discharge), and environmental sustainability.
• High Energy Density: Delivers 3.84kWh of energy in a compact and lightweight design (440mm x 370mm x 190mm), making it portable and space-efficient.
• Scalable Compatibility: Compatible with mainstream inverters, ensuring seamless integration into existing solar systems.

Safe and Reliable Performance

• Built-in Fire Safety: Equipped with advanced safeguards such as overcharge, over-discharge, short circuit, and thermal protection.
• Wide Operating Temperature Range: Operates efficiently in temperatures ranging from -20°C to 60°C (discharge) and 0°C to 55°C (charge).

• Protection Rating: IP20 ensures resistance to dust and water ingress, making it suitable for indoor and outdoor use.

User-Friendly Design

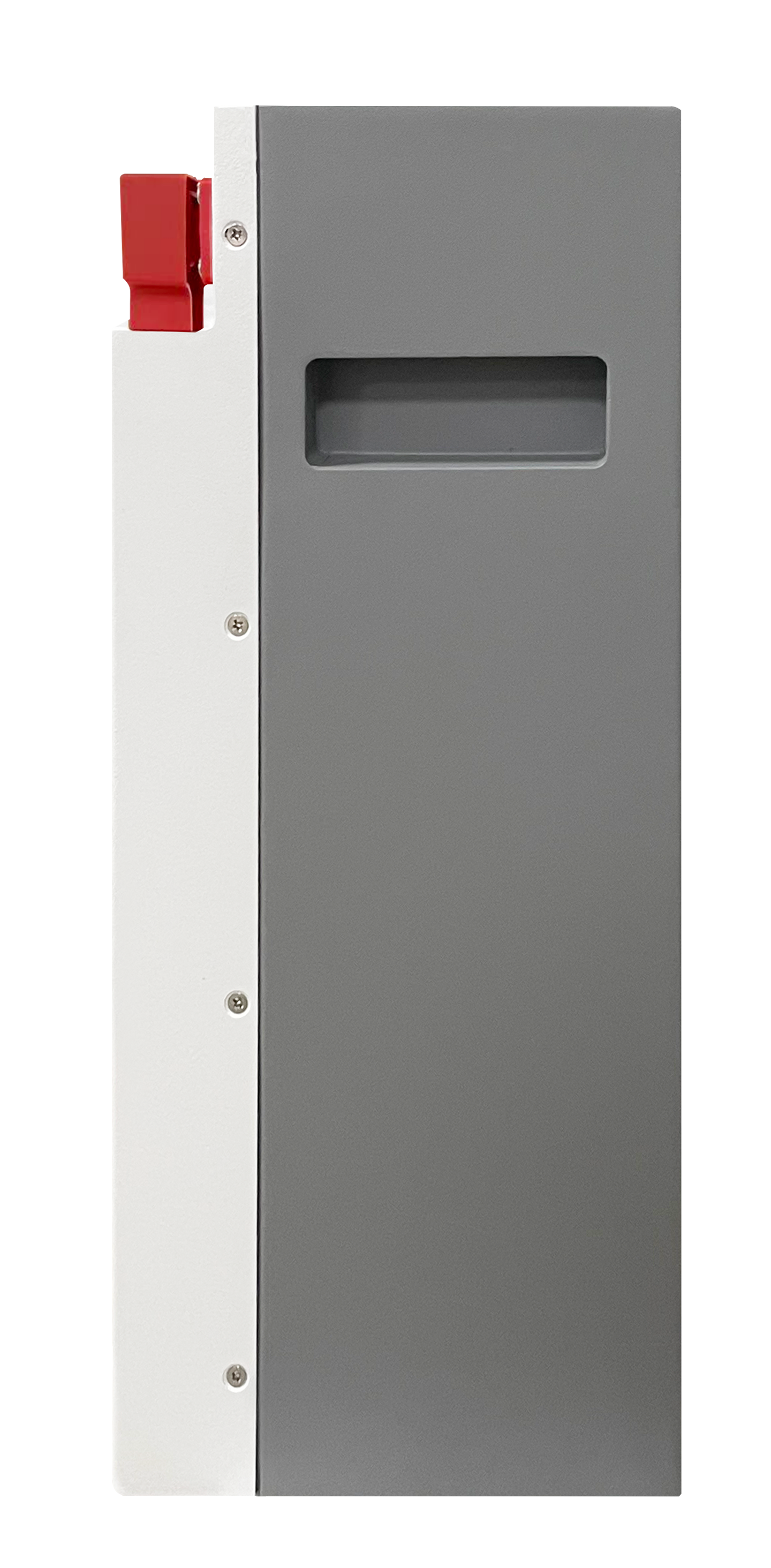

• Portable Handle: Designed for easy movement, making it convenient for outdoor and recreational use.
• Advanced BMS Management: Monitors and optimizes battery performance in real-time, extends service life, and enables remote control via mobile app.

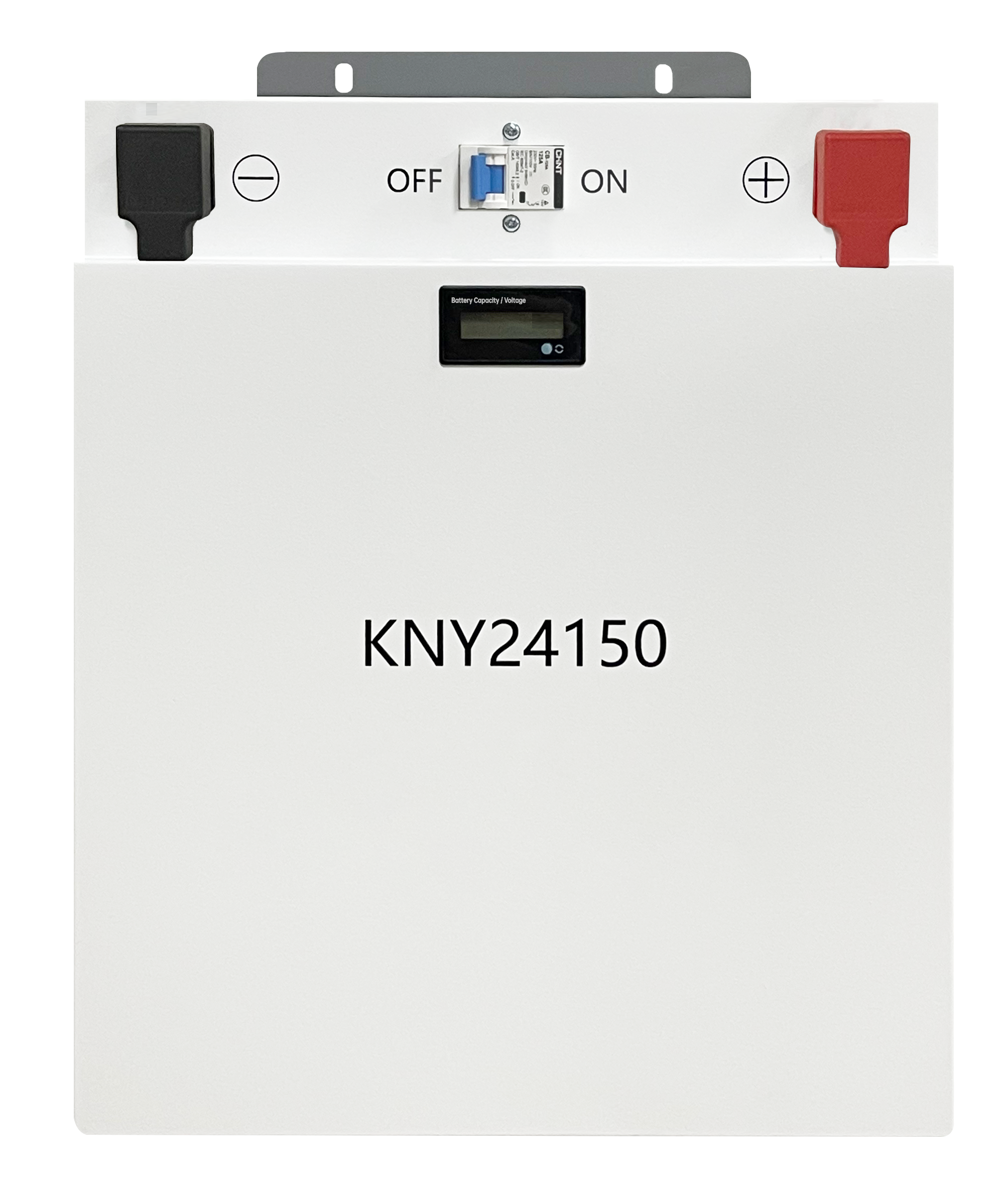

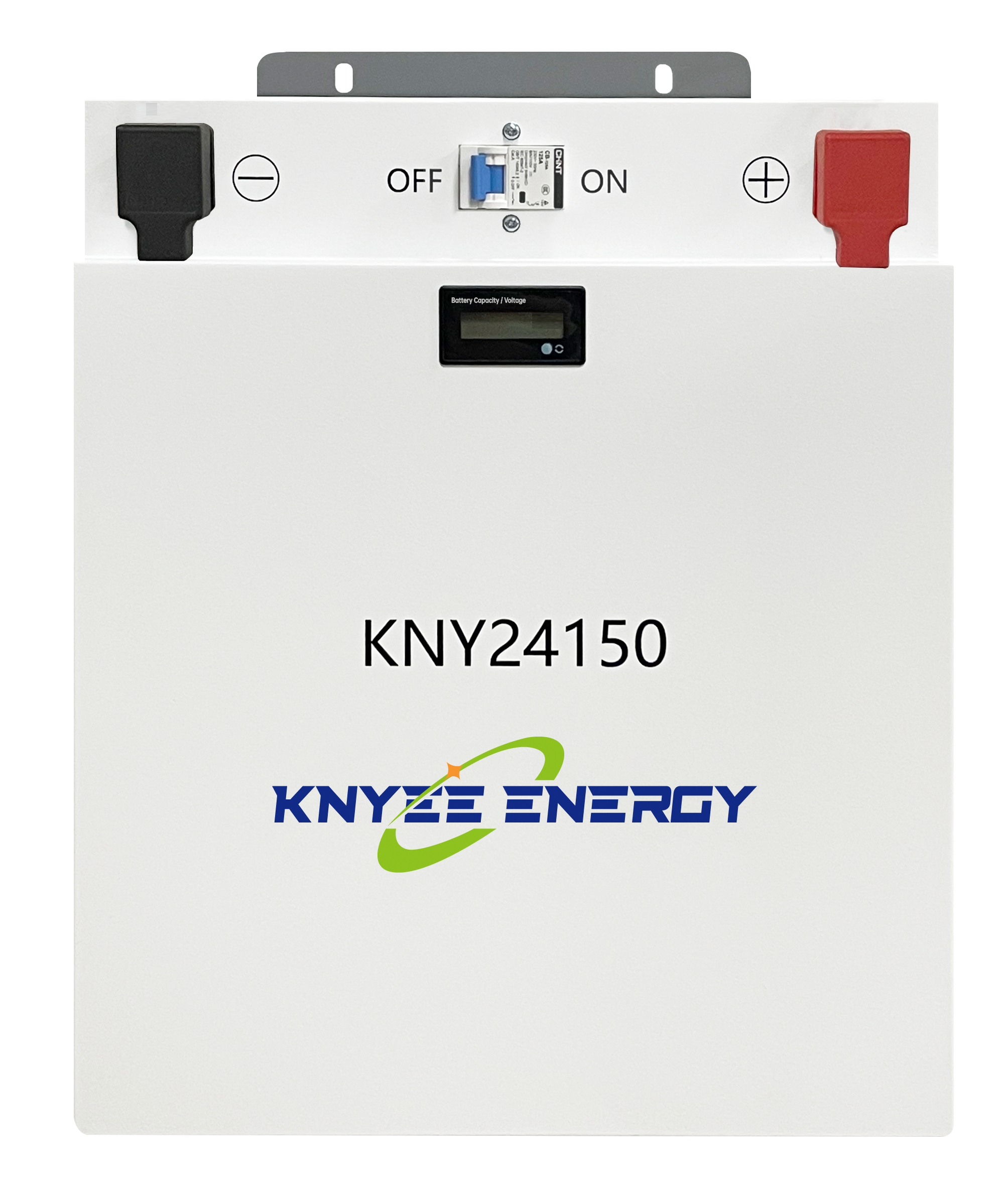

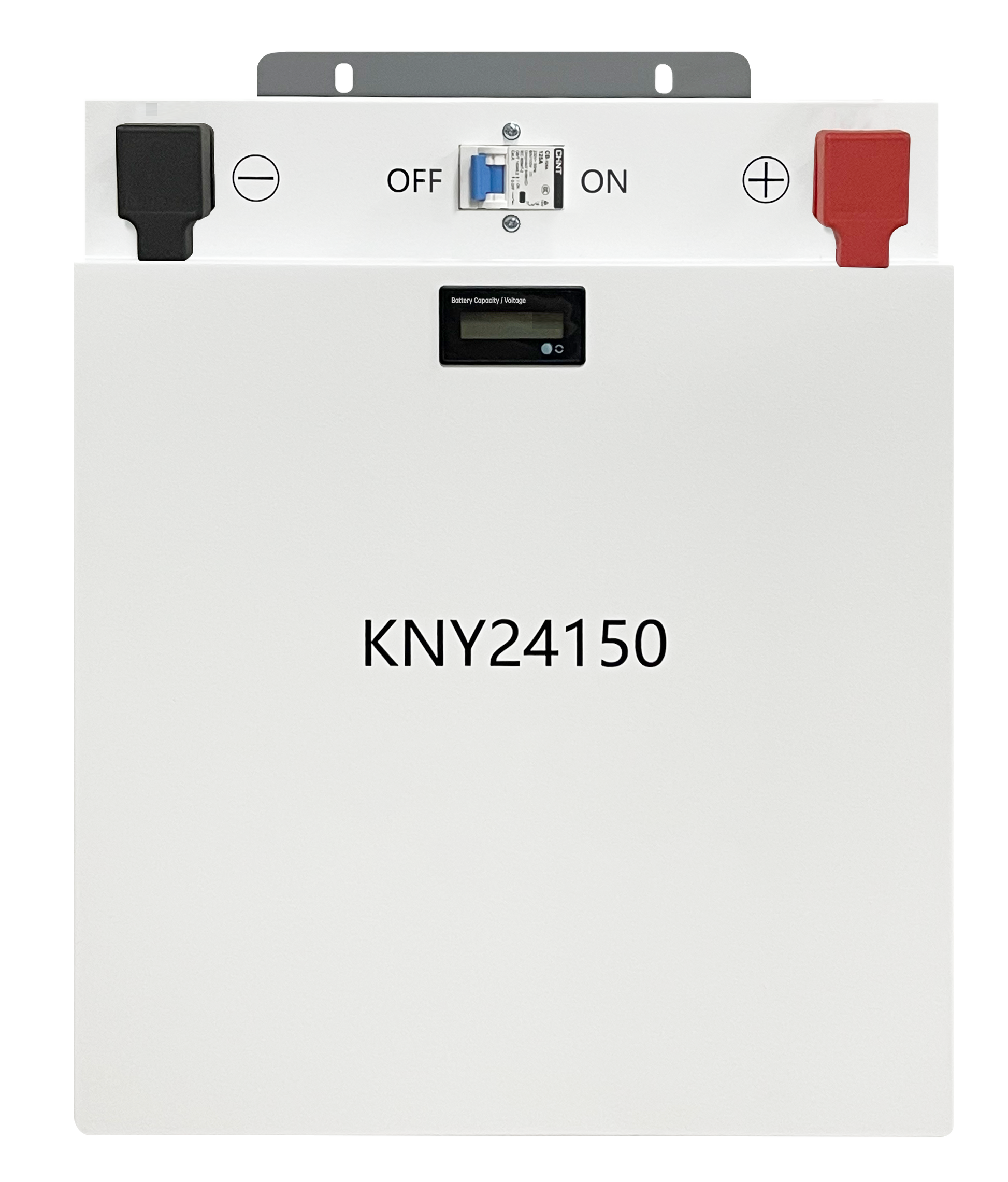

• Quick Installation: Features plug-and-play terminals (+/-) and supports parallel connections for scalable energy storage solutions.

Additional Features

• Corrosion-Resistant Materials: Durable shell made of high-quality sheet metal ensures long-term reliability.
• Self-Discharge Rate: Less than 2% per month, ensuring the battery retains its charge during periods of inactivity.

---

Product Specifications

• Nominal Voltage: 25.6Vdc
• Voltage Range: 20V–29.2V
• Nominal Capacity: 150Ah
• Rated Capacity: 3.84kWh
• Cycle Life: 4000 cycles @ 90% DOD
• Dimensions: 440mm x 370mm x 190mm
• Weight: 32.6kg
• Shell Material: Sheet Metal
• Protection Rating: IP20

Charging Parameters

• Recommended Charging Current: 50A
• Max. Charging Current: 100A
• Recommended Charging Voltage: 25.6V
• Max. Charging Voltage: 29.2V

Discharging Parameters

• Recommended Discharging Current: 50A
• Max. Discharging Current: 100A

Environmental Specifications

• Operating Temperature Range:
• Charge: 0°C to 55°C
• Discharge: -20°C to 60°C
• Storage Temperature Range: -20°C to 45°C
• Humidity: 5%–95% (non-condensing)

Certifications

• Safety Certification: CE

• Transportation Safety Certification: UN38.3, Class 9

---

Applications

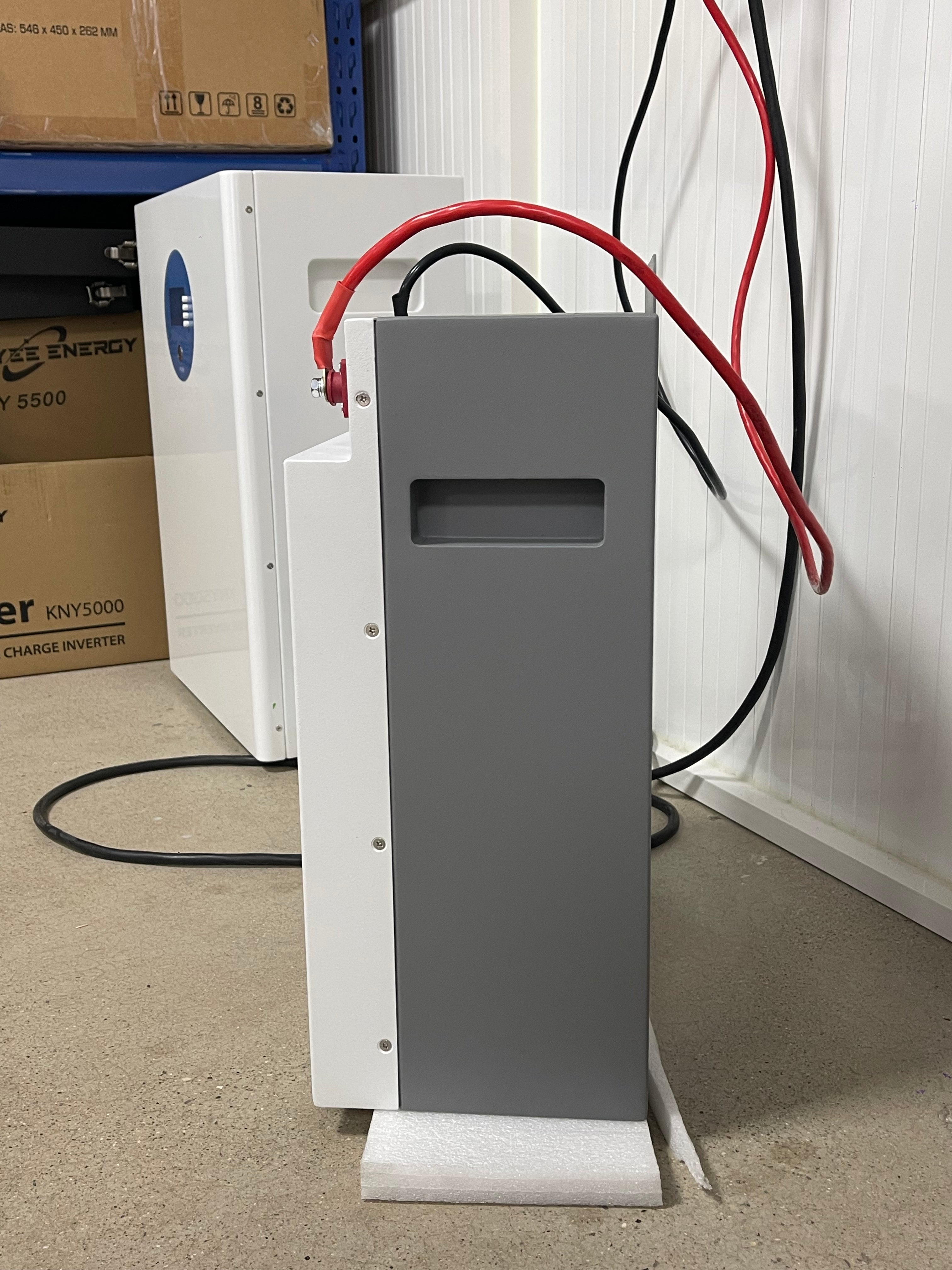

• Residential Use: Ideal for home energy storage systems, providing reliable backup power and reducing reliance on the grid.
• Recreational Use: Suitable for RVs, boats, and marine applications, ensuring uninterrupted power during travel.
• Outdoor Camping: Perfect for outdoor enthusiasts, offering portable and reliable energy for camping trips.
• Emergency Backup Power: Ensures uninterrupted power supply during grid outages, supporting critical appliances and devices.

---

Benefits

• High Efficiency: Advanced LiFePO4 cells ensure maximum energy storage and minimal losses.
• Durability: With a lifecycle of 4000 cycles at 90% DOD, this battery offers long-term reliability and reduced maintenance costs.
• Safety: Corrosion-resistant materials, advanced BMS management, and temperature-controlled heat dissipation ensure safe operation.
• Portability: Lightweight design and integrated handles make it easy to carry and transport.
• Versatility: Compatible with mainstream inverters and suitable for various applications, including residential, recreational, and commercial use.

---

Why Choose the KNYEE ENERGY KNY24150?

• Combines LiFePO4 cells, portable design, and advanced BMS control for superior performance and durability.
• Backed by rigorous testing and certifications such as CE, UN38.3, and Class 9, ensuring safety, reliability, and compliance with global standards.
• Suitable for residential, recreational, and commercial applications, providing flexibility and value.
• Compact and lightweight design makes it easy to install and transport.

---

Upgrade Your Energy Storage System

Invest in the KNYEE ENERGY KNY24150 Portable Storage Battery for a reliable, efficient, and eco-friendly energy storage solution.

Order now and experience the next generation of portable energy storage technology with KNYEE ENERGY.

---

From SOLAR.ID of Jakarta, Indonesia
