Brand: GEOFF
Model: LifePO4-16.38Kw (White Model)
The GEOFF LifePO4-16.38Kw (White Model) is a high-capacity vertical lithium iron phosphate (LiFePO4) battery, specifically designed for residential and commercial energy storage. With an impressive capacity of 16.38kWh (51.2V, 320Ah), this battery offers a reliable, efficient, and scalable solution for solar energy storage, backup power, and off-grid systems. Its advanced safety features, long lifecycle, and compatibility with various inverters make it an ideal choice for modern households and businesses seeking energy independence.
---
* Minimum Order Quantity (MOQ) of 5 units *
Key Features
Advanced Energy Storage Technology
- High-Quality LiFePO4 Cells: Ensures superior safety, long cycle life (8000 cycles at 80% Depth of Discharge), and environmental sustainability.
- High Energy Density: Delivers 16.38kWh of energy in a compact design (430mm x 328mm x 668mm), making it space-efficient and versatile.
- Scalable Capacity: Supports up to 15 units in parallel, enabling flexible energy storage solutions tailored to your specific needs.
- Top-Tier Battery Cells: Only new A-grade cells from the top three Chinese brands are used, ensuring low heat generation, long lifespan, and extended cycle life.
Safe and Reliable Performance
- Built-in Fire Safety: Equipped with advanced safeguards such as overcharge, over-discharge, short circuit, and thermal protection.
- Wide Operating Temperature Range: Operates efficiently in temperatures ranging from -20°C to 60°C (discharge) and 0°C to 55°C (charge).
- Protection Rating: IP55 ensures resistance to dust and water ingress, making it suitable for indoor and outdoor eaves installations.
User-Friendly Design

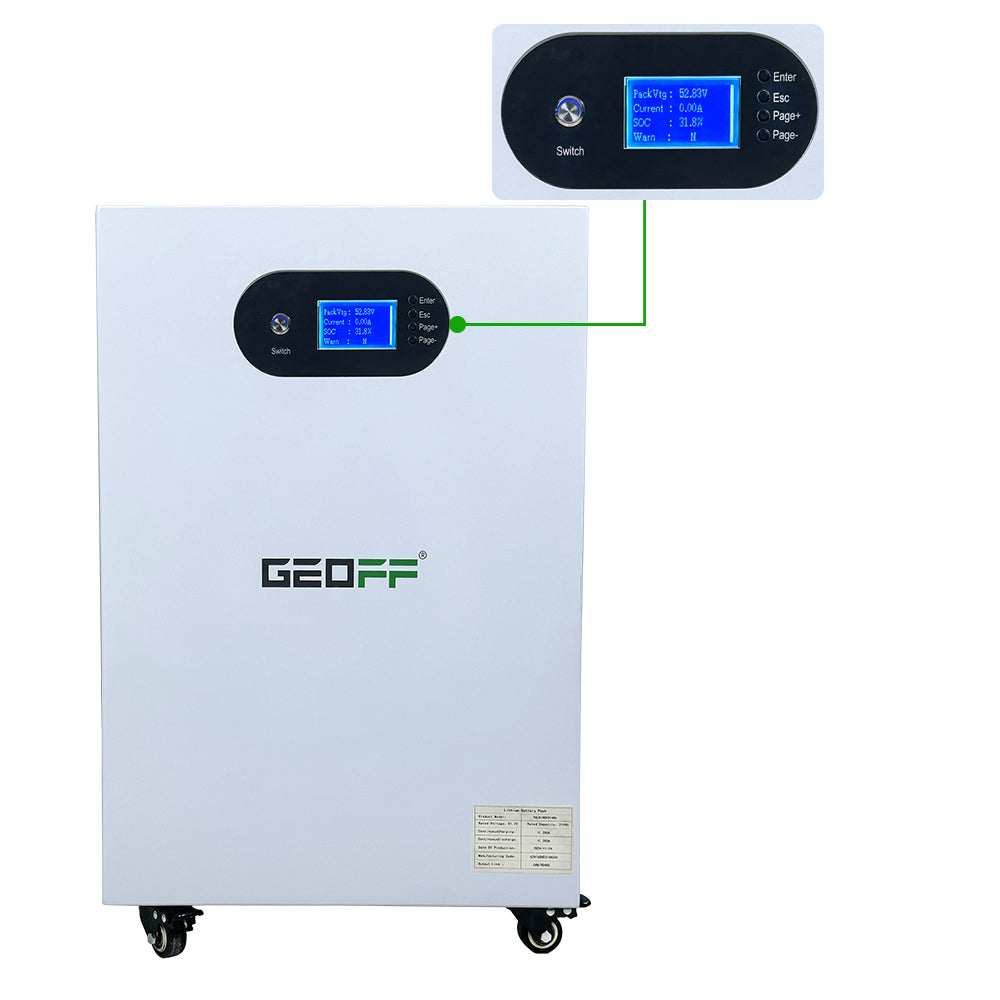

- LED Display: Provides real-time information on State of Charge (SOC) and battery status, ensuring easy monitoring.
- Quick Installation: Features plug-and-play terminals (+/-) and RS485 parallel connection for seamless integration into existing solar systems.
- Natural Cooling: Designed for efficient heat dissipation without the need for additional cooling systems.
Additional Features
- Balancing Function: Maintains uniform cell voltage for optimal performance and extended battery life.
- Self-Discharge Rate: Less than 2% per month, ensuring the battery retains its charge during periods of inactivity.
- Communication Interfaces: RS232, CAN, RS485 for seamless monitoring and control.
- Firmware Updates: Supports firmware updates via built-in Bluetooth Low Energy (BLE).
---
Product Specifications
- Model Number: GEOFF-16.38LW
- Nominal Voltage: 51.2V
- Rated Capacity: 320Ah
- Energy Storage: 16.38kWh
- Dimensions: 430mm x 328mm x 668mm
- Weight: 115kg
- Charging Cut-off Voltage: 56.16V
- Discharge Cut-off Voltage: 45.6V
- Recommended Charge/Discharge Current: 150A
- Maximum Continuous Charge/Discharge Current: 200A
- Instantaneous Discharge Current: 400A (3 seconds)
- Cycle Life: 8000 cycles @ 80% DOD
-
Operating Temperature Range:
- Charge: 0°C to 55°C
- Discharge: -20°C to 60°C -
Storage Environment:
- Short-term (up to 3 months): 20°C – 45°C (50% SOC)
- Long-term (over 3 months): 25°C ± 3°C, Humidity: 65% ± 20% RH - Cooling Method: Natural convection
- Protection Rating: IP55
- Certifications: CE, UN38.3, MSDS, UL
---
Applications
- Residential Use: Ideal for home solar energy storage systems, providing reliable backup power and reducing reliance on the grid.
- Commercial Use: Suitable for businesses, offices, and industrial facilities requiring scalable energy storage solutions.
- Off-Grid Installations: Perfect for remote locations where access to the grid is limited or unavailable.
- Emergency Backup Power: Ensures uninterrupted power supply during grid outages, supporting critical appliances and devices.
---
Benefits
- High Efficiency: Advanced LiFePO4 cells ensure maximum energy storage and minimal losses.
- Scalability: Allows for flexible capacity expansion to meet growing energy demands.
- Durability: With a lifecycle of 8000 cycles at 80% DOD, this battery offers long-term reliability and reduced maintenance costs.
- Safety: Vertical cell assembly, temperature-controlled heat dissipation, and high-temperature resistance ensure safe operation.
- Easy Integration: Quick plug-and-play design simplifies installation and reduces setup time.
- Cost Optimization: Produced in-house, offering 20% cost savings compared to other brands of similar quality.
---
Performance Highlights
- Balancing Function: Maintains uniform cell voltage for optimal performance and extended battery life.
- Self-Discharge Rate: Less than 2% per month, ensuring the battery retains its charge during periods of inactivity.
- Communication Interfaces: RS232, CAN, RS485 for seamless monitoring and control.
- Firmware Updates: Supports firmware updates via built-in Bluetooth Low Energy (BLE).
---
Points for Attention
- Do not short-circuit the battery.
- Avoid exposing the LCD screen to direct sunlight, as it may damage internal components.
- For long-term storage, check the battery's power level every three months. If the battery power drops below 10%, recharge it to at least 30% SOC (State of Charge).
- Suggested charging temperature range: 15°C to 45°C for optimal performance.
---
Why Choose the GEOFF LifePO4-16.38Kw (White Model)?
- Combines LiFePO4 cells, natural cooling, and advanced BMS control for superior performance and durability.
- Backed by rigorous testing and certifications such as CE, UN38.3, MSDS, and UL, ensuring safety, reliability, and compliance with global standards.
- Suitable for residential, commercial, off-grid, and specialized applications, providing flexibility and value.
- Compact and lightweight vertical design makes it easy to install in homes, offices, or commercial spaces.
---
Upgrade Your Energy Storage System
Invest in the GEOFF LifePO4-16.38Kw (White Model) for a reliable, efficient, and eco-friendly energy storage solution.
Order now and let the light of safety accompany you with GEOFF LifePO4-16.38KW.
---
