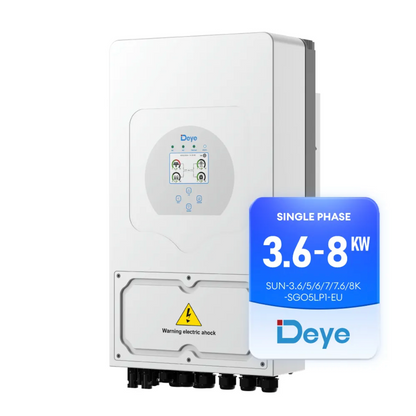

Deye - Sun-3.6/5/6/7/7.6/8K-SG05LP1-EU Hybrid Solar Inverter

Brand: Deye
Model: Sun-3.6/5/6/7/7.6/8K-SG05LP1-EU Hybrid Solar Inverter

---

Overview

The Deye Sun Series Hybrid Solar Inverter is a high-performance single-phase inverter designed for residential and small commercial applications. Available in power ratings of 3.6kW, 5kW, 6kW, 7kW, 7.6kW, and 8kW, this inverter supports both lead-acid and lithium-ion batteries, offering flexibility for energy storage solutions. With an efficiency of up to 98%, advanced MPPT technology, and a robust IP65 protection rating, the Deye Sun Series ensures reliable performance in diverse environmental conditions.

---

Key Features

• Advanced Performance- High Efficiency: Achieves a maximum efficiency of 98% and Euro efficiency of 96.5%, ensuring minimal energy loss during conversion.
• MPPT Technology: Equipped with dual MPPT trackers, each capable of handling two strings, optimizing energy harvesting from solar panels with varying orientations or shading conditions.
• Wide MPPT Voltage Range: Operates within 150V–425V, allowing for flexible solar panel configurations.
• Self-Adaptive Charging Strategy: Automatically adapts to lithium-ion battery BMS protocols, ensuring safe and efficient charging.

Battery Compatibility

• Supports lead-acid and lithium-ion batteries with a voltage range of 40V–60V.
• High charging and discharging currents (up to 190A) for rapid energy transfer.

Safety and Protection

• Comprehensive protection mechanisms include:
• DC Polarity Reverse Connection Protection
• AC Output Overcurrent Protection
• AC Output Overvoltage Protection
• AC Output Short Circuit Protection
• Thermal Protection
• DC Terminal Insulation Impedance Monitoring
• DC Component Monitoring
• Ground Fault Current Monitoring
• Power Network Monitoring
• Island Protection Monitoring
• Earth Fault Detection
• DC Input Switch
• Over-voltage Load Drop Protection
• Residual Current (RCD) Detection
• Surge Protection Level II (DC & AC)

User-Friendly Design

• LED Display: Provides real-time information on system status, SOC (State of Charge), and operational parameters.
• Communication Interfaces: Includes Wi-Fi, RS485, and CAN for seamless monitoring and control via mobile apps or third-party systems.
• IP65 Rating: Ensures dust and water resistance, making it suitable for indoor and outdoor installations.

Compact and Lightweight

• Dimensions: 330mm × 580mm × 232mm (excluding connectors and brackets).
• Weight: 24.9 kg, making it easy to handle and install.

Environmental Adaptability

• Wide Operating Temperature Range: Functions reliably from -40°C to +60°C, with derating above 45°C.
• Low Noise Operation: Noise levels below 30 dB, ensuring quiet operation in residential environments.

---

Technical Specifications

General Information

• Output Type: Single Phase
• Inverter Efficiency: 98%
• Input Voltage: 48V
• Output Voltage: 220/230V (0.85Un–1.1Un)
• Output Current: 10–100A
• Output Frequency: 50/60Hz
• Size: 330 × 580 × 232 mm
• Weight: 24.9 kg
• MPPT Voltage Range: 150–425V
• Battery Voltage: 40–60V
• Working Temperature Range: -40°C to +60°C (derating above 45°C)
• Noise (dB): <30 dB
• Protection Degree: IP65
• Communication Interface: RS485, CAN, Wi-Fi

PV Input Data

• Max. PV Input Power: 4680–10400W (model-dependent)
• Max. PV Input Voltage: 500V
• Start-up Voltage: 125V
• Rated PV Input Voltage: 370V
• Max. Operating PV Input Current: 13+13A / 26+26A (model-dependent)
• Max. Input Short-Circuit Current: 17+17A / 34+34A (model-dependent)

AC Input/Output Data

• Rated AC Input/Output Active Power: 3600–8000W (model-dependent)
• Max. AC Input/Output Apparent Power: 3960–8800VA (model-dependent)
• Rated AC Input/Output Current: 16.4–36.4A (model-dependent)
• Max. AC Input/Output Current: 18–40A (model-dependent)
• Max. Continuous AC Passthrough (grid to load): 35–50A (model-dependent)
• Peak Power (off-grid): 2× rated power for 10 seconds

Efficiency

• Max. Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99%

Certifications

• Compliant with IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
• Safety Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

---

Applications

• Residential Use: Ideal for home solar systems, providing reliable backup power and reducing reliance on the grid.
• Commercial Use: Suitable for small businesses, offices, and industrial facilities requiring scalable energy solutions.
• Off-Grid Installations: Perfect for remote areas where grid access is limited or unavailable.
• Emergency Backup Power: Ensures uninterrupted power supply during grid outages, supporting critical appliances and devices.

---

Benefits

1. High Efficiency: Advanced MPPT and inverter technologies ensure maximum energy utilization and minimal losses
2. Versatility: Compatible with lead-acid and lithium-ion batteries, as well as various solar panel configurations.
3. Durability: Robust design with IP65 protection and comprehensive safety features ensures long-term reliability.
4. Scalability: Modular design allows for easy integration into existing systems or expansion to meet growing energy demands.
5. Global Compliance: Meets stringent international standards, including IEC 61727, IEC 62116, CEI 0-21, EN 50549, G99, and more.

---

Why Choose the Deye Sun Series?

• Cutting-Edge Technology: Combines high-efficiency inverters, intelligent MPPT, and self-adaptive battery management for optimal performance.
• Cost Optimization: Competitive pricing without compromising on quality or features.
• Safety Assurance: Advanced protection mechanisms and compliance with global safety standards ensure peace of mind.
• Longevity: Designed for durability, with a warranty of up to 10 years for added confidence.

---

Order Now

Upgrade your energy system with the Deye Sun Series Hybrid Solar Inverter and experience unparalleled efficiency, reliability, and flexibility.

For inquiries and orders, contact SOLAR.ID in Jakarta, Indonesia.

---
