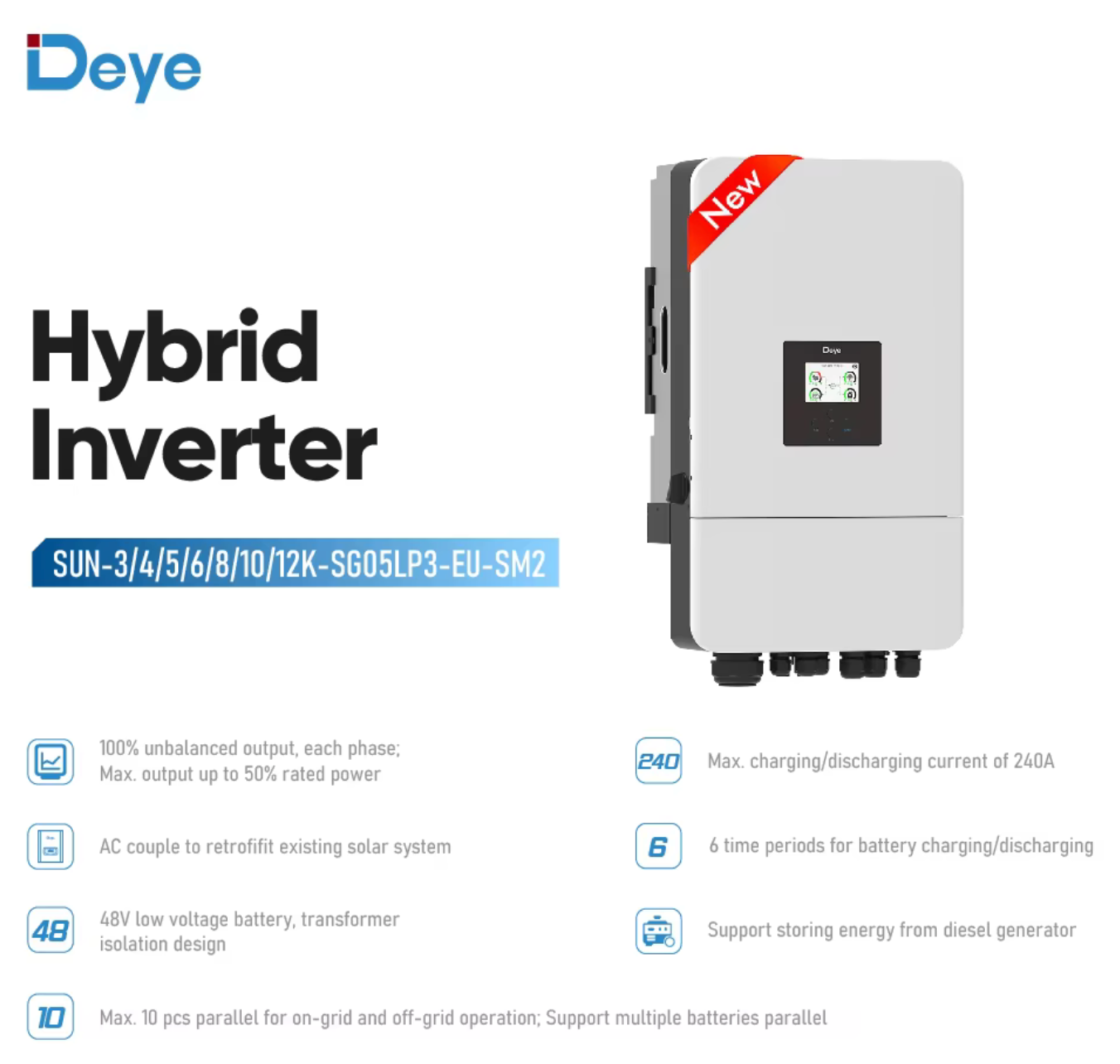

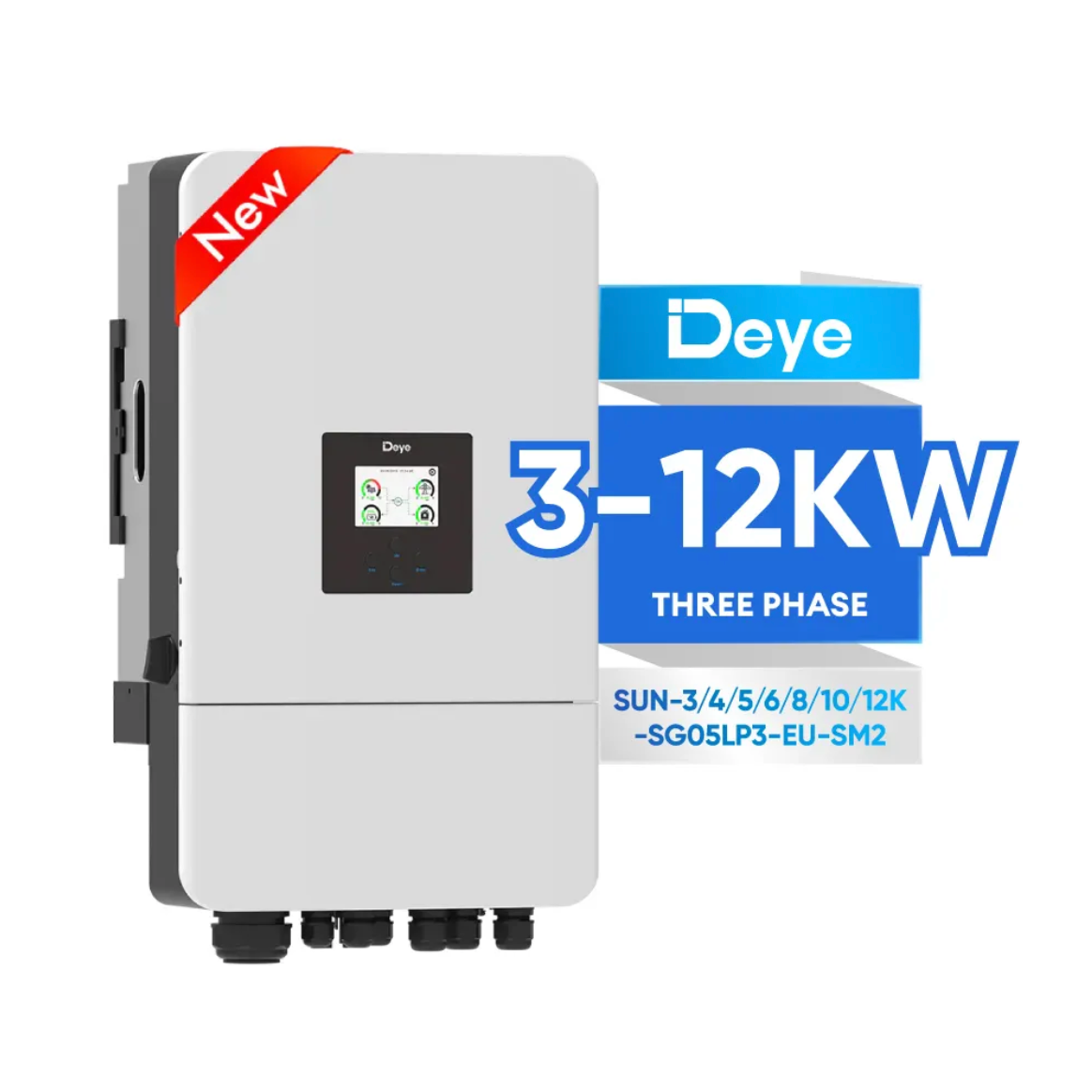

Deye - SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2, 3 Phase Hybrid Solar Inverter, 3kW–12kW
Contact for Price. Pricing varies based on the number of units and current market rates. For a personalized quote tailored to your project, please reach out to us!
Couldn't load pickup availability
Model: Deye
SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2
3 Phase Hybrid Solar Inverter | 3kW–12kW
Pure Power for Commercial & Large Residential Systems
The Deye SUN-3~12K-SG05LP3-EU-SM2 is a next-generation 3-phase hybrid solar inverter designed for maximum flexibility, scalability, and reliability. Ideal for on-grid and off-grid applications, this inverter supports both lithium-ion and lead-acid battery technologies and comes equipped with advanced protections, smart monitoring, and high PV input capacity—perfect for solar installations across Indonesia.
---
Key Features
- Rated Power Options: 3kW, 4kW, 5kW, 6kW, 8kW, 10kW, 12kW
- Battery Compatibility: Lead-acid & Lithium-ion (40V–60V)
- Max. PV Access Power: Up to 24,000W
- Max. Efficiency: 97.6%
- Euro Efficiency: 97.0%
- MPPT Efficiency: >99%
- Max. AC Passthrough: 45A (grid to load)
- Max. AC Output Power: Up to 12,000W
- Surge Power: 2x rated power (10s)
- Power Factor Range: 0.8 leading to 0.8 lagging
- Cooling: Intelligent Air Cooling
- Noise Level: ≤55 dB
- Ingress Rating: IP65 (Outdoor Ready)
- Topology: Transformerless (Non-Isolated)
---
Battery Specs
- Voltage Range: 40V–60V
- Max Charging Current: 70A–240A
- Max Discharging Current: 70A–240A
- Battery Input: 1
- Charging Strategy: Self-adaptive to BMS
---
PV Input Specs
- Max PV Access Power: 6,000W to 24,000W (model dependent)
- Max PV Input Voltage: 800V
- Start-Up Voltage: 160V
- MPPT Voltage Range: 200V–650V
- Rated PV Input Voltage: 550V
- Max PV Input Current: 20A + 20A
- Max PV Short Circuit Current: 30A + 30A
- MPP Trackers / Strings: 2 / (1+1)
---
AC Output Specs
- Rated AC Output Power: 3kW to 12kW
- Rated Voltage: 220/380V, 230/400V
- Grid Frequency: 50Hz/60Hz
- Grid Form: 3L+N+PE
- THDi: <3%
- DC Injection Current: <0.5% In
---
Protection & Safety
- Surge Protection: Type II (DC & AC)
- Integrated Protections:
- Reverse Polarity
- Overcurrent
- Overvoltage
- Short Circuit
- Arc Fault Detection (optional)
- Ground Fault
- Earth Fault
- RCD Detection
- Thermal Shutdown
- Insulation Monitoring
- Islanding Detection
- DC Input Switch
---
Monitoring & Connectivity
Communication: RS485, RS232, CAN
Remote Monitoring: WiFi / Bluetooth / GPRS / 4G / LAN (optional)
---
Product Details
- Cabinet Size: 386 × 660 × 250 mm (W x H x D)
- Weight: 35.2 kg
- Operating Temp: -40°C to +60°C (derating >45°C)
- Altitude: Up to 3000m
- Humidity: 0%–100%
---
Certifications & Standards
Grid Compliance: IEC 61727, IEC 62116, CEI 0-21, EN 50549, VDE-AR-N 4105, UNE 217002
EMC & Safety: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Overvoltage Categories: OVC II (DC), OVC III (AC)
---
Warranty
5–10 year warranty depending on installation site. Please refer to official warranty policy for full terms.
---
Included In The Box
-
1x Deye Hybrid Inverter
-
Wall Mounting Brackets
-
User Manual
- Quick Start Guide
---
