Deye - SE-G5.1 Pro-B – 5.12 kWh Low-Voltage LiFePO₄ Battery
Contact for Price. Pricing varies based on the number of units and current market rates. For a personalized quote tailored to your project, please reach out to us!
Couldn't load pickup availability
Brand: Deye
Model: SE-G5.1 Pro-B – 5.12 kWh Low-Voltage LiFePO₄ Battery
Why You’ll Like It
• Old-school reliability, new-school tech. LiFePO₄ chemistry (zero cobalt) means rock-solid safety and a 20-year service life if you cycle once a day.
• Stacks like plywood. One pack holds 5.12 kWh; bolt up to 64 packs on the same CAN/RS-485 loop for a giant 327 kWh bank—no DIP-switch puzzle.
• Built to shrug off tropical heat. Charges from 0 °C and keeps discharging down to –20 °C; happy all the way up to 55 °C with only natural convection cooling.

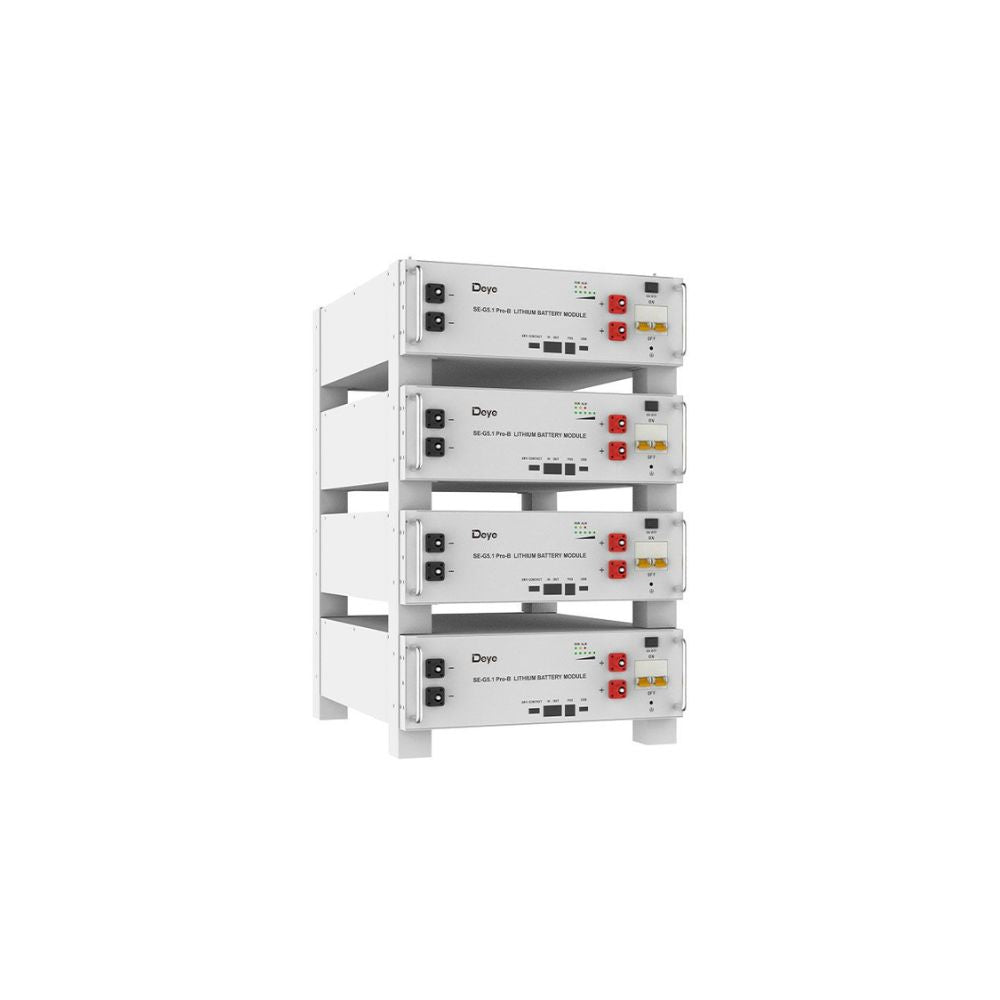

• Three mounting options included. Rack-mount (3 U, 19-inch), wall-mount, or floor-stack—brackets and power/comms looms ship in the box.
- Safety: LFP chemistry + advanced BMS monitoring
- Power: 51.2V | 100Ah | 5.12kWh output
- Scalability: Up to 64 units (327kWh total)
- Temperature Range: -20°C to 55°C
- Protection: IP20-rated enclosure
- Mounting: Wall, floor, or rack options
- Ten (10) year warranty
Technical Highlights
• 5.12 kWh nominal / 4.6 kWh usable (@ 90 % DOD)
• 51.2 V nominal, 100 Ah capacity
• Recommended 50 A charge/discharge; 100 A continuous; 150 A 2-minute surge for starting motors and inverter peaks
• ≥ 6 000 cycles to 70 % SOH (0.5 C, 25 °C)
• Dimensions 440 × 133 × 540 mm, about 45 kg—two-person lift
• IP20 enclosure, indoor use
• CAN 2.0 & RS-485 comms—plug-and-play with Deye SUN-S hybrids and most 48 V inverters

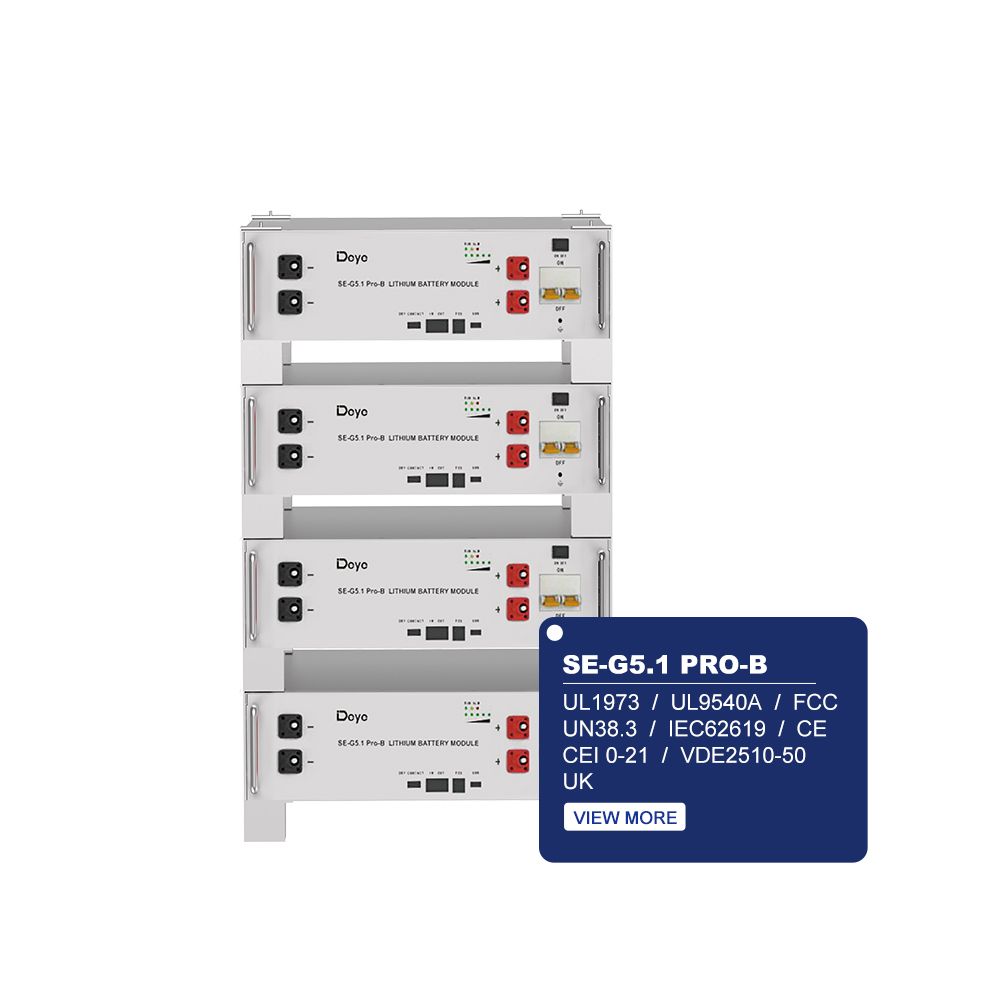

• Certifications: UN38.3, IEC 62619, VDE 2510-50, CE, FCC, UL 1973 & UL 9540A
What’s in the Box
• SE-G5.1 Pro-B battery module
• 1 × rack ears, 1 × wall/floor bracket kit and masonry anchors
• Parallel power + RJ-45 comm cables (150 mm)
• 1.5 m inverter lead set
• User manual & warranty card
Typical Use-Cases
• Hybrid solar + PLN: Charge when the sun’s free, discharge when PLN’s tariff jumps.
• Off-grid villas & BTS towers: Silent overnight power with a Deye or Victron 48 V inverter.
• Commercial demand-charge shaving: Parallel a battery wall behind a 50–100 kW PCS to stamp out peak spikes.
Order now and experience the next generation of energy storage technology with Deye.
---
From SOLAR.ID of Jakarta, Indonesia
Deye - SE-G5.1 Pro-B – 5.12 kWh Low-Voltage LiFePO₄ Battery - Datasheet
Professional Installation Available all over Indonesia
Professional solar panel installation ensures safety, efficiency, and compliance with warranties and regulations. Experts optimize performance, handle permits, and prevent damage, saving you time and maximizing energy output for long-term savings.
